Commissioning
65
Pos: 42.32 /Übersc hriften/Überschri ften 2/F-J/Gelenkwel le @ 0\mod_1199781879794_ 78.docx @ 34542 @ 2 @ 1
5.4 PTO shaft
Pos: 42.33 /Übersc hriften/Überschri ften 3/K-O/Längenanpa ssung @ 1\mod_12016876328 10_78.docx @ 53589 @ 3 @ 1
5.4.1 Length adjustment
Pos: 42.34 /BA/Sic herheit/Gelenkwelle/W arnung - Sich drehende Gel enkwelle_ohne Schwu ngradbremse @ 297\mod_14 12757898972_78.doc x @ 2333548 @ @ 1
Warning! - Rotating universal shaft!
Effect: Danger to life or serious injuries
• Before pushing the universal shaft onto the PTO shaft of the tractor, switch off PTO shaft,
turn off the engine and pull out the ignition key.
• Secure tractor and machine against unintentional rolling.
Pos: 42.35 /BA/Er stinbetriebnahme/Rundba llenpresse/Bil d Gelenkwelle @ 32\mod_1253 526913095_78.doc x @ 314076 @ @ 1
FOR00015
1
2
3

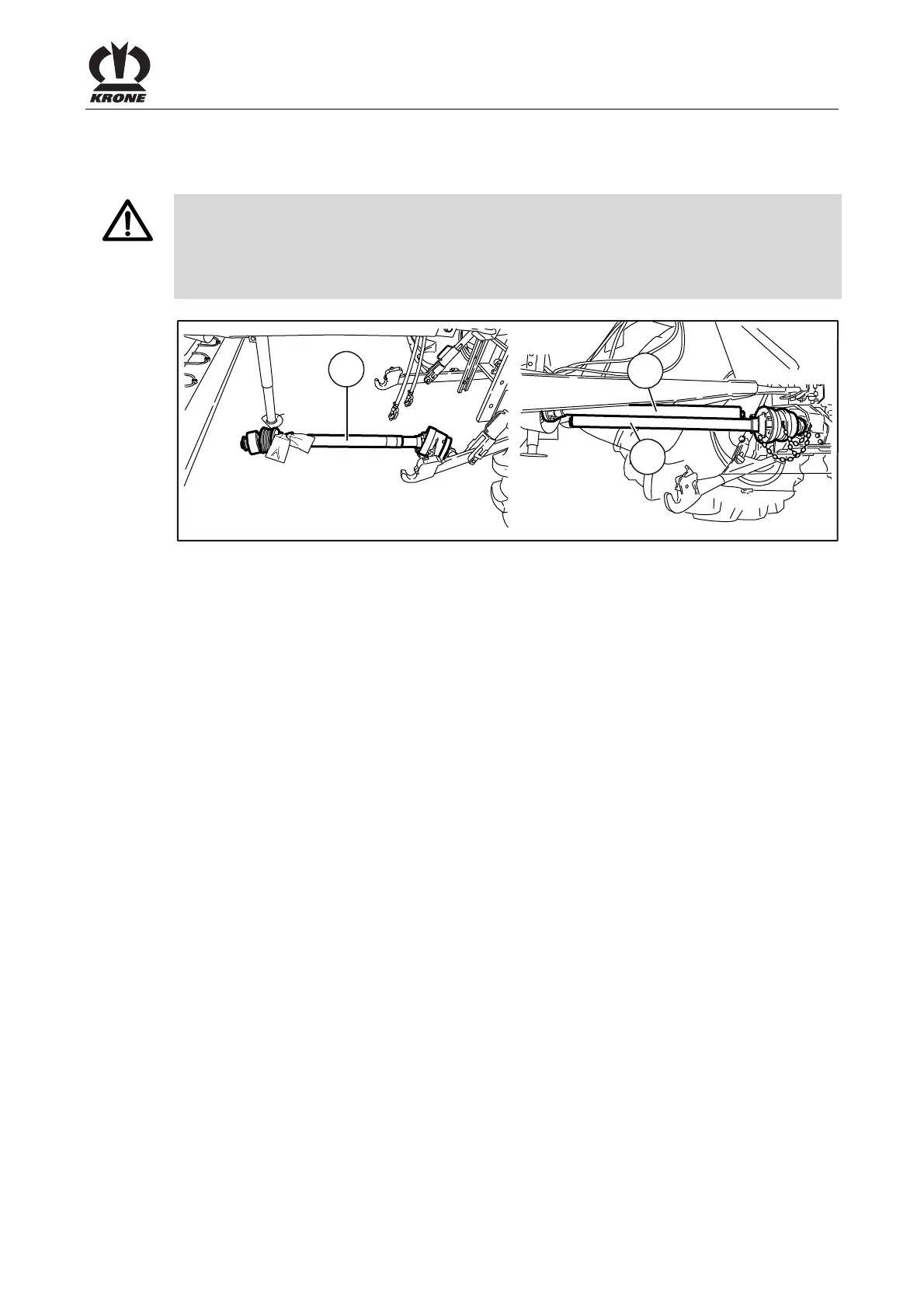

Fig. 34
Pos: 42.36 /BA/Er stinbetriebnahme/Gelen kwelle/Großpackenpr essen/Anpassen Gelenkwelle kürzeste S tellung @ 17\mod_123625783 4378_78.docx @ 204156 @ @ 1
To adapt the length of the universal shaft, hitch the machine onto the tractor. The shortest
position of the universal shaft is reached in close cornering.
Pos: 42.37 /BA/Er stinbetriebnahme/Gelen kwelle/Mähwerke/Lä ngenanpassung_ohne Pf ahlsicherung CF/CV @ 126\mod_134571214651 6_78.docx @ 1143295 @ @ 1
The length of the PTO shaft (1) must be adjusted.
• Disassemble the PTO shaft.
• Install each half (2) and (3) on the tractor and machine side respectively.
• Check the special section tubes and guard tubes.
• Shorten special section tubes and guard tubes to an extent that the PTO shaft can move
freely in the shortest operating position.
• For additional operating instructions refer to the operating instructions of the PTO shaft
manufacturer.
