Operation
245
Pos: 55.139 /Übersc hriften/Überschr iften 3/A-E/E/E instellung Abschneideposi tion @ 74\mod_13088305818 99_78.docx @ 658367 @ 33 @ 1
11.15.5 Setting Cut-off Position
Pos: 55.140 /BA/Bedienu ng /Rundballenpresse/ Netz-Garnbind ung/Abschneideposi tion einstellen CF/CV @ 74\ mod_1308828767840_78. docx @ 658310 @ @ 1
b
A
B
RPN00044
1
2
3

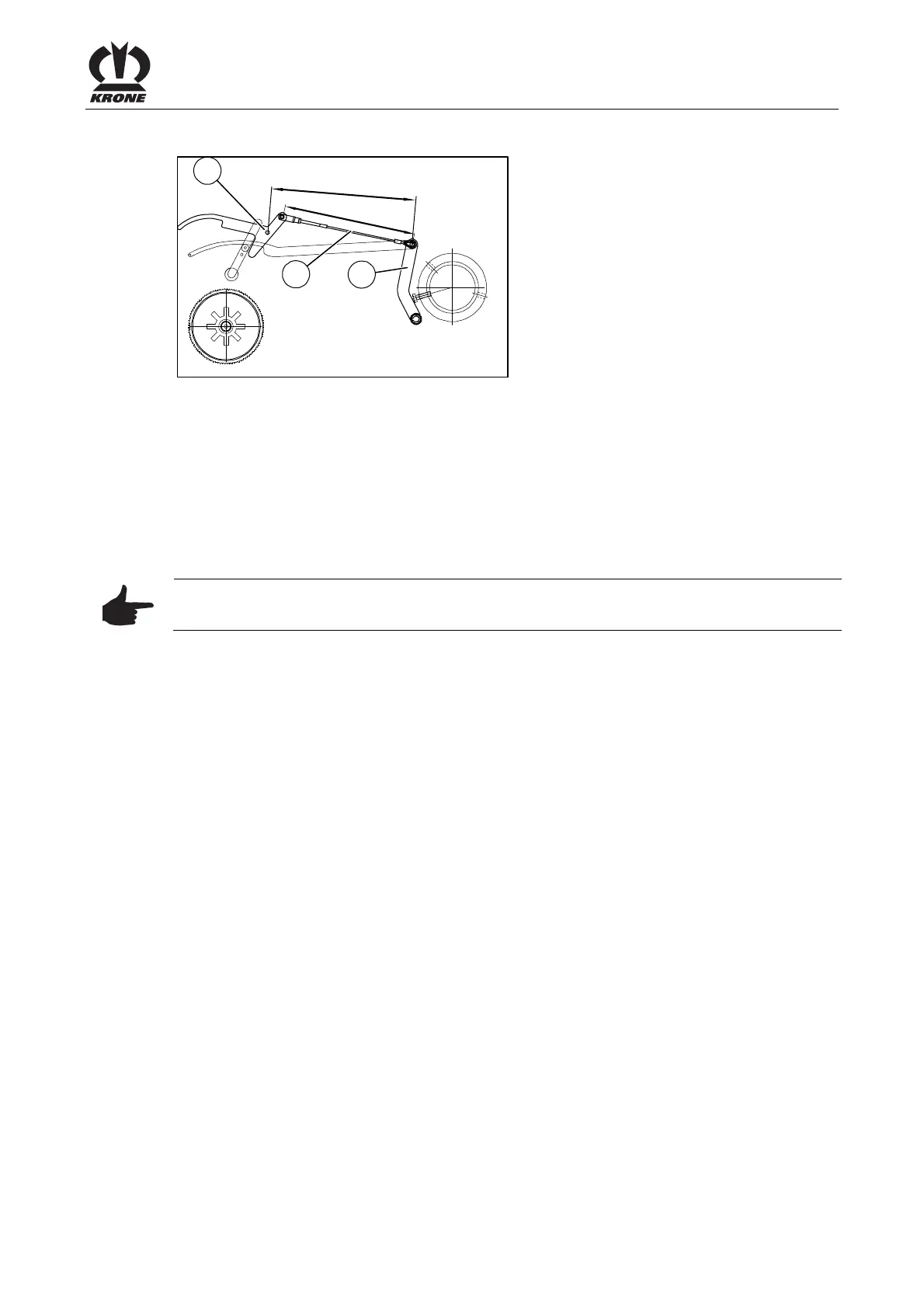

Fig. 187
The cut-off position has been reached, when the ratchet mechanism (1) is raised and dimension
A between the ratchet mechanism (1) and the adjusting lever (2) is A= 410 mm.
If this is not the case, please proceed as follows:
• Call menu “Manual sensor test” in the operation terminal
• Move the engine in over the control unit until dimension A between the pivot point of the
ratchet mechanism (1) and the adjusting lever (2) is A = 2 mm
If the dimension A = 410 mm is reached, save the cut-off position.
• Adjust the cable (3) to dimension B = 365 mm
Note
If the net is not cut off by practical use, the dimension must be set to 360 mm.
