5.3 Changing the Drawbar Height and Adjusting the Hitch
Pos: 42.21 /BA/Sic herheit/7. Gefahrenhin weise alt/Inbetriebn ahme/Gefahr - Unvorher gesehene Inbetri ebnahme_2 BiG Pack @ 17\mod_123625 5571519_78.doc x @ 204032 @ @ 1
DANGER! - Unexpected movements of the machine!
Effect: Danger to life, injuries or damage to the machine.
• Secure the machine against rolling away with wheel chocks and by applying the parking
brake
• Use suitable supporting blocks for supporting the machine
• There is a risk of crushing one's feet when cranking down the parking support
Pos: 42.22 /BA/Er stinbetriebnahme/Rundba llenpresse/Anpas sen des Reifenluftdr ucks Rundballenpress en @ 114\mod_133888160167 4_78.docx @ 1006469 @ @ 1
Note
Before aligning the machine and adapting the height of the drawbar, the tyre pressure must be
checked and adapted to the value for the existing tyre type which is recommended in the tyre
air pressure table (refer to chapter entitled “Maintenance”), if necessary.
Pos: 42.23 /Abkürzun gen /Abkürzungen sprac hneutral/Rundbal lenpressen/Compri ma CF 155 XC/Comprima CV 150 XC @ 83\mod _1317824011416_78.doc x @ 731880 @ @ 1
Comprima CF 155 XC/Comprima CV 150 XC
Pos: 42.24 /BA/Er stinbetriebnahme/Rundba llenpresse/Deic hselhöhe anpassen F_V @ 95\ mod_1328687994059_78. docx @ 800499 @ @ 1
RPN00068
x

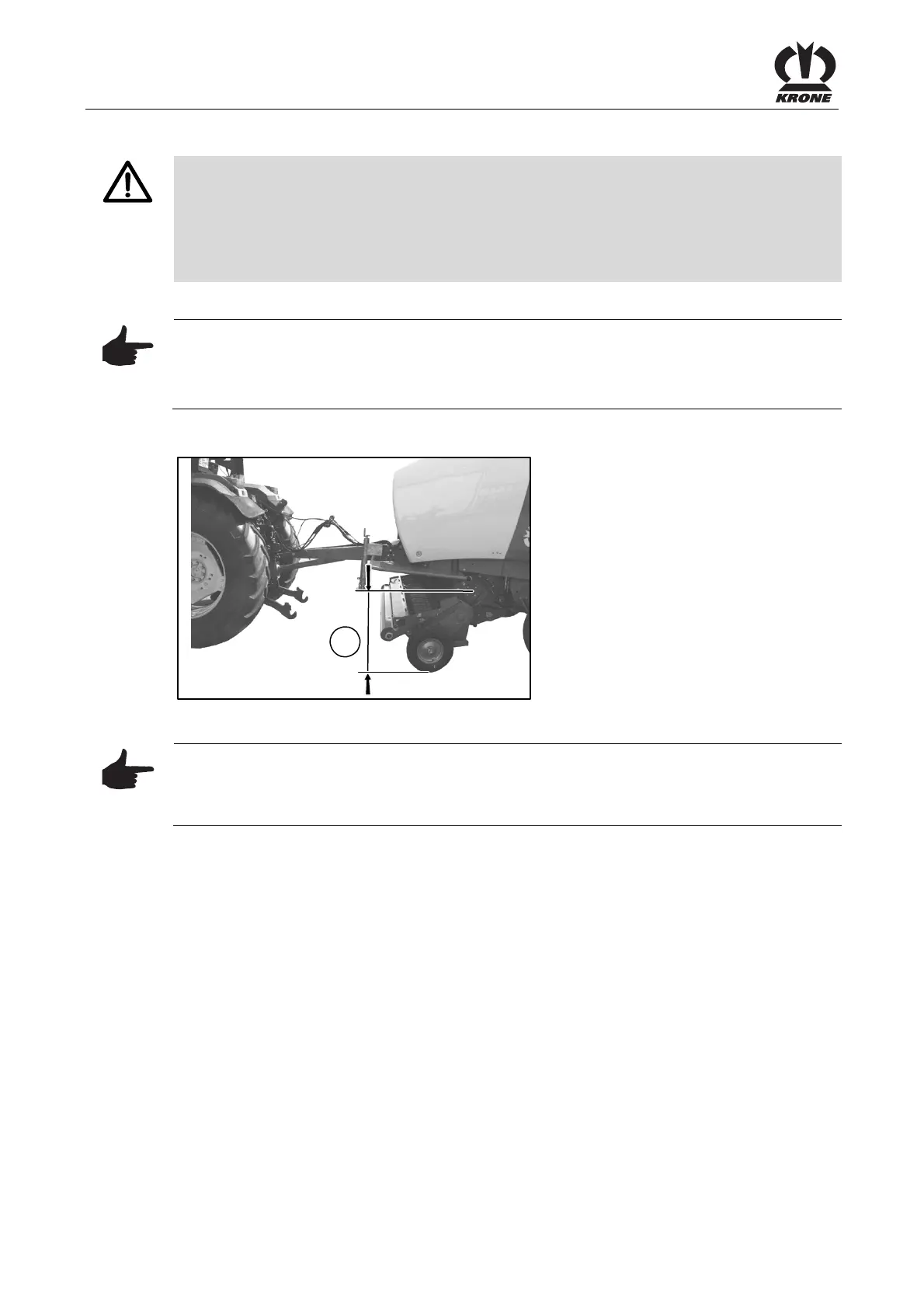

Fig. 31
Note
To guarantee optimum working, the machine must be hitched in a way that the dimension X is
approx. 700-750 mm (up to 800 mm in straw use). When hitched up, the dimension X must be
measured between the centre of the cutting roller and the ground.
