Commissioning
61
COM00311
5
7
6

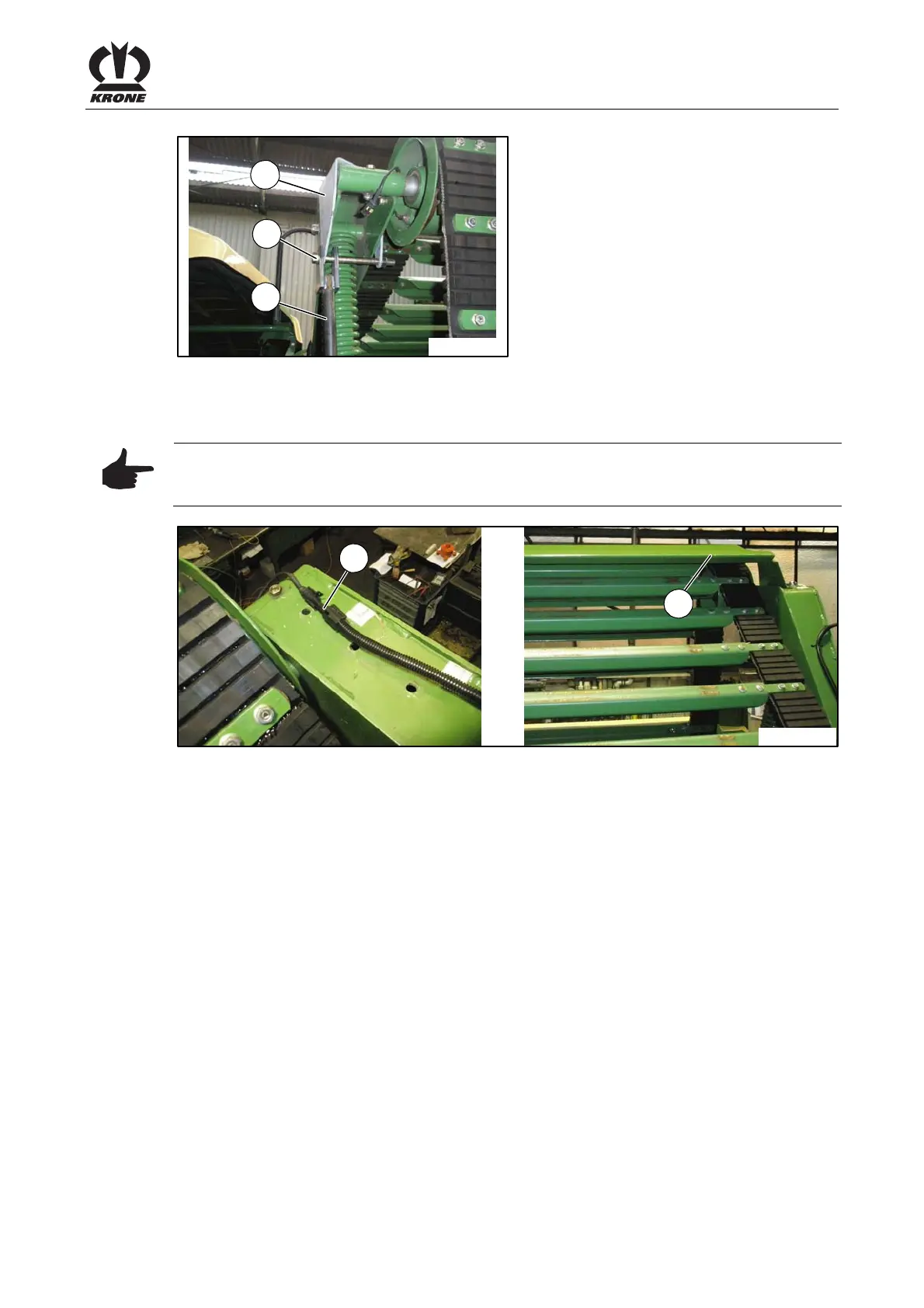

Fig. 29
• Remove the screw connection (5).
• Remove the connecting tube (6) and link (7).
Note
Dispose of all removed parts properly.
Reuse is not permitted!
COM00312
9
8
Fig. 30
• Connect the plug connection (8) for the sensor on the left side of the machine.
• Mount the supplied plate (9) on the upper deflection roller of the belt.
