13.15 Wrapping table chain
Pos: 59.105 /BA/W artung/Rundballenpres se/Wickeltischket te nachspannen_Bild @ 192\ mod_1382079438466_7 8.docx @ 1637639 @ @ 1
COM00344
2
1
1
3
3
4
Fig. 237
Pos: 59.106 /BA/W artung/Rundballenpres se/Wickeltischket te nachspannen_Te xt @ 188\mod_1380270794339 _78.docx @ 1613071 @ @ 1

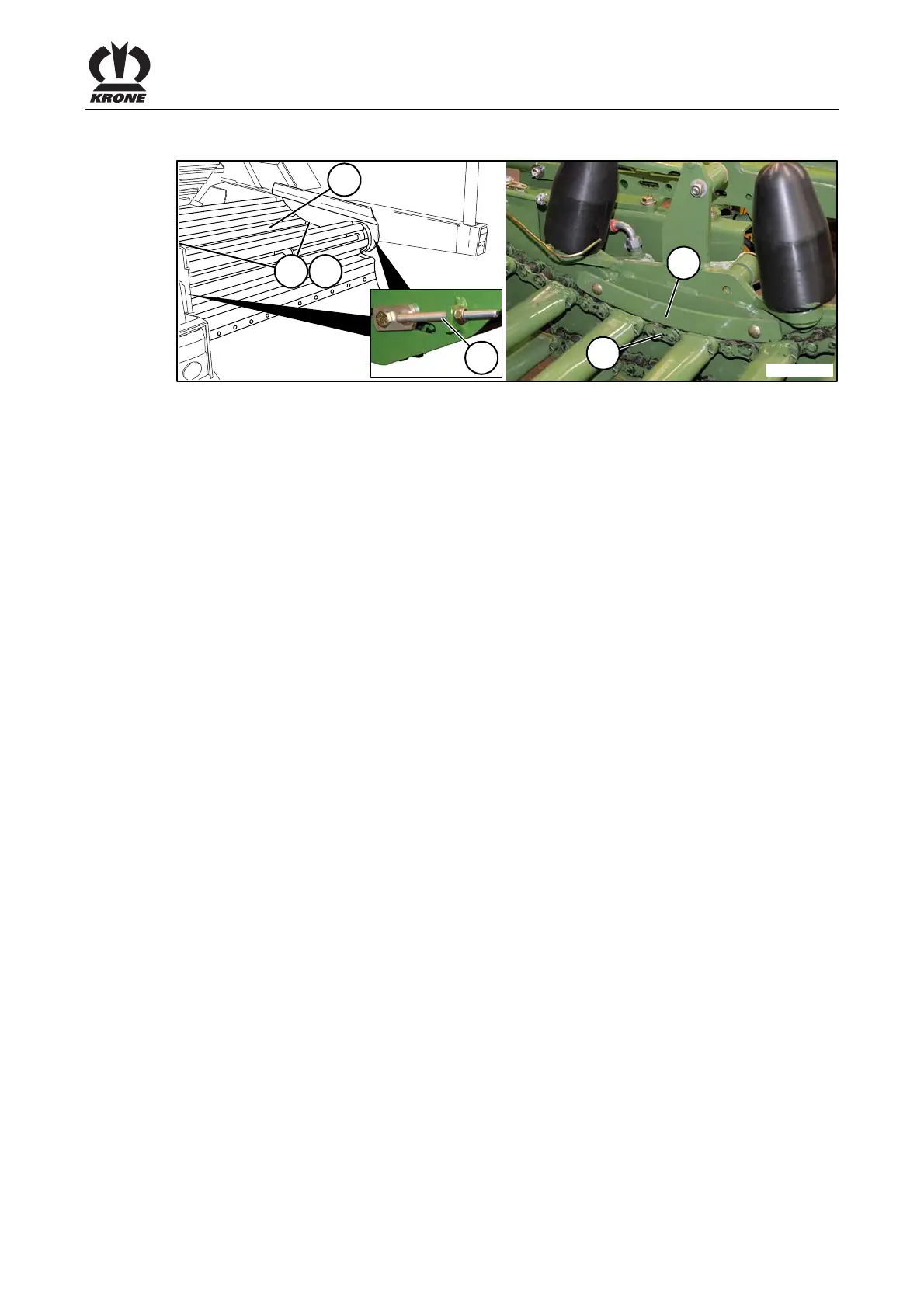

The wrapping table chain (1) must be tensioned on both sides of the wrapping table (2) so that it
is positioned on the chain guides (3).
• Always check the tension of the wrapping table chain before use.
If the wrapping table chain is positioned on the chain guides, the chain tension is correct.
If the wrapping table chain is not positioned on the chain guides:
• Retension the wrapping table chain using the chain tensioner (4).
