Krone Comprima CF 155 XC User Manual

Start-up
82
Pos: 44.39 /BA/Inf o-Center/CCI-I SOBUS-Terminal/Termina l anschließen (vorgerüs teteter ISO Schlepper) @ 172\mod_13705184777 99_78.docx @ 1480570 @ 3 @ 1
6.6.2 Connecting the Terminal (on tractors with integrated ISOBUS system)
6
5
1
2
3
4
CC00014
1
4
7
3
6
9
7
9
10
11
13
12
5
14
8

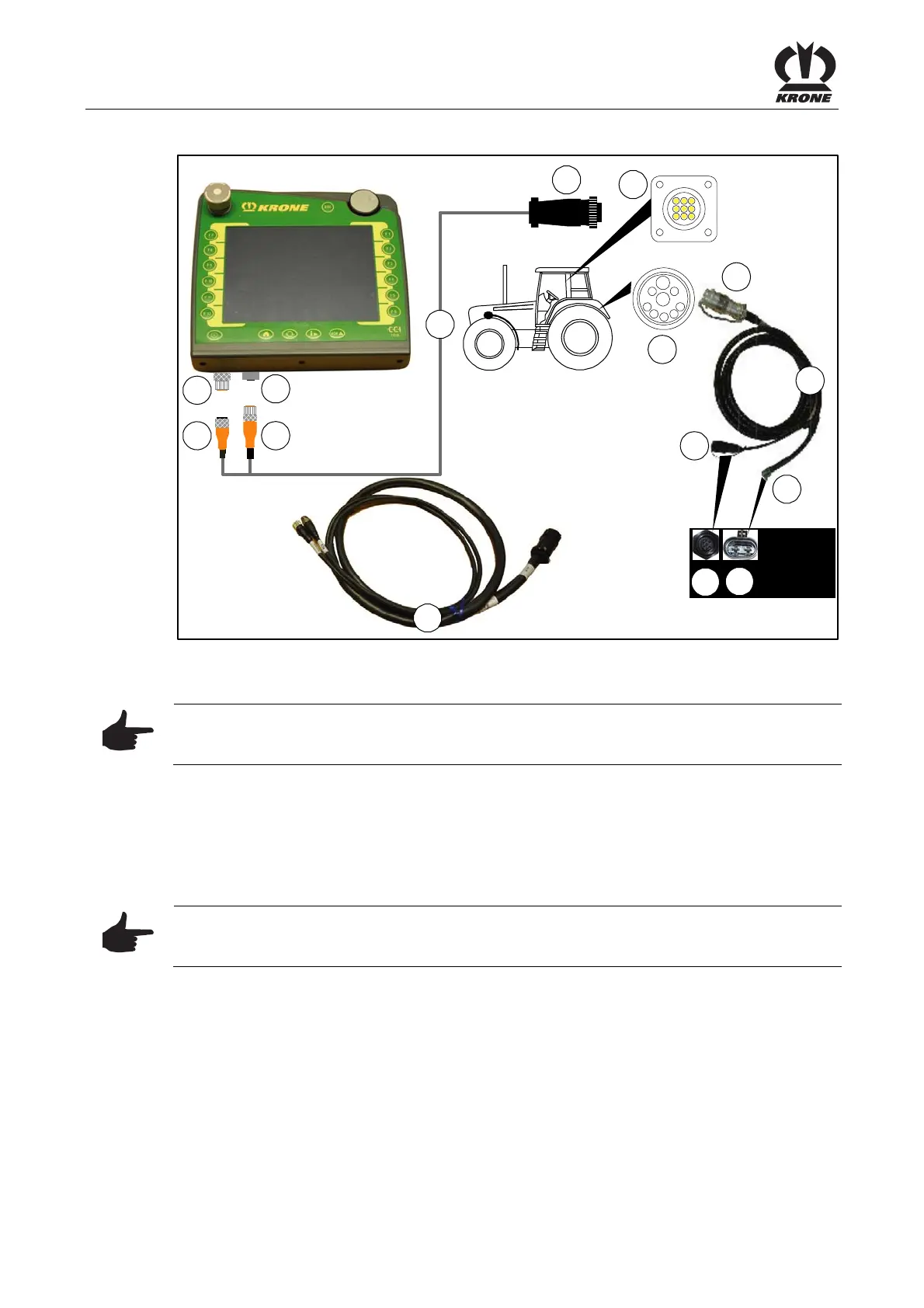

Fig. 48
Connection terminal to tractor
Note
The terminal is connected to the tractor via a special cable set (5) which can be ordered by
stating the KRONE article no. 20 081 223 0.
• Connect plug (2) of cable set (5) with socket (1) (CAN1-IN) of the terminal.
• Connect plug (4) of cable set (5) with socket (3) (CAN1-out) of the terminal.
• Connect ISO plug (6) (9-pole) of cable set (5) with the ISO socket (7) (9-pole) located in the
tractor cabin.
Connection tractor to machine
Note
The tractor is connected to the machine via cable set (14) which can be ordered by stating
KRONE article no. 20 080 384 0.
• Connect ISO-plug (9) (9-pole) of cable set (14) with the outer ISO socket (8) (9-pole) on
tractor side.
• Connect plug (10) (7-pole) of cable set (14) with socket (11) (7-pole) of the machine.
• Connect plug (12) (2-pole) of cable set (14) with socket (13) (2-pole) of the machine.
