4.7.4 Secure the machine against the possibility of rolling back.
KR-1-081
1

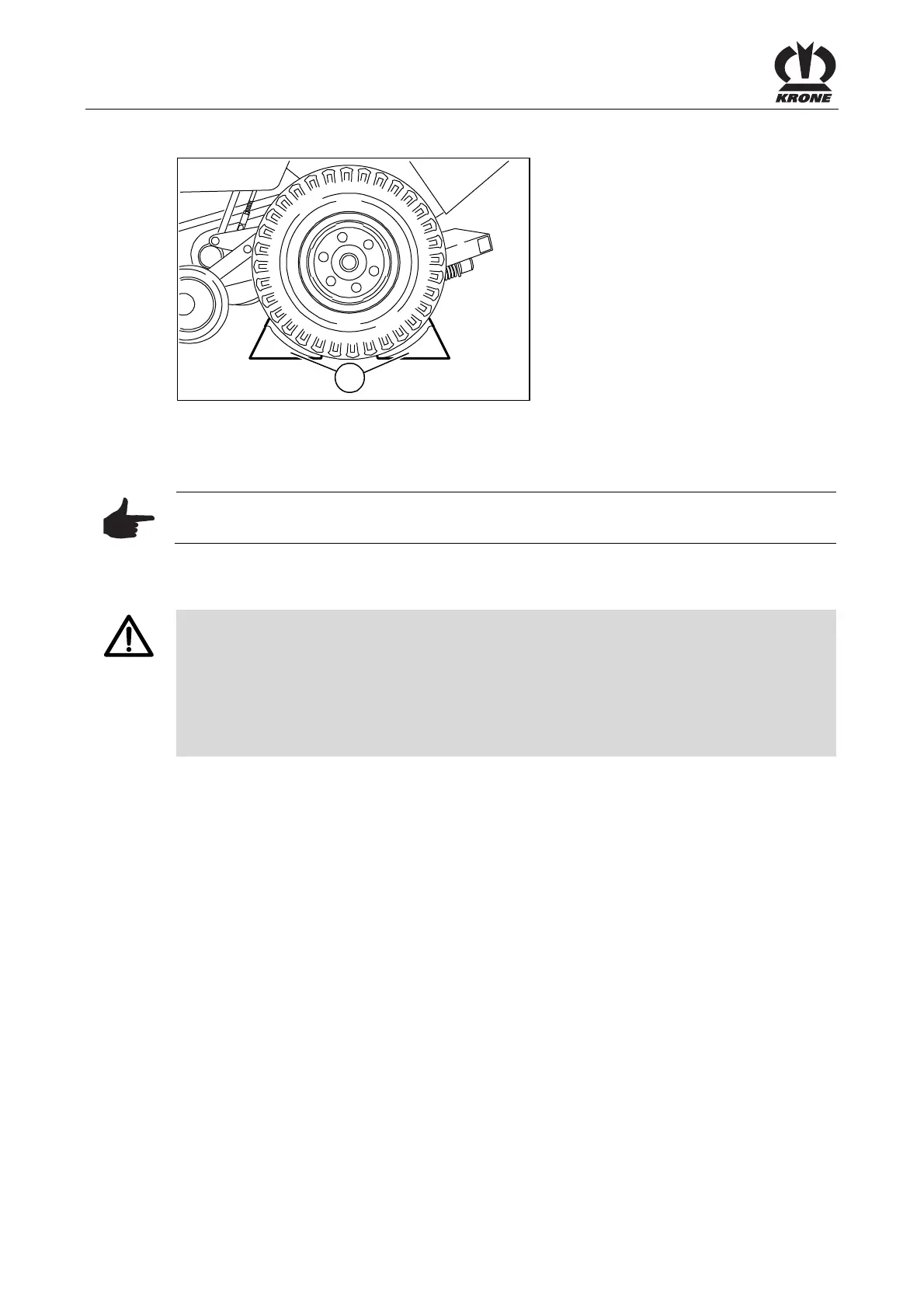

Fig. 14
Pos: 38.24 /BA/Fahren und Transport/Rundba llenpresse/Text Unter legkeile vor und hinter Rad @ 161\mod_1365673279477_ 78.docx @ 1416578 @ @ 1
• To prevent the disconnected machine from rolling back, lay wheel chocks (1) in front of and
behind the same wheel.
Note
On machines with coaster/steering axle, make sure that a wheel on the front axle is secured.
Pos: 38.25 /Übersc hriften/Überschri ften 3/A-E/A/Anschlagp unkte @ 168\mod_1368430 700205_78.doc x @ 1453905 @ 33 @ 1
4.7.5 Stop Points
Pos: 38.26 /BA/Sic herheit/7. Gefahrenhin weise alt/War nung - Anheben @ 168\mod_1368433456 450_78.docx @ 1454049 @ @ 1
WARNING!
Danger from falling loads!
• Never step or stay under suspended loads!
• Maintain an adequate safety distance from suspended loads.
• Before transportation, compare load capacity of slings and cranes and choose
transportation equipment with a sufficient degree of safety and lifting capacity.
• Prevent strong impacts and make sure that the machine does not become wedged!
Pos: 38.27 /BA/W artung/Rundballenpres se/Anheben der Maschine CF/ CV @ 75\mod_13093411876 14_78.docx @ 662073 @ 3333 @ 1
4.7.6 Lifting Eyes
The machine is equipped with four suspension points:
• Two suspension points are located right and left on the top on the frame of the wrapping
mechanism
• Two suspension points are located next to the floor conveyor (right and left upper machine
side)
4.7.7 Raise
• Use a lifting traverse with a minimum load-bearing capacity (depending on the permitted
gross weight of the machine) (refer to Chapter entitled Introduction “Identification”)
• Close the tailgate
• Swivel the parking support (parking jack) into transport position
• Lift the pick-up
• Make sure that all safety devices are locked
• Attach the chains of the lifting traverse to the four suspension points of the presse
• Make sure that the hooks of the chains are attached correctly to the suspension points
