11.17 Blockage Due to Jammed Crop
Pos: 55.158 /BA/Sic herheit/8. Vorausset zungen/Handlungsan weisung für alle Maschi nen/Handlungsanweisu ng: Maschine still setzen und sichern @ 274\ mod_1404365253849_78.doc x @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 55.159 /Abkürzu ngen /Abkürzungen sprac hneutral/Rundbal lenpressen/Compri ma CF 155 XC/Comprima CV 150 XC @ 83\mo d_1317824011416_78. docx @ 731880 @ @ 1
Comprima CF 155 XC/Comprima CV 150 XC
Pos: 55.160 /BA/Bedienu ng /Rundballenpresse/ Bild Blockade Pressg ut @ 74\mod_13091640206 96_78.docx @ 659387 @ @ 1
CPK00221_1
1
2
CPK00225_2
3

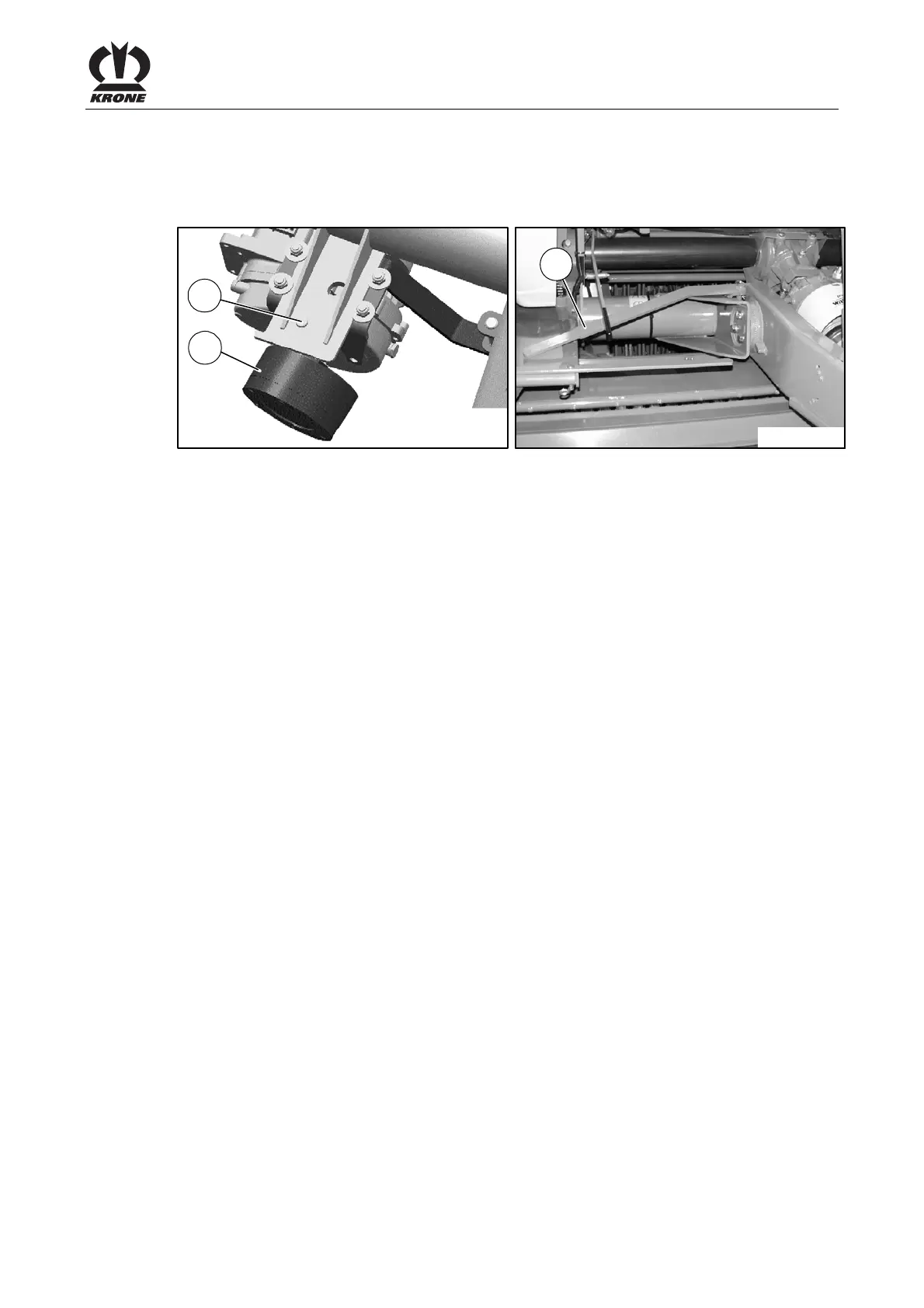

Fig. 191
Pos: 55.161 /BA/Bedienu ng /Rundballenpresse/ Blockaden entfer nen @ 74\mod_1309164597776 _78.docx @ 659415 @ @ 1
Remove blockages of the machine due to jammed crop:
• To uncouple, remove the cotter pin and bolt (1) for the slip-on gear (2)
• Use a lever (3) to pull out the slip-on gear (2) and disconnect with the bolt
• Switch on tractor PTO
• Open tailgate and remove blockage
• Close tailgate again
• Switch off tractor PTO
• Insert the slip-on gear (2) again and secure with bolt and cotter pin (1)
