Remove blockages of the machine due to jammed crop:
Pos: 55.166 /BA/Bedienu ng /Rundballenpresse/ Teil 2: Aufsteckge triebe umsetzen (Nur für X-treme Maschinen) @ 227\ mod_1392795870876_78. docx @ 1829841 @ @ 1

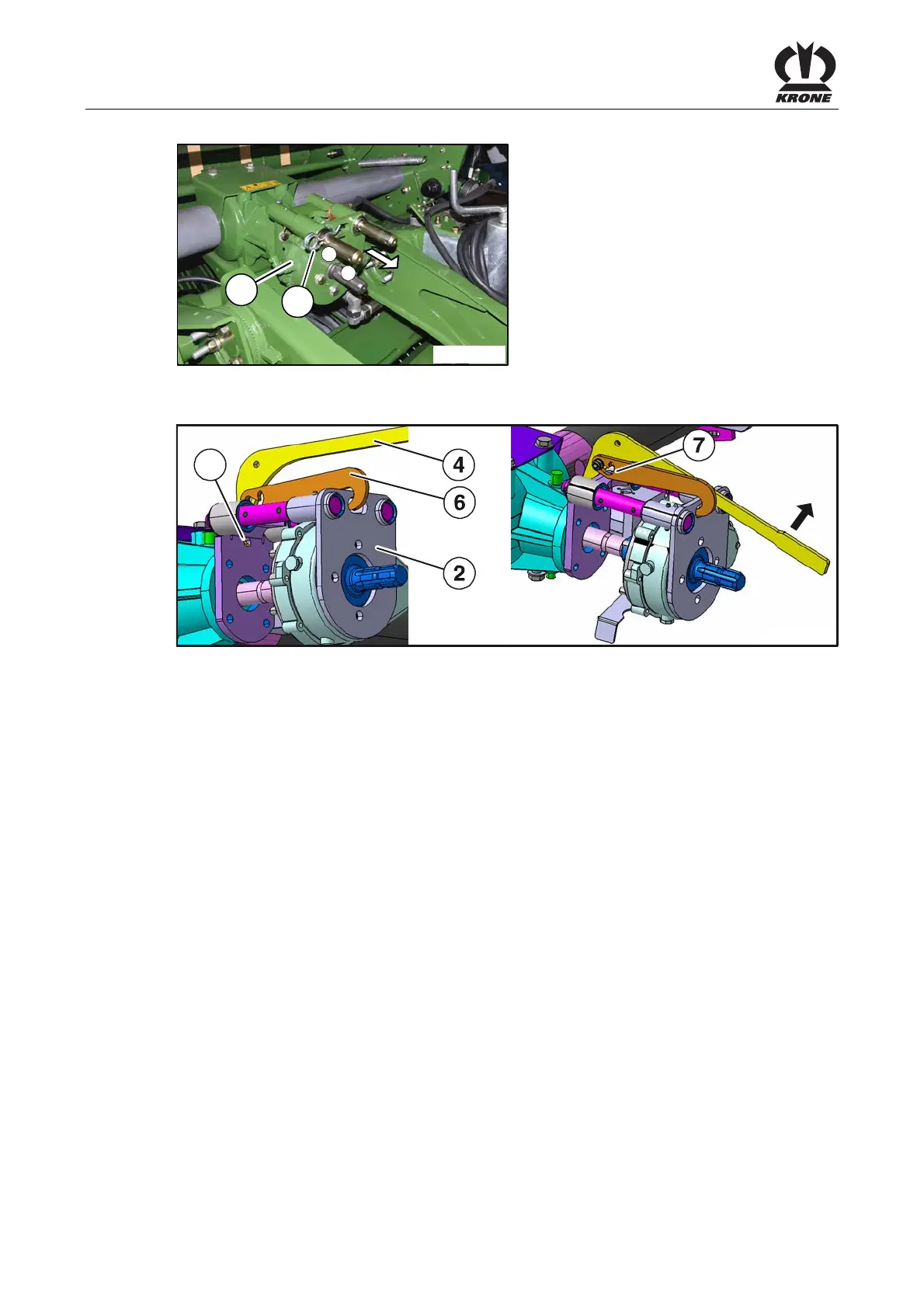

HDC00087
5
Fig. 193
• Hook hand lever (4) into the bore hole (5) and hook (6) into the oblong hole of the slip-on
gear (2). The hand lever can be readjusted in the oblong hole (7) of the hook (6), if
necessary.
• Push the slip-on gear (2) into position (a) by using hand lever (4) and secure with cotter pin
(1).
• Remove auxiliary device and put it down in the twine box.
