4.7.2 Attaching the safety cable
Pos: 38.17 /BA/Inbetr iebnahme/Festste llbremse/Handbremse mi t Seil Bild Comprima_For tima @ 295\mod_14119926 62492_78.docx @ 231576 7 @ @ 1
KWT20026 COM00367
Fig. 12
Pos: 38.18 /BA/Inbetr iebnahme/Festste llbremse/Sicher ungsseil betätigen KW T 2000 @ 289\mod_1410252873946 _78.docx @ 2286392 @ @ 1

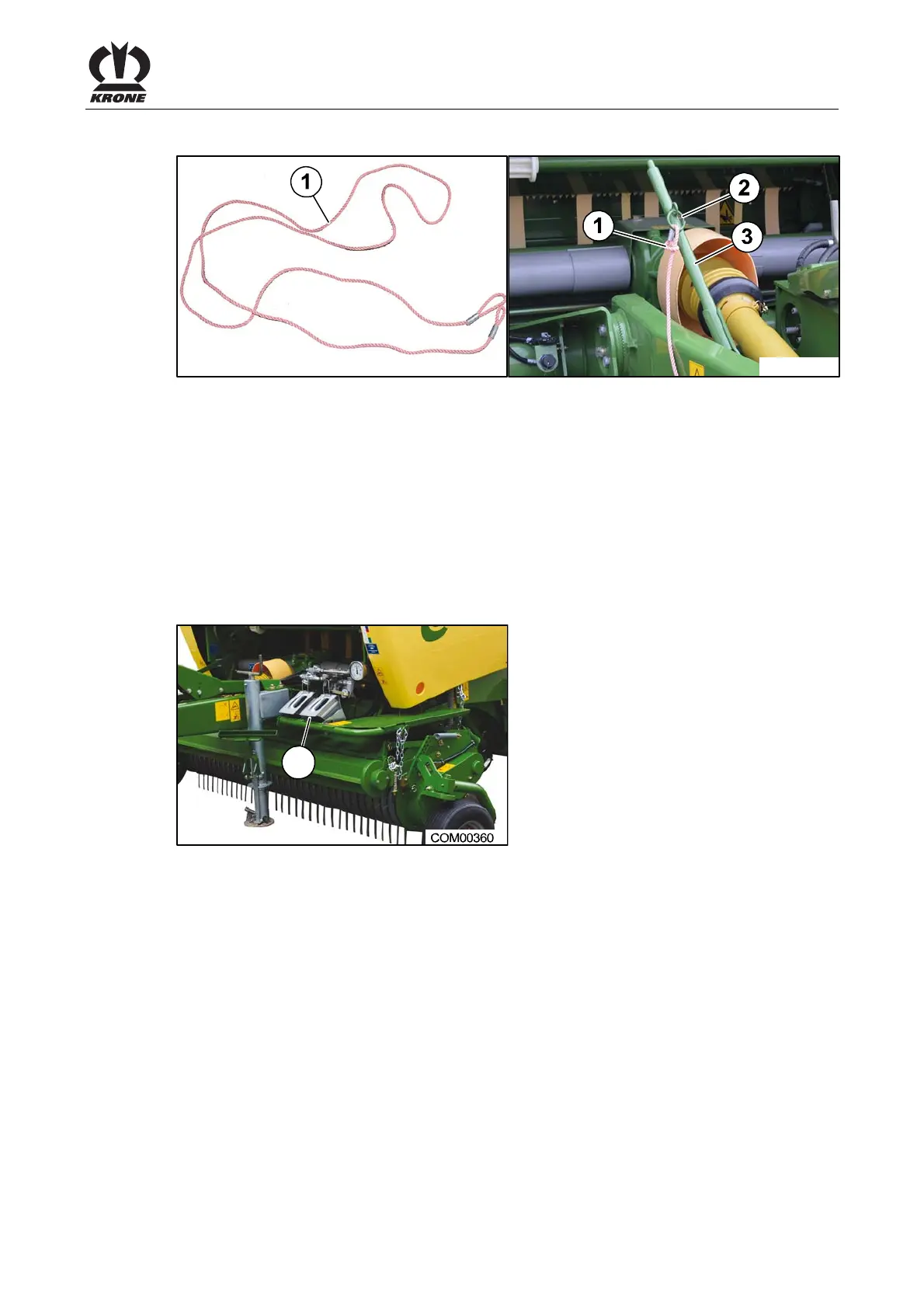

The safety cable (1) applies the parking brake (3) if the machine breaks away from the tractor
while it is driving.
Attaching the safety cable to the machine:
• Attach the safety cable to the parking brake. To do this, pull the safety cable through the
small loop on the cable and through the ring (2).
Attaching the safety cable to the tractor:
• Attach the other end of the safety cable to a suitable point at the rear of the tractor.
Make sure that the cable cannot slip or become detached.
Pos: 38.19 /Übersc hriften/Überschri ften 3/U-Z/Unterlegkei le @ 33\mod_125420255 5660_78.docx @ 318451 @ 33 @ 1
4.7.3 Wheel chocks
Pos: 38.20 /BA/Fahren und Transport/Rundba llenpresse/Bild Unter legkeile Compri ma neu @ 292\mod_1411049005397_ 78.docx @ 2302669 @ @ 1
1
Fig. 13
Pos: 38.21 /BA/Fahren und Transport/Rundba llenpresse/Text Pos. Unterlegkeile Compri ma F/V x-treme @ 292\mod_1411 104706771_78.doc x @ 2303581 @ @ 1
The wheel chocks (1) are kept in a holder at the front left beside the drawbar. Each one is
locked in position in the holder by a spring clip.
