11.3.1.2 Assembly of Additional Ejector Plates in the Tailgate
Pos: 55.34 /Abkürzun gen /Abkürzungen sprac hneutral/Rundbal lenpressen/Compri ma CF 155 XC_fett @ 66\mod_1302006 789716_78.docx @ 593531 @ @ 1
Comprima CF 155 XC
Pos: 55.35 /BA/Bedienun g /Rundballenpresse/ Bild Anlagebleche montieren Comprima F125/ 155 @ 137\mod_1353912745 760_78.docx @ 1222811 @ @ 1
RPN00107_1
1
2
3

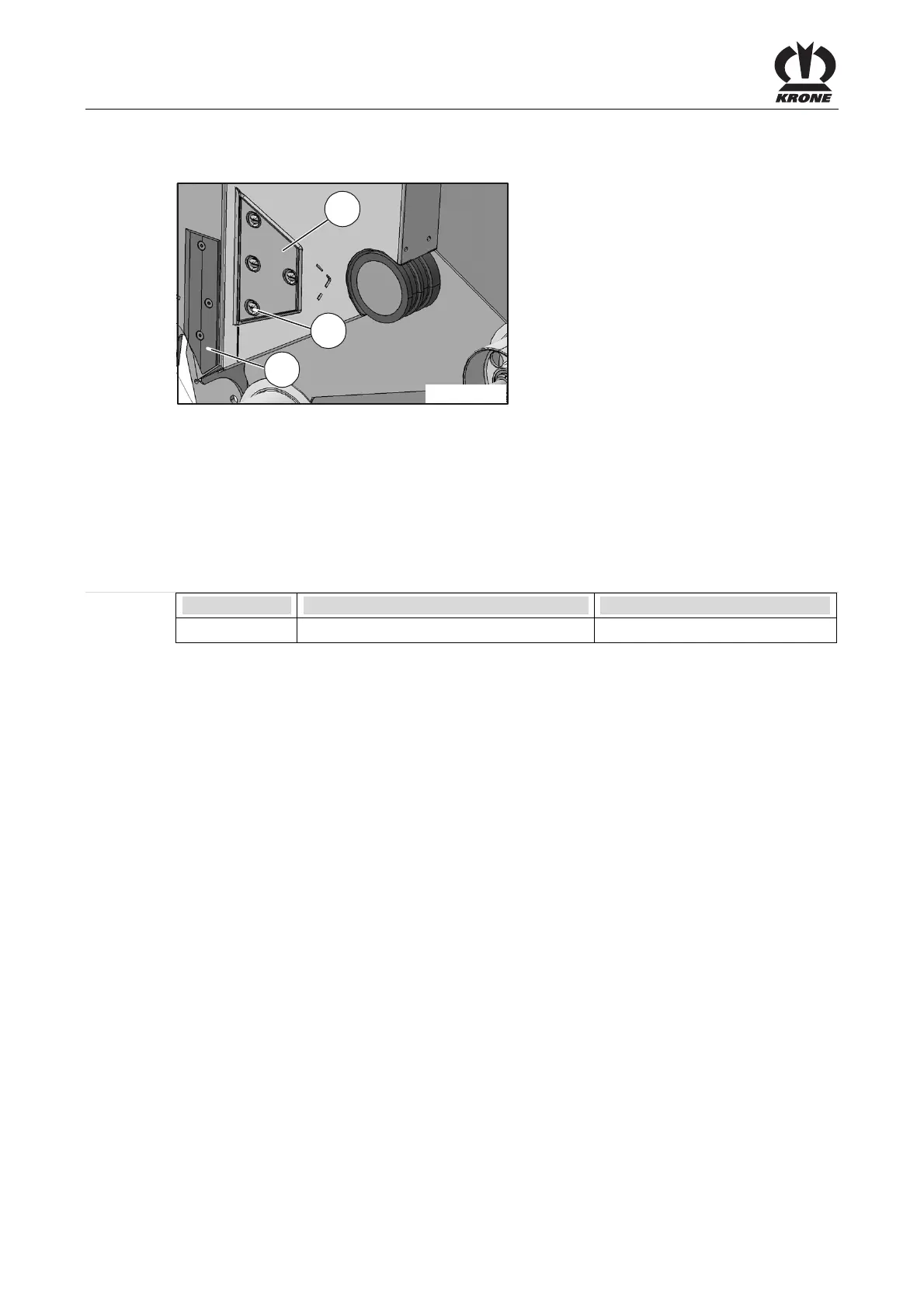

Fig. 155 View (closed bale chamber)
Pos: 55.36 /BA/Bedienun g /Rundballenpresse/ Text Anlagebleche m ontieren alle Maschinen @ 137\ mod_1353912825978_ 78.docx @ 1222840 @ @ 1
If the completed bales do not fall out of the front bale chamber, two ejector plates (1) can be
assembled right and left in the tailgate of the machine.
• Install the ejector plates (1) with the screws (2) on the insides of the bale chamber into the
existing bore holes.
• If the completed bales do even not fall out of the front bale chamber after having installed
the ejector plates (1), remove the sliding plates (3) from the machine housing right and left.
The ejector plates (1) can be ordered with suitable screws from KRONE spare part storage by
stating the following spare parts no.:
Pos: 55.37 /BA/Bedienun g /Rundballenpresse/ Tabelle Ersatztei le Anlagebleche F125/ 155 @ 137\mod_135359371 4768_78.docx @ 1221214 @ @ 1
Units Spare part Spare parts no.
2 Ejector plate 2754790
