6.17 Moving the Bale Turner into Transport Position
Danger! – Transport / road travel
Effect: Danger to life, serious injuries or serious damage to the machine.
• The bale turner must be swivelled up into transport position for transport / road travel.
• Make certain that the locking bar (12) is in pos. (I) in transport position and secured with
bolt and cotter pin.
1
12
11
I
II
a
I
II
12
11
13

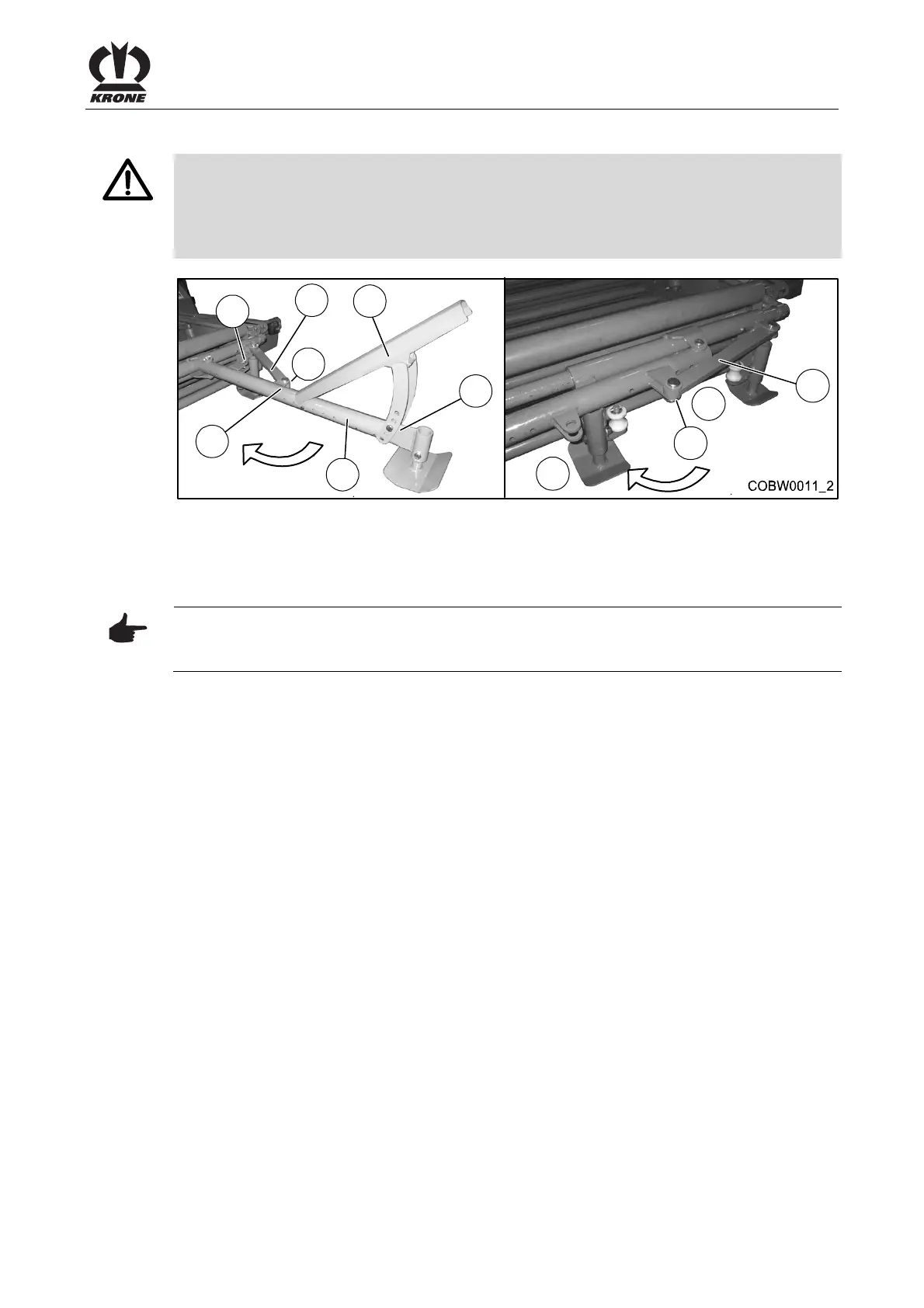

Fig. 59
• Swivel the locking bar (12) out of position (I) by removing the bolt (11).
• Fold in bale turner (1).
• Swing locking bar (12) into position (I) and secure with bolt, washer and cotter pin (11).
Pos: 44.73 /BA/Er stinbetriebnahme/Rundba llenpresse/Bal lenwender/Hinweis Str aßenfahrt Ballen wender @ 45\mod_127727816 3234_78.docx @ 413683 @ @ 1
Note
During road travel the baffle plate (13) must always be folded out, otherwise the left rear light
would be covered.
