Maintenance
297
Pos: 59.83 /Übersc hriften/Überschri ften 3/A-E/A/Aufstec kgetriebe @ 75\mod_130942 7880457_78.doc x @ 663208 @ 33 @ 1
13.10.4 Slip-on Gear
Pos: 59.84 /BA/W artung/Rundballenpres se/Bild Aufsteckgetr iebe CF/CV HD @ 100\mod_1330429 963544_78.doc x @ 893812 @ @ 1
HDC00028
1
3
4
2

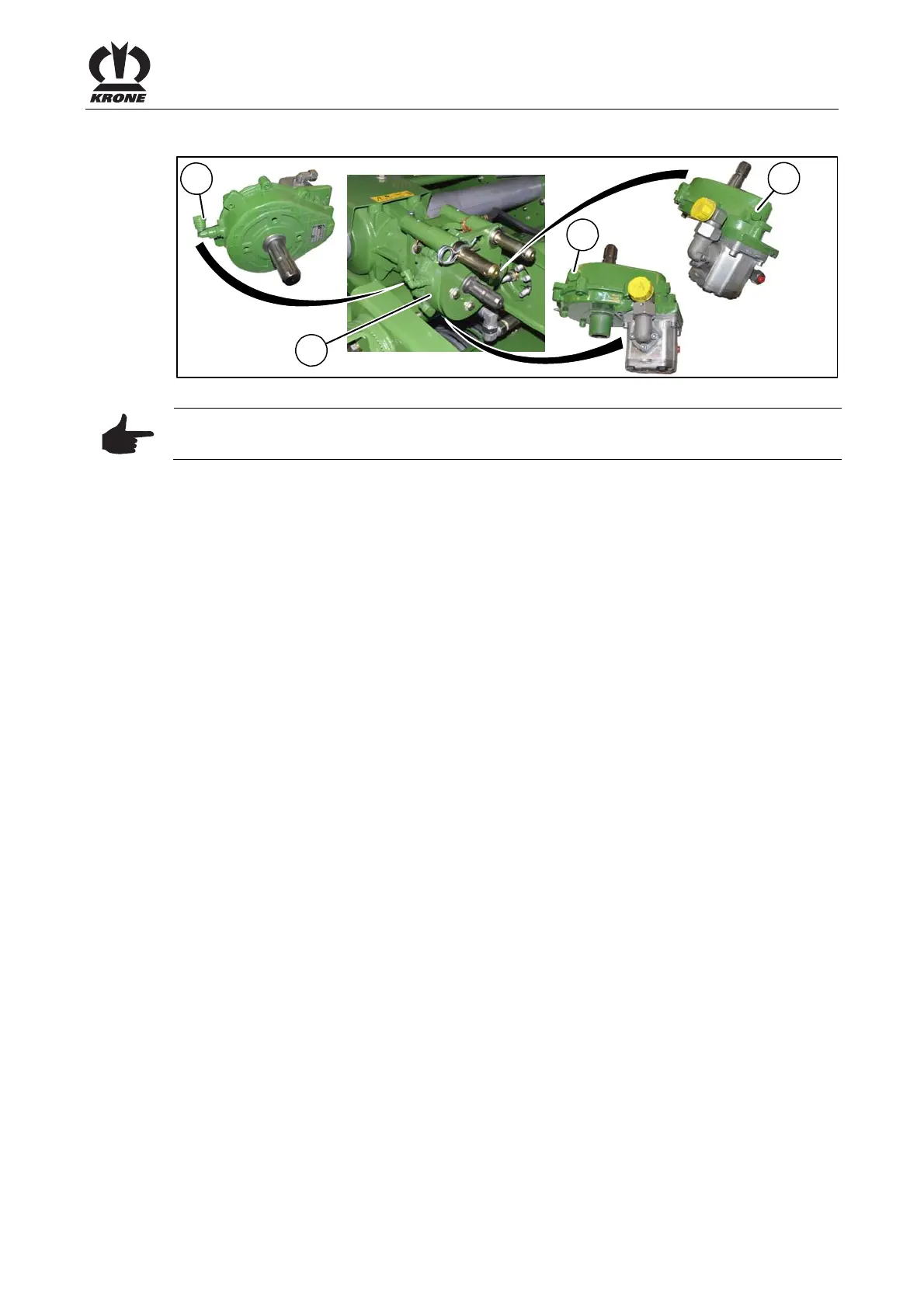

Fig. 232
Pos: 59.85 /BA/W artung/Hinweis - Ölstandskon trolle und Ölwechsel bei waagerechter Stel lung der Maschine vorneh men @ 12\mod_1224746945841 _78.docx @ 153501 @ @ 1
Note
Perform oil level check and change the oil while the machine is in a horizontal position!
Pos: 59.86 /BA/Sic herheit/8. Voraussetz ungen/Handlungsan weisung für alle Maschi nen/Handlungsan weisung: Maschine stills etzen und sichern @ 274\mod_1404365253849_78.doc x @ 2065151 @ @ 1
Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 59.87 /BA/W artung/Ölkontrolle_Wec hsel/Ölkontroll e_ALT/Ölkontrolle Kon trollschraube (2) @ 34\mod_1256043174971_7 8.docx @ 325520 @ @ 1
Oil level check:
For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
Unscrew the inspection screw (2).
The oil level must reach up to the control hole.
If necessary, top up the oil (SAE 90)
Pos: 59.88 /BA/W artung/Ölkontrolle_Wec hsel/Ölkontroll e_ALT/Kontrollschr aube (2) eindrehen @ 75\mod_13 09426413971_78.doc x @ 663180 @ @ 1
Screw in the inspection screw (2)
Pos: 59.89 /BA/W artung/Ölkontrolle_Wec hsel/Ölwechsel_AL T/Ölwechsel Version 9 @ 75\mod_1309432531814_ 78.docx @ 663264 @ @ 1
Oil Change:
For time intervals, see Chapter entitled "Oil Level Check and Oil Change Intervals on the
Gearboxes”
Unscrew oil drain plug (2) and inspection screw (3)
Collect the oil in a suitable container
Screw in the oil drain plug (2)
Top up the oil at the oil filler neck (4) up to the control drill bore
Pos: 59.90 /BA/W artung/Ölkontrolle_Wec hsel/Ölkontroll e_ALT/Kontrollschr aube (2) eindrehen @ 75\mod_13 09426413971_78.doc x @ 663180 @ @ 1
Screw in the inspection screw (2)
