Maintenance
328
Pos: 59.190.18 /Übersc hriften/Übersc hriften 3/A-E/D /Druckluftbehälter @ 34\mo d_1255593348281_78. docx @ 324372 @ 3 @ 1
13.20.3 Compressed-air reservoir
Pos: 59.190.19 /BA/W artung/Druckluftbeh älter/Druckluftb ehälter Bild CF/CV @ 76\ mod_1310031671148_78. docx @ 666415 @ @ 1
CP102170
1
2

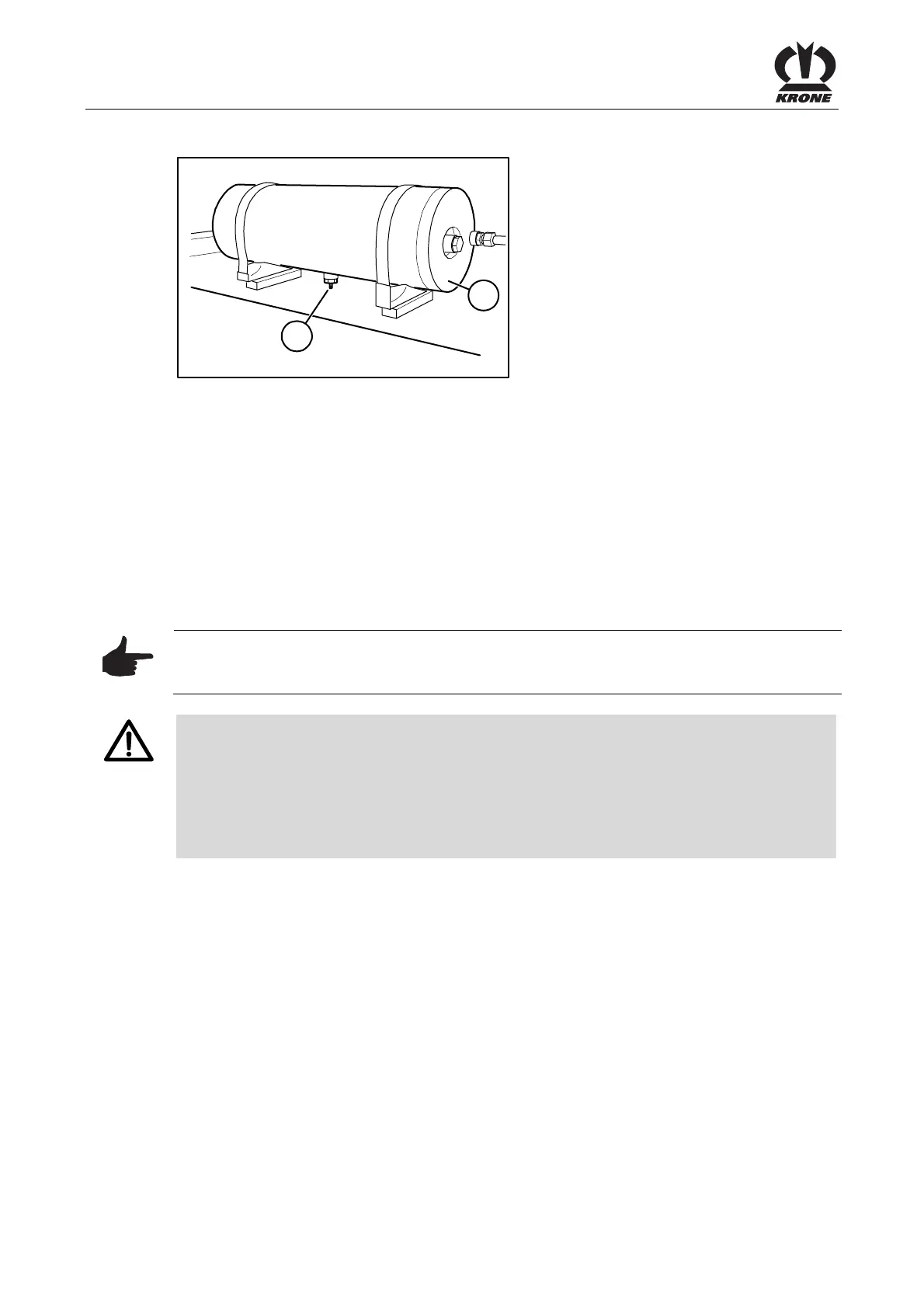

Fig. 259
Pos: 59.190.20 /BA/W artung/Druckluftbeh älter/Druckluftb ehälter_Text_mi t Pos @ 76\mod_1310032535881 _78.docx @ 666447 @ @ 1
The compressed air reservoir (1) stores the compressed air that is pumped by the compressor.
Therefore condensation water may settle in the compressed air reservoir (1) during operation.
The compressed-air reservoir must be emptied regularly. Specifically, it must be emptied:
• daily in winter (when being used),
• otherwise weekly and
• at least after 20 operating hours.
The drain valve (2) on the bottom of the compressed air reservoir (1) is used for draining.
• Switch off and secure the machine
• Open the drain valve and allow the condensation to run out
• Check the drain valve, clean it and screw it back in
Note
If the drain valve has a heavy accumulation of dirt or is leaking, it must be replaced by a new
one.
Pos: 59.190.21 /BA/Si cherheit/2. Vor angestellte Warnhinweise/ Warnung - Druc kluftbehälter beschädig te oder korrodiert - Alte F orm @ 275\mod_14043857103 09_78.docx @ 2066945 @ @ 1
WARNING!
Risk of injury from corroded or damaged compressed air reservoirs.
Damaged or corroded compressed air reservoirs may burst and cause serious injuries.
• Observe the inspection intervals according to the maintenance table, see chapter
Maintenance Engine "Maintenance table".
• Have damaged or corroded compressed air reservoirs replaced immediately by a service
centre.
