Operation
225
Pos: 55.85.1 /Überschr iften/Überschr iften 2/P-T/Rollenni ederhalter @ 0\mod_12 01163046930_78.doc x @ 51122 @ 2 @ 1
11.9 Roller crop guide
Pos: 55.85.2 /BA/Si cherheit/Pic k-up / Rollenniederhalter /Warnung! - Abbau des Rollen niederhalters @ 274\m od_1404216918043_78.d ocx @ 2060895 @ @ 1
WARNING!
Risk of injury if the machine is used without a roller crop guide!
If the machine is operated without a roller crop guide, people can be seriously injured or killed.
• The roller crop guide is used for accident protection and must not be removed during
operation.
Pos: 55.85.3 /BA/Ei nstellungen/Pic k-up / Rollenniederhalt er/Rollenniederha lter Bild CF/CV @ 221\mod_1391 593783915_78.doc x @ 1790481 @ @ 1
HDC00075
2
1
3

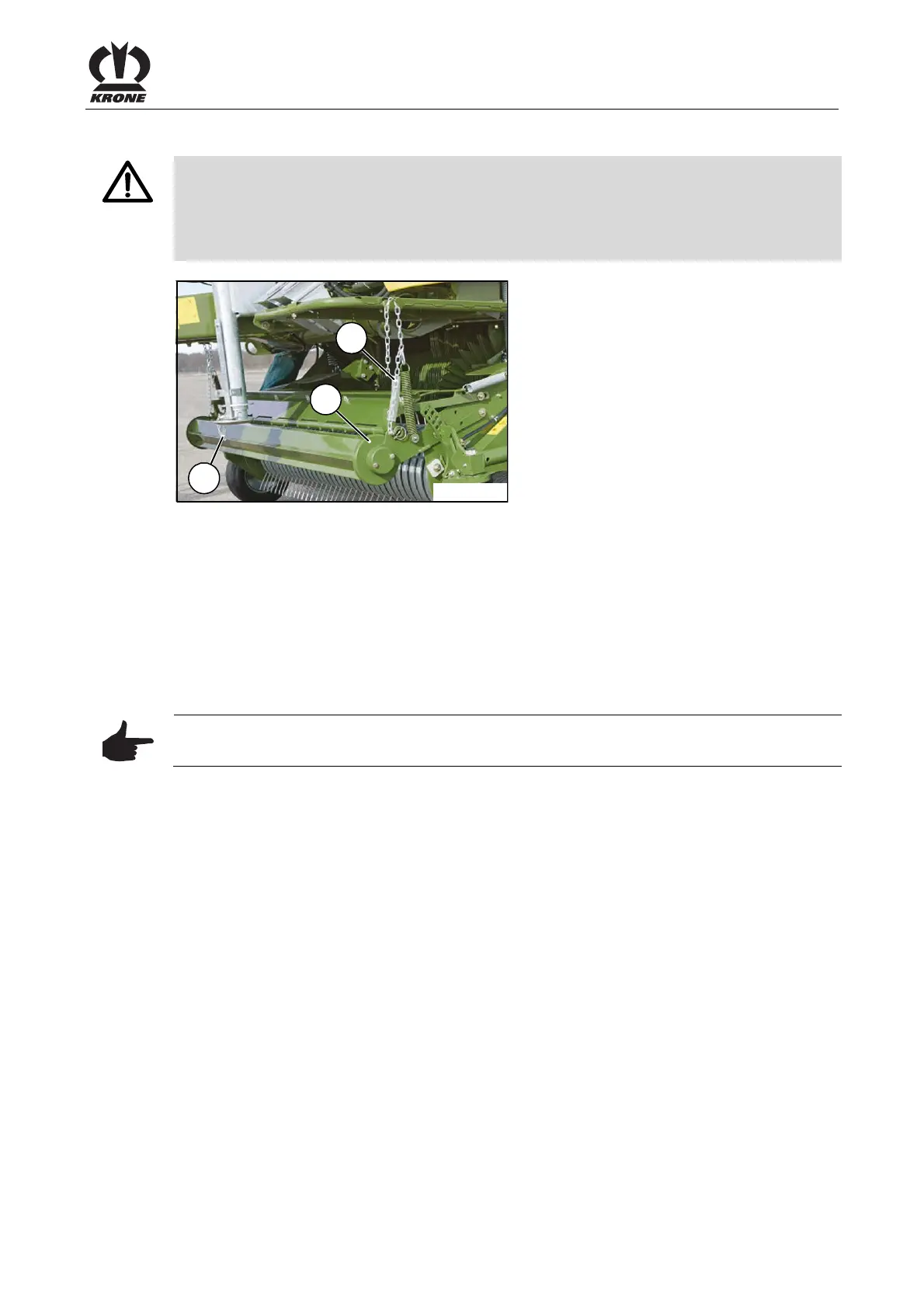

Fig. 164
Pos: 55.85.4 /BA/Ei nstellungen/Pic k-up / Rollenniederhalt er/Rollenniederha lter Höheneinstel lung CF/CV @ 67\mod_13025240 46868_78.docx @ 617317 @ @ 1
The roller crop guide (1) makes it possible to regulate how crop is moved. It ensures that the
pick-up collects crop evenly.
Adjust the height of the roller crop guide (1) so that the holding-down roller (2) runs continuously
above the swath.
Height of the roller crop guide:
For large swaths, the roller crop guide (1) can be adjusted to forage weights.
To do this, hook in the chains (3) correspondingly higher.
Note
The setting must be the same on both sides of the roller crop guide.
