Maintenance
312
Pos: 59.147 /Übersc hriften/Überschr iften 3/A-E/A/A bsperrhahn Heckklappe @ 34\mod_12 55589255891_78.doc x @ 324197 @ 33 @ 1
13.18.1 Shut-off valve for tailgate
Pos: 59.148 /BA/W artung/Rundballenpres se/Bild Absperrhah n Hydraulik F/V + CF/CV @ 200\mod_ 1385464163838_78.doc x @ 1684030 @ @ 1
a
1
1
b
b
a
1
1
CPK00230_3

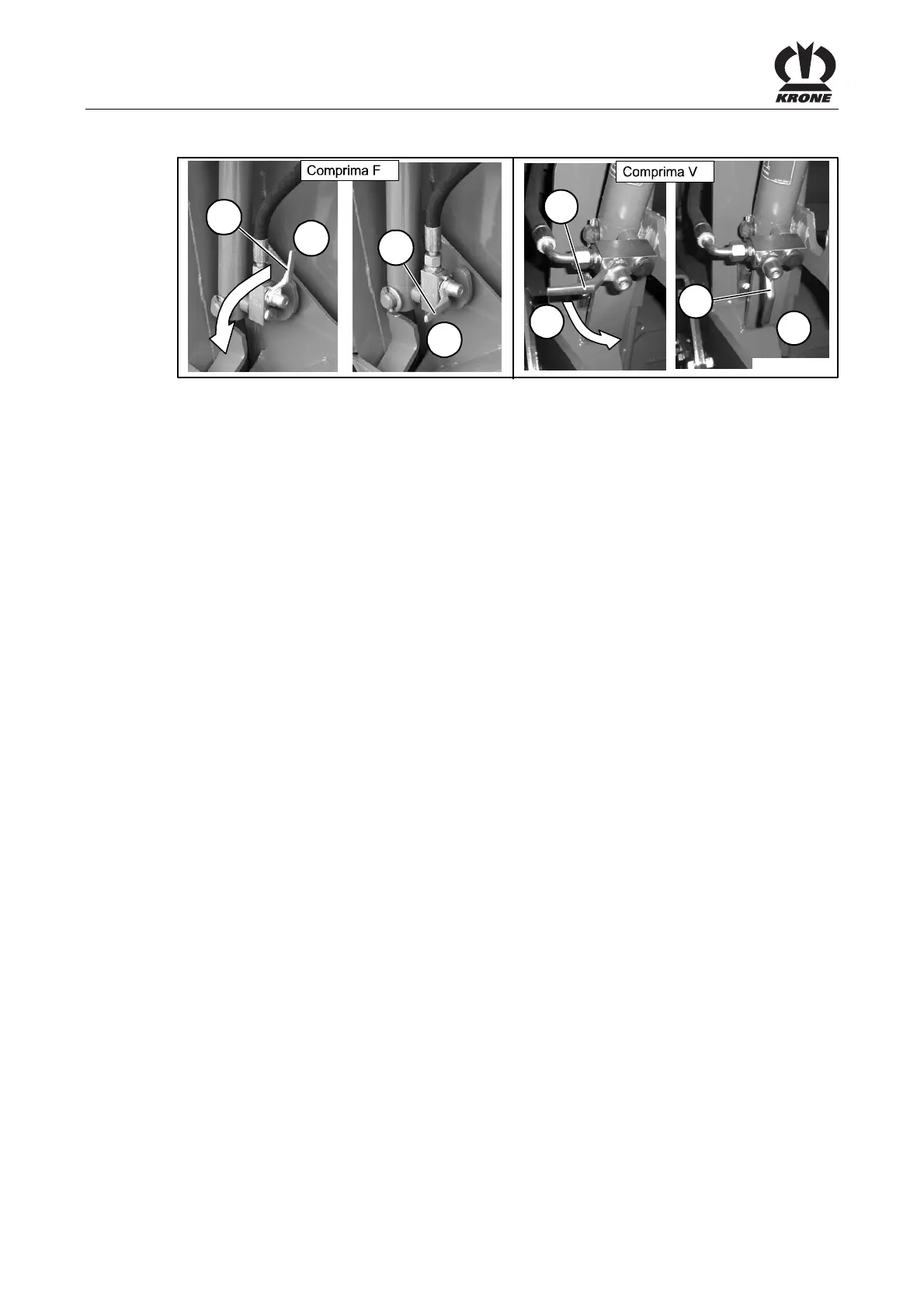

Fig. 246
Pos: 59.149 /BA/W artung/Rundballenpres se/Funktion Absperr hahn CF/CV @ 103\mod_1331629 260746_78.doc x @ 936101 @ @ 1
Pressure is supplied to the machine hydraulics through hoses from the tractor. Along with
various parts, the shut-off valve (1) on the left hydraulic cylinder should be mentioned.
It is designed as a safety component to prevent the tailgate from closing unintentionally.
Position "a"
Hydraulic cylinder return opened. The tailgate can be closed.
To close the tailgate always return the shut-off valve to position
"a" after working inside the bale
chamber or on the tailgate.
Position "b"
Hydraulic cylinder return locked. The tailgate cannot be closed.
Always move the shut-off valve to position
"b" for work inside the bale chamber and on the
open tailgate.
