Start-up
92
Pos: 44.70 /BA/Inbetr iebnahme/Rundballe npresse/Ballen wender/Stützfuß eins tellen @ 14\mod_122787185 6555_78.docx @ 170394 @ 22 @ 1
6.16 Adjusting the parking jack

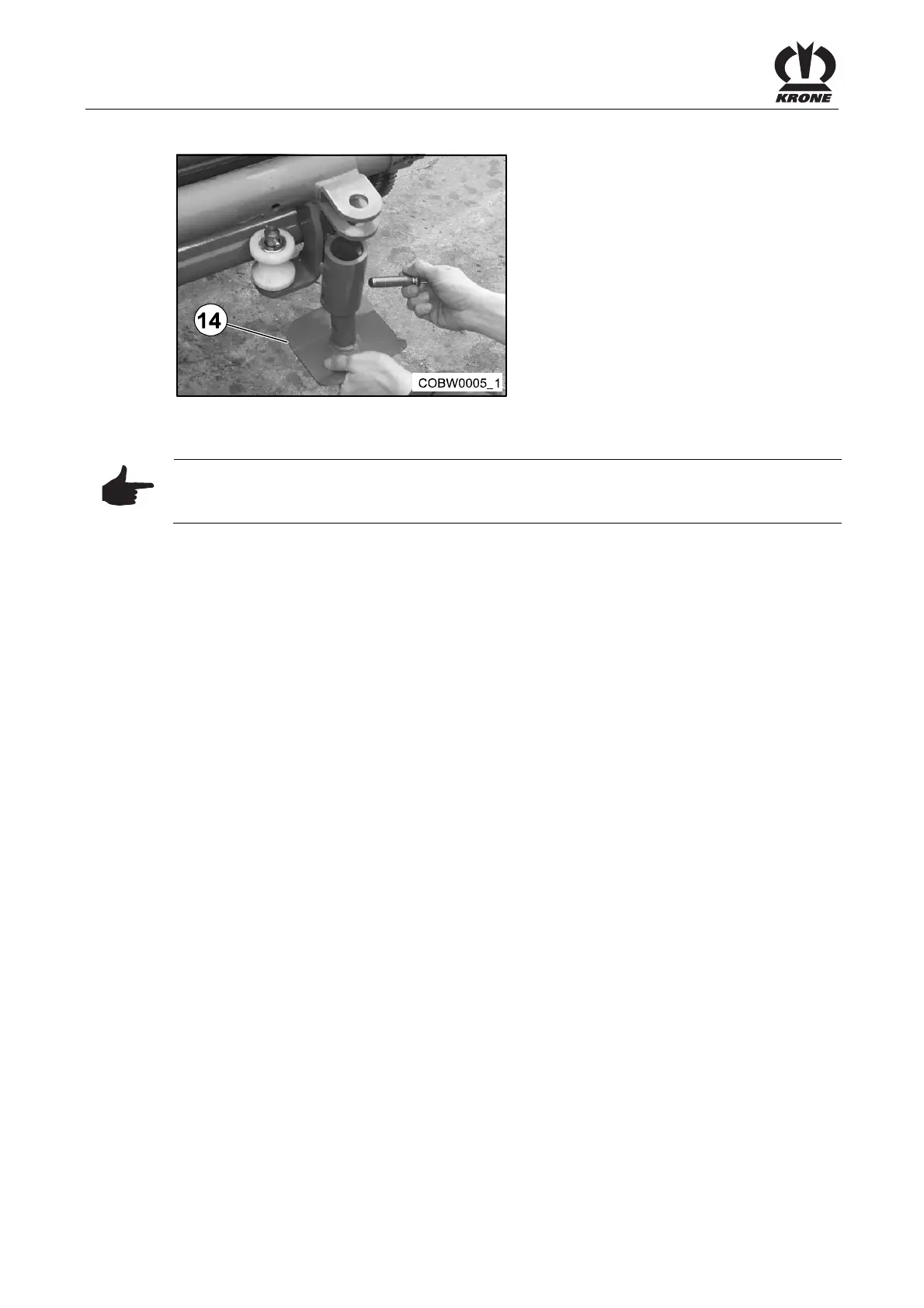

Fig. 58:
The height of each parking jack (14) is adjustable.
Note
The parking jacks have been pre-adjusted in the factory. We recommend leaving the parking
jacks in this position.
Making the adjustment:
• Loosen the screw connection on the parking jack (14).
• Move the parking jack (14) to the required position and secure with bolt, washer and nut.
