13.16.1.2 Rear Floor Conveyor Drive
Pos: 59.118 /Abkürzu ngen /Abkürzungen sprac hneutral/Rundbal lenpressen/Compri ma CV 150 / CV 210 XC @ 199\mod_138493950 5399_0.docx @ 1676121 @ @ 1
Comprima CV 150 / CV 210 XC
Pos: 59.119 /BA/W artung/Rundballenpres se/Spannen Ketten hin terer Rollbodenantri eb CV150/ CV210 @ 75\mod_130943 8813086_78.doc x @ 663512 @ @ 1
1
RPN00071_1
2
a
2
3
4

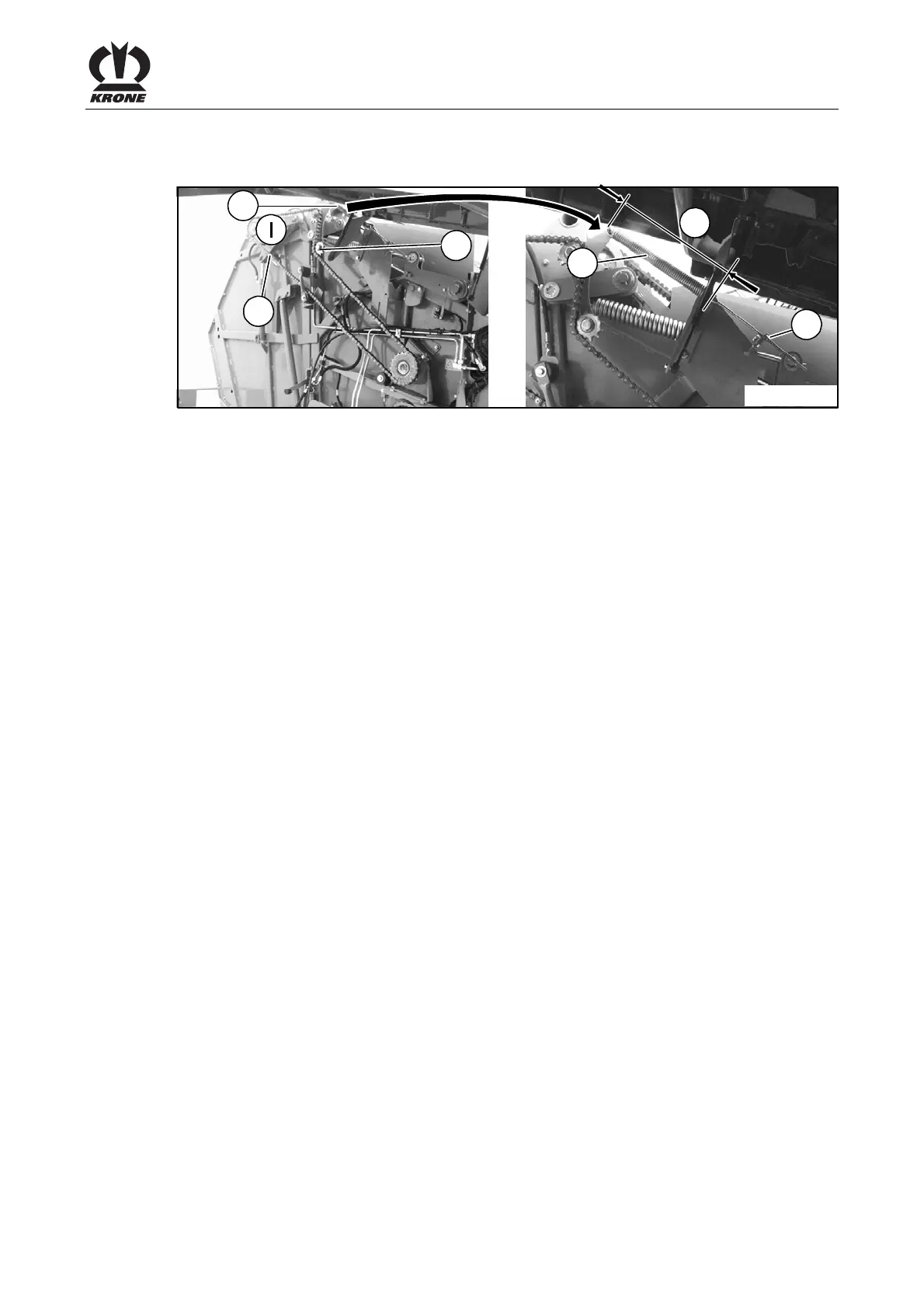

Fig. 239
The rear floor conveyor drive is located on the right side of the machine.
Check the Chain Tension:
The length of the spring (a) when tightened
must be:
approx. 495 mm (CV150XC)
approx. 465 mm (CV210XC)
Correct the Chain Tension:
• Turn the nut (4) to increase or decrease the spring tension of the tension spring (2) on the
threaded rod until the distance (a) is set on the above mentioned values.
