Krone Comprima CF 155 XC User Manual

KRONE ISOBUS Terminal
106
Pos: 48.11 /BA/Inf o-Center/CCI-I SOBUS-Terminal/Multif unktionshebel an CCI Ter minal anschließen ( Traktor mit integrier tem ISOBUS System) @ 119\mod _1342175250190_78.doc x @ 1077365 @ 3 @ 1
8.2.1 Connecting the Multi-Function Lever to the CCI Terminal (on Tractors with an Integrated
ISOBUS System)
6
5
1
2
3
4
CC00602
1
4
7
3
6
9
7
5
7
6

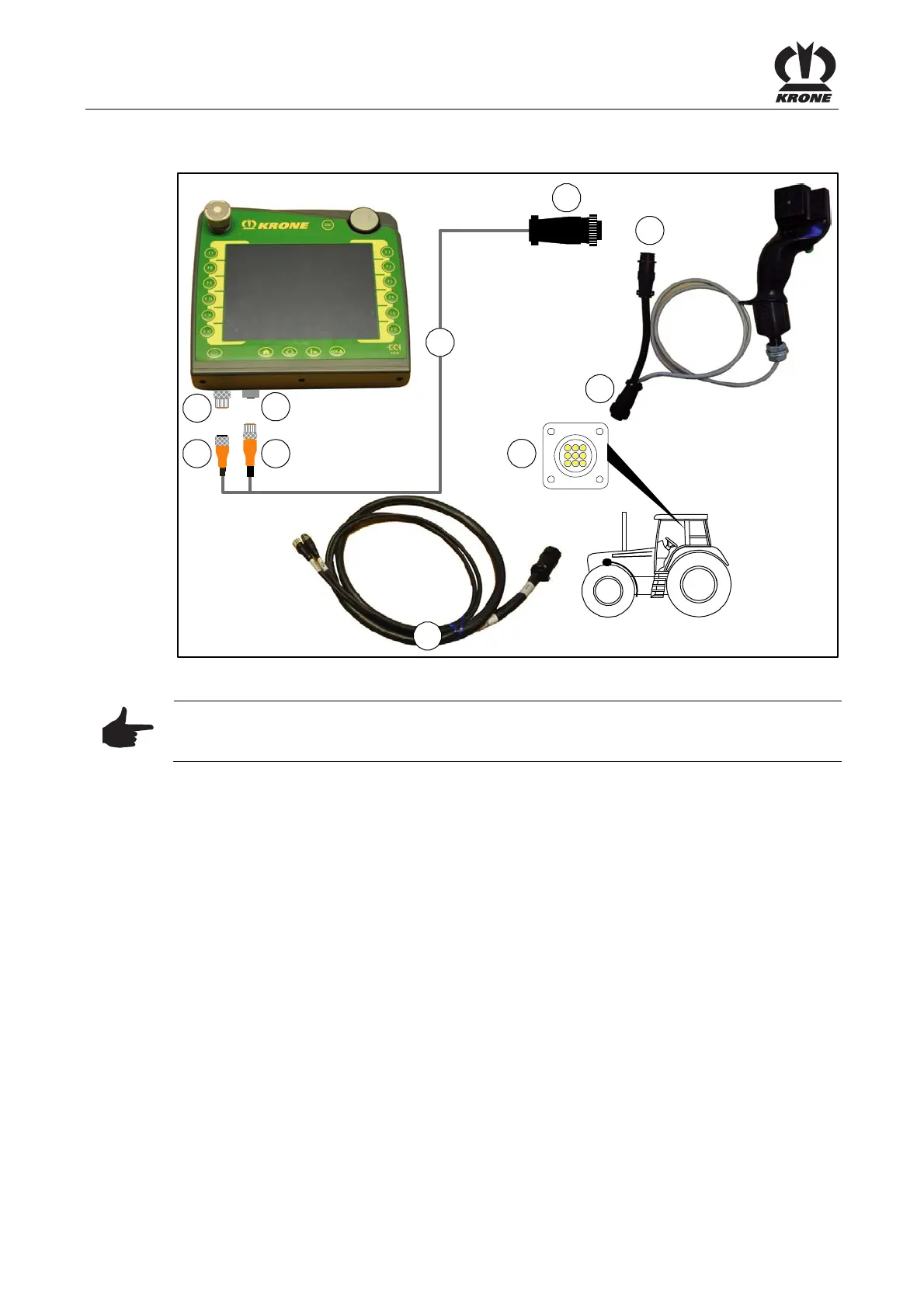

Fig. 74
Note
The connection of terminal to tractor is made via a special cable set (5) which can be ordered
by stating the KRONE article no. 20 081 223 0.
• Connect plug (2) of cable set (5) with socket (1) (CAN1-IN) of the terminal
• Connect plug (4) of cable set (5) with socket (3) (CAN1-OUT) of the terminal
• Connect ISO plug (6) (9-pole) of cable set (5) with the ISO socket (6) (9-pole) of the multi-
function lever
• Connect ISO plug (7) (9-pole) of multi-function lever with ISO socket (7) (9-pole) located in
the tractor cabin
