Operation
231
Pos: 55.89.14 /Übersc hriften/Überschr iften 3/K-O/Messer wec hseln @ 40\mod_12688204770 38_78.docx @ 362202 @ 3 @ 1
11.11.3 Zero position of the cutter
Pos: 55.89.15 /BA/Si cherheit/7. Gefahr enhinweise alt/Rundba llenpresse/W arnung Messermontage Messer @ 169\mod_1369641705483_ 78.docx @ 1465401 @ @ 1
WARNING! – Blades are pre-tensioned with spring force!
Risk of injury when attaching or removing the blades.
• Wear suitable gloves when touching the blades.
Pos: 55.89.16 /BA/Ei nstellungen/Schnei dwerk/Messerwec hsel allgemein CF/CV @ 169\ mod_1369641967734_78. docx @ 1465426 @ @ 1
Blades are installed and removed from behind when the tailgate is open.
• Open tailgate.
Pos: 55.89.17 /BA/Si cherheit/Module Acht ung/WARNUNG - Geöffnete Heckklappe @ 308\mo d_1417007007003_78.doc x @ 2392722 @ @ 1
WARNING! – Unintentional closing of the tailgate!
Effect: severe injuries.
• Secure the open tailgate to prevent it from closing unintentionally.
Pos: 55.89.18 /BA/Er stinbetriebnahme/ Rundballenpresse/ Heckklappe sperren C omprima F/V + CF/CV @ 81\mod_1315 906573632_78.doc x @ 709150 @ @ 1
a
1
1
b
b
a
1
1
CPK00230_3

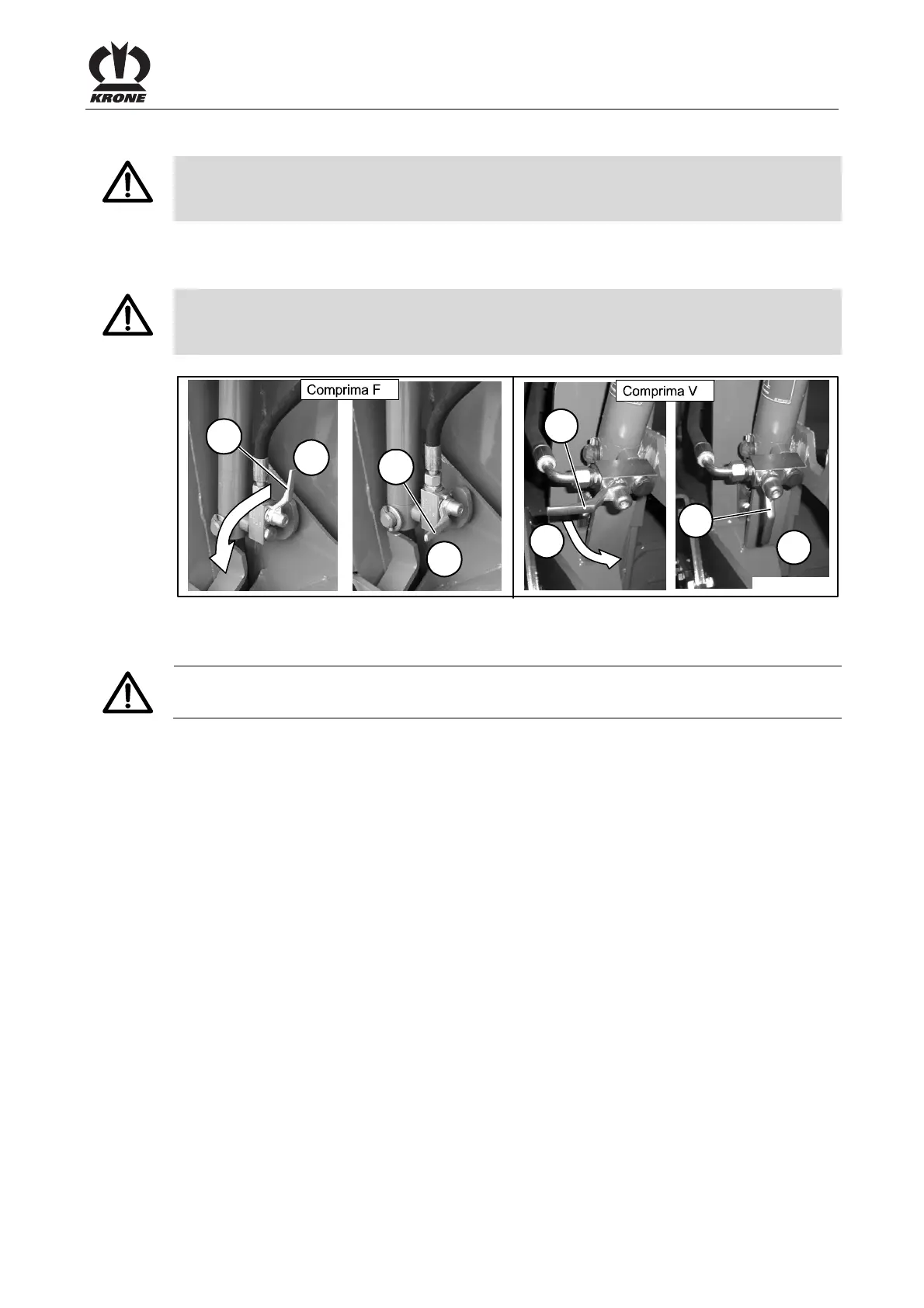

Fig. 169
• Swivel shut-off valve (1) in the return of the left lifting cylinder from position (a) to position
(b), the tailgate is locked hydraulically.
Pos: 55.89.19 /W HB/Warnhinweise - Allgemein gültig/ACHTUNG - Besc hädigung der Maschine - Vor Absenken des Messerbodens Pi ck-up anheben @ 55\mod_12 92578795457_78.doc x @ 521758 @ @ 1
CAUTION! - Damage to the Machine!
• Before lowering the cutter base, always raise the Pick-up
Pos: 55.89.20 /Layout Module /---------------Seitenumbruch------------- --- @ 0\mod_1196175311226_0. docx @ 4165 @ @ 1
