Operation
230
Pos: 55.89.9 /W HB/Warnhinweise - Allgemeing ültig/VORSICHT - Zurüc kschlagende Messer - nicht von Hand in Arbeitsposi tion, Hammer verwende n, @ 55\mod_1292578390301 _78.docx @ 521706 @ @ 1
CAUTION! - Blades fold back!
The blades are pre-tensioned via spring force. Risk of injury!
Never press the blades into working position manually.
• Use a tool, for example a hammer.
• Always wear protective gloves.
Pos: 55.89.10 /W HB/Warnhinweise - Allgemein gültig/VORSICHT - Ver letzungsgefahr am Messer im Messerbalken - Sc hutzhandschuhe tragen @ 55\m od_1292496039379_78.d ocx @ 520211 @ @ 1
Caution! - Risk of injury
Risk of injury on the blade in the blade bar!
• Always wear protective gloves.
Pos: 55.89.11 /BA/Ei nstellungen/Schnei dwerk/Schnittlänge ei nstellen/Schni ttlänge Messer Bild @ 67\ mod_1302528326300_78. docx @ 617569 @ @ 1

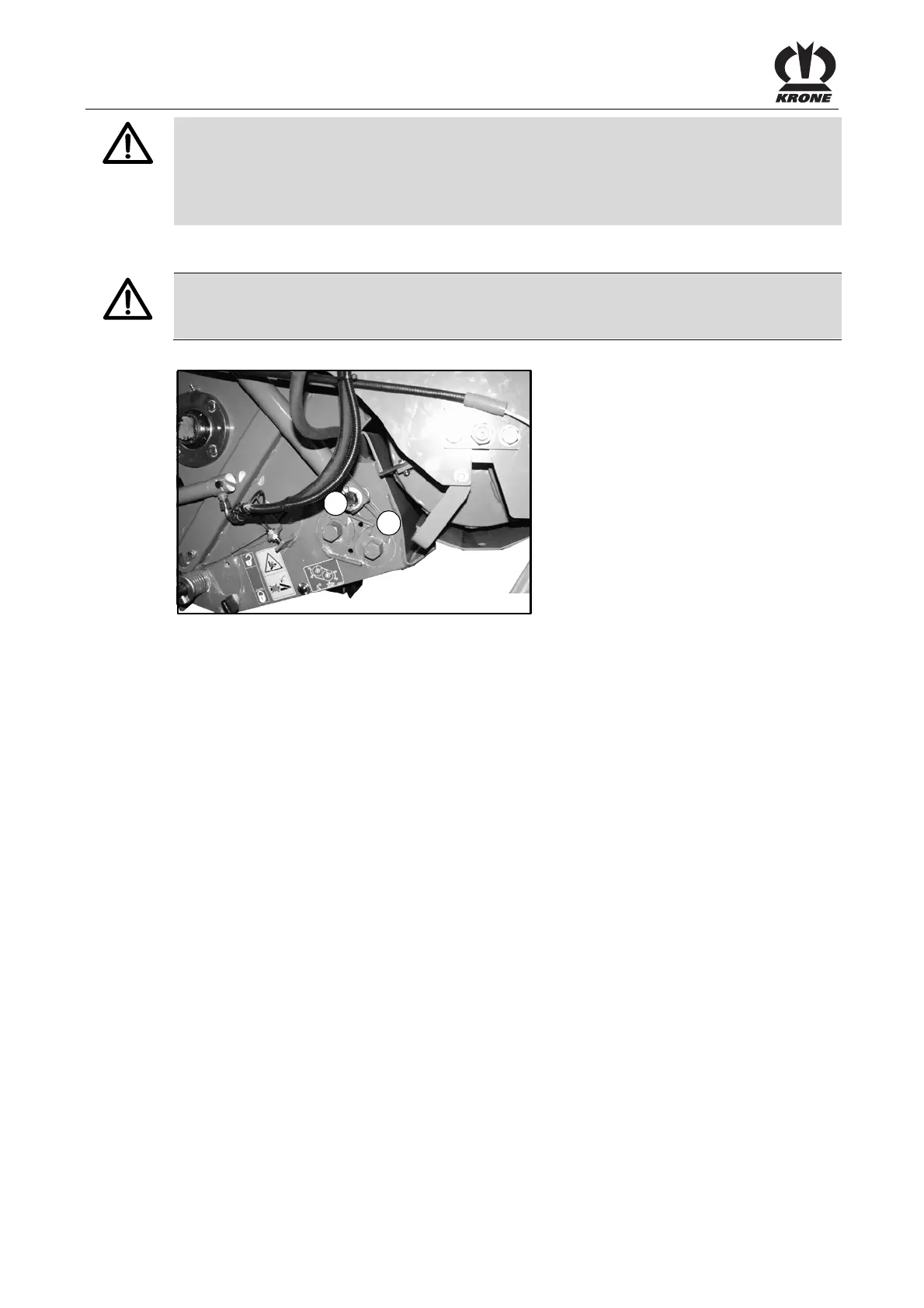

A
B
RPN00020_2
Abb. 168
Pos: 55.89.12 /BA/Ei nstellungen/Schnei dwerk/Messer zuschal ten CF/CV @ 67\mod_13025291 48221_78.docx @ 617597 @ @ 1
After turning on the blades, always check to see whether all the cutters have swivelled up.
If this is not the case:
• Move the blade control shafts (A/B) to the zero position of blades (turn both blade control
shafts (A/B) to position (-))
• Lower the conveyor floor mechanically or hydraulically
• Clean the cutter base and especially the cutter slots thoroughly
After cleaning:
• Set the desired chop length
After the blade control shafts (A/B) have been adjusted, the cutters automatically swivel back up
into working position.
If they have not, lightly tap any blades that have not already swivelled up with a tool (for
example a hammer) striking the back of the cutters to move them back to working position.
• Raise the cutter base.
