Operation
215
Pos: 55.26 /Übersc hriften/Überschri ften 3/A-E/D/Druc k auf die Seitenwände der Ballen kammer verringern @ 66\mod_1302510664857_78. docx @ 616669 @ 33 @ 1
11.3.1 Reducing the Pressure on the Side Walls of the Bale Chamber
Pos: 55.27 /BA/Bedienun g /Rundballenpresse/ Druck verringern @ 66\ mod_1302510588984_78. docx @ 616567 @ @ 1
For very critical forage and extremely hard bales, the bales can be given additional protection
against turning as follows:
• In order to reduce the pressure on the side walls there should not be extreme driving to the
right/left
• Reduce the number of the outer cutting blades or turn off the cutting system or remove the
cutters
Pos: 55.28 /Übersc hriften/Überschri ften 4/K-O/Montage zusä tzlicher Mitnehmerlei sten auf der Starter walze @ 66\mod_13025124705 47_78.docx @ 616733 @ 44 @ 1
11.3.1.1 Assembly of Additional Tappet Strips on the Starter Roller
Pos: 55.29 /BA/Sicherheit/Module Achtung/ WARNUNG - Geöffnete Heckklappe @ 308\mod_141 7007007003_78.doc x @ 2392722 @ @ 1
WARNING! – Unintentional closing of the tailgate!
Effect: severe injuries.
• Secure the open tailgate to prevent it from closing unintentionally.
Pos: 55.30 /BA/Bedienun g /Rundballenpresse/ Mitnehmerleiste n montieren @ 66\mod_1302 512580324_78.doc x @ 616757 @ @ 1

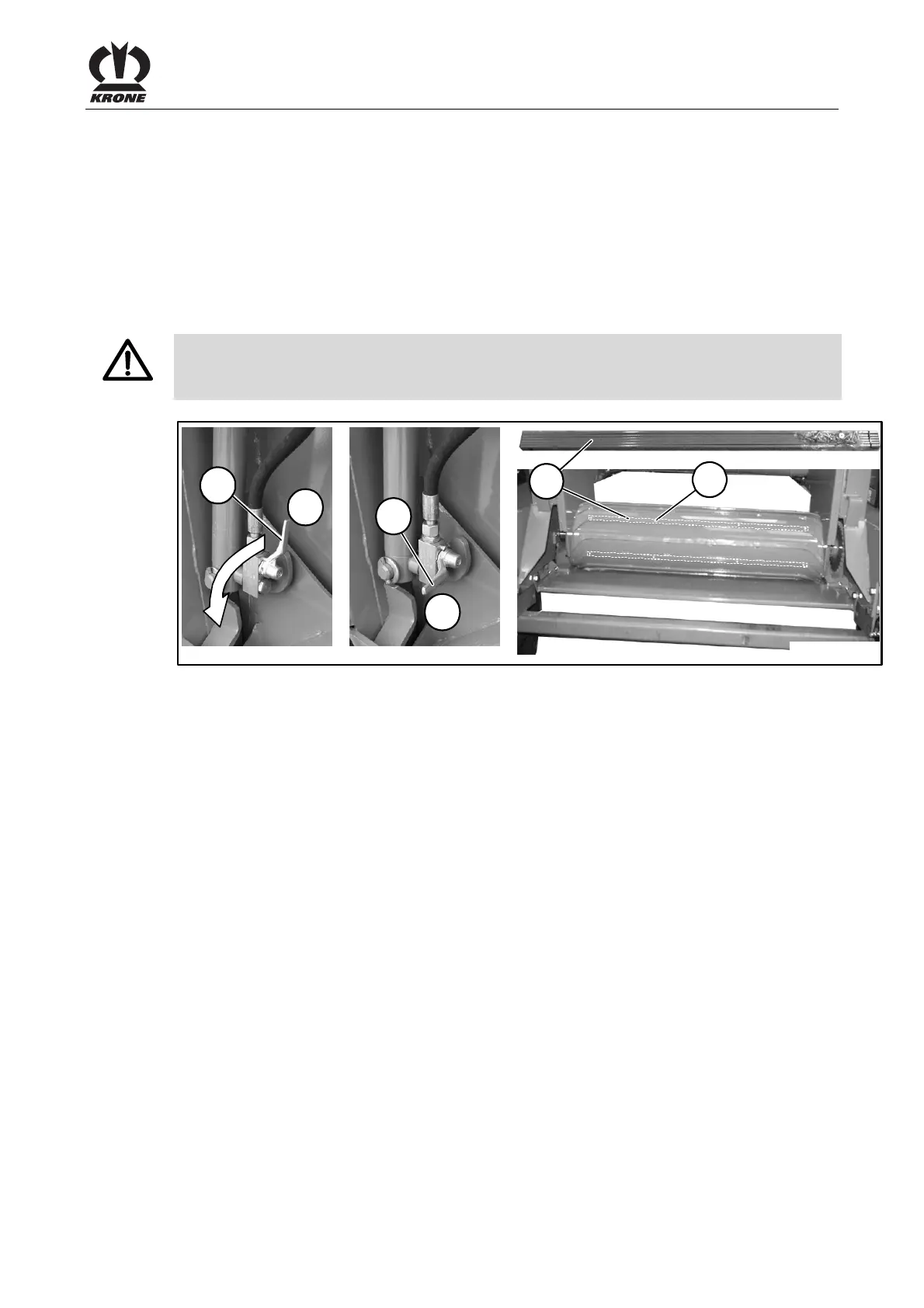

RPN00046_3
3
2
b
a
1
1
Abb. 154
The assembly of additional bars (2) on the starter roller is recommended to increase the
protection against turning of the bales.
Assemble the bars (2) on the starter roller in the inside of the bale chamber:
Pos: 55.31 /BA/Bedienun g /Rundballenpresse/ Heckklappe sic hern und Leisten montieren @ 105\mod_133302024851 1_78.docx @ 950771 @ @ 1
• Swivel the shut-off valve (1) in the return of the left lifting cylinder from position (a) to
position (b), the tailgate is locked hydraulically.
• Open the tailgate.
• Assemble the 6 bars (2) on the starter roller and fasten them with countersunk screws (3)
• Swivel the shut-off valve (1) in the return of the left lifting cylinder from position (b) to
position (a), the tailgate is locked hydraulically.
• Close the tailgate.
