6.15 Moving the Bale Turner into Working Position
COBW0008_1
1
12
11
13
I
II
a
I
II
12
11

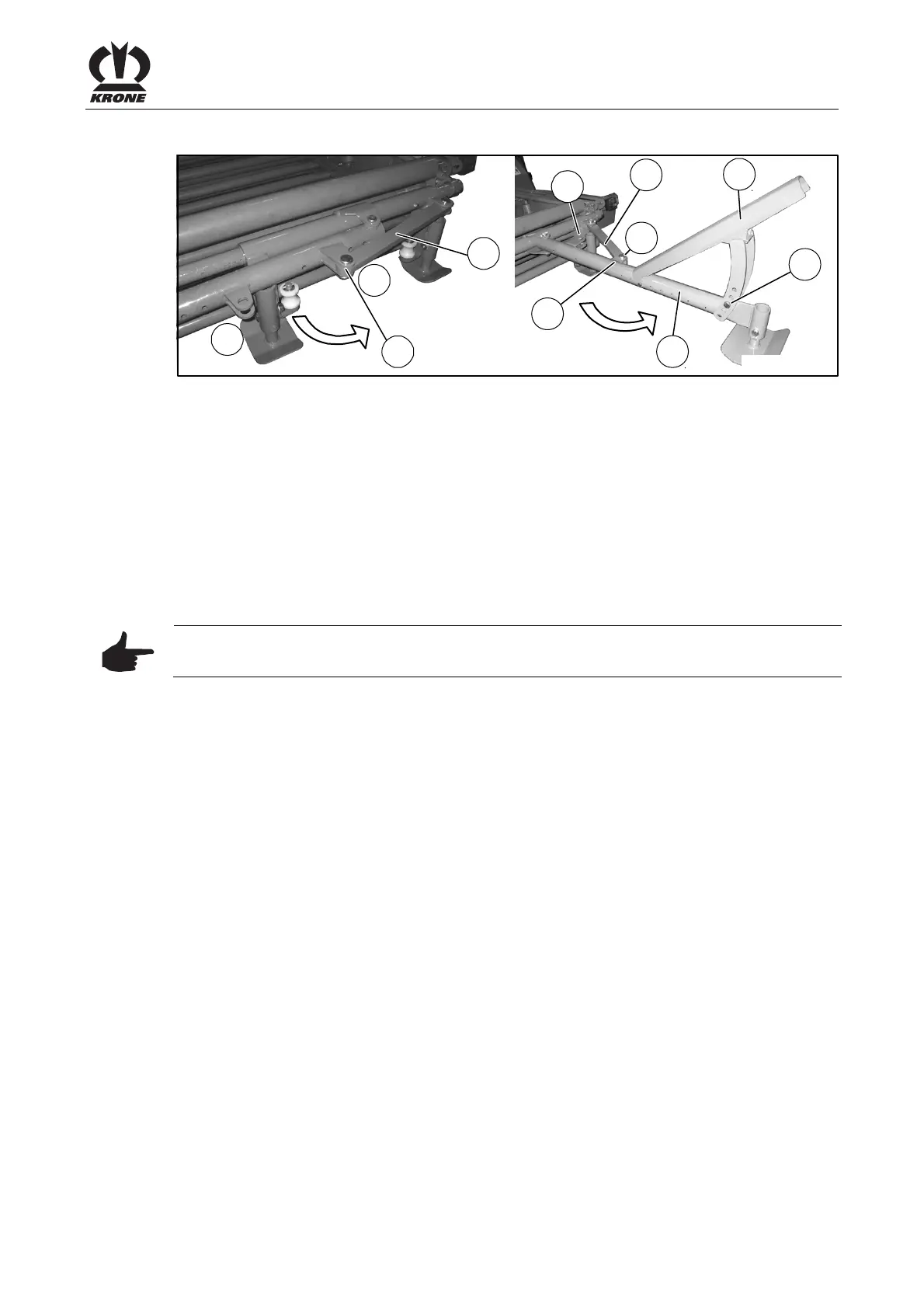

Fig. 57:
• Swivel the locking bar (12) out of position (I) by removing the bolt (11).
• Fold out the bale turner (1).
• Swing locking bar (12) into position (II) and secure with bolt, washer and cotter pin (11).
Pos: 44.68 /BA/Inbetr iebnahme/Rundballe npresse/Ballen wender/Prallblech eins tellen @ 14\mod_12281 45386009_78.docx @ 170518 @ 33 @ 1
6.15.1 Adjusting the Baffle Plate
The height of the baffle plate (13) is adjustable.
Making the adjustment:
• Loosen screw connections on the baffle plate (13).
• Move baffle plate (13) to the required position and secure with bolts, washers and nuts.
Note
We recommend using the centre borehole (a) for the baffle plate setting.
