Krone Comprima CF 155 XC - 11.8.2 Bearing Pressure Relief of the Pick-up

Operation
224
Pos: 55.80 /Übersc hriften/Überschri ften 3/A-E/A/Auflagedr uckentlastung der Pick-up @ 67\mod_1302524398 424_78.docx @ 617349 @ 33 @ 1
11.8.2 Bearing Pressure Relief of the Pick-up
Pos: 55.81 /BA/Einste llungen/Pick- up / Rollenniederhalter /Pick-up Auflagedruc kentlastung Bild @ 67\ mod_1302524532234_78. docx @ 617373 @ @ 1
RPN00023_3
1
2

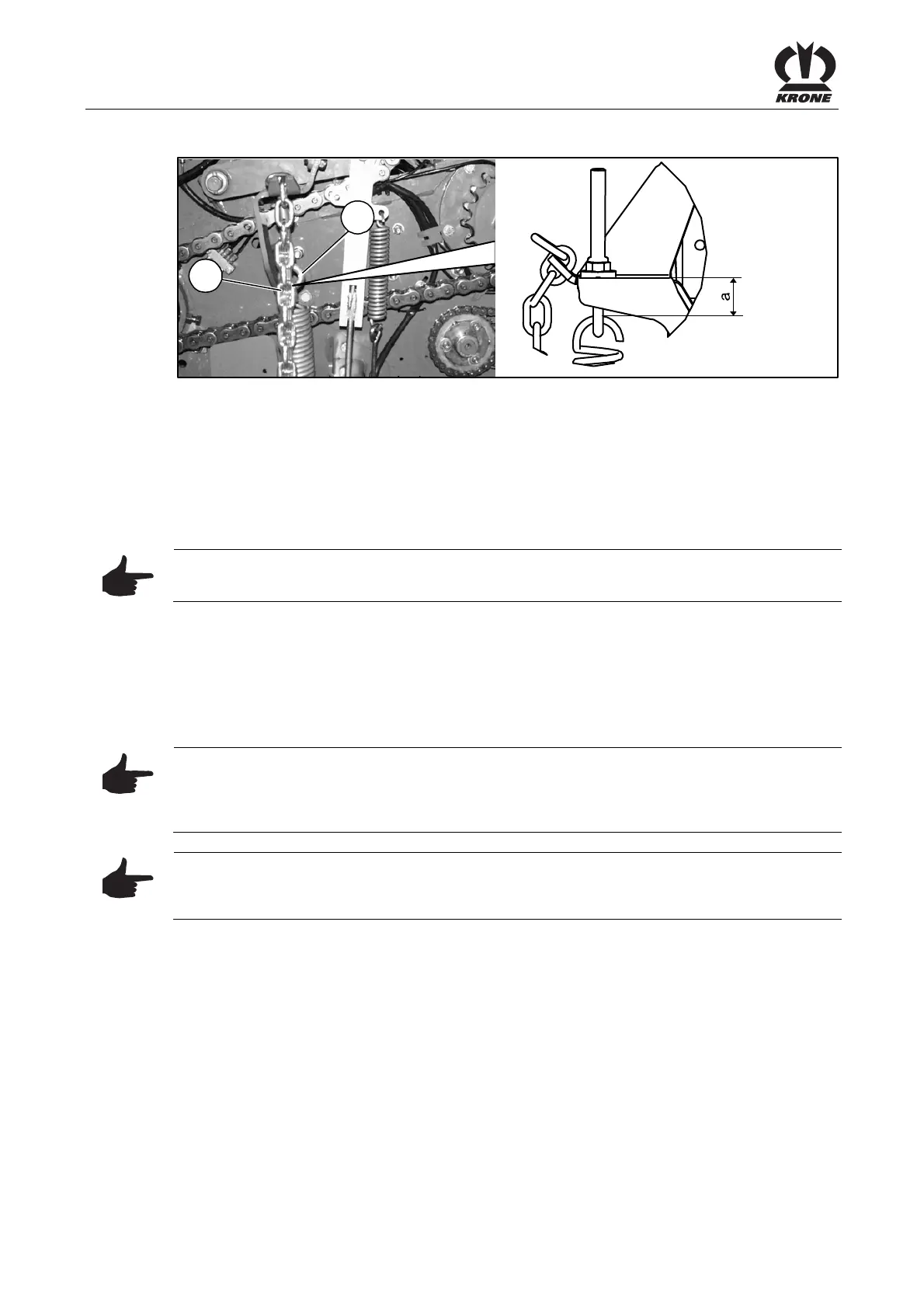

Abb. 163
Pos: 55.82 /BA/Einste llungen/Pick- up / Rollenniederhalter /Arbeitsschritte Dr uck Pick-up entlasten Co mprima CV/CF/F/V @ 67\ mod_1302524952195_78.doc x @ 617401 @ @ 1
In order to be able to pass over unevenness better, the pick-up is supported by means of two
springs.
The springs can be set by means of the ring bolt (1). Both springs should be set equally.
In the default setting, dimension a is:
• left 150 mm
• right 42 mm
Note
Load on the guide wheels must be sufficiently relieved.
For extreme soil conditions, regulate the raking height of the pick-up with the chains (2)
on both sides (right and left-hand side of the machine):
• Raise the Pick-up hydraulically
• Move the guide wheels (3) up
• Set the desired raking height of the pick-up by suspending the chain (2)
Pos: 55.83 /BA/Einste llungen/Pick- up / Rollenniederhalter /Hinweis Pick-up Einsat z in Stroh @ 67\mod_130252 5353218_78.docx @ 61742 9 @ @ 1
Note
When used in straw, the pick-up should be set as high off the ground as possible.
Use the chain (2) to adjust the pick-up guide wheels in that way that they do not touch the
ground.
Note
If the pick-up is hooked in higher, the height of the drawbar must be adjusted
(see Chapter entitled Start-up “Adapt Drawbar Height”).
