Maintenance
327
Pos: 59.190.10 /Übersc hriften/Übersc hriften 3/K-O/Luftf ilter für Rohrleitung en @ 34\mod_1255595485391 _78.docx @ 324472 @ 3 @ 1
13.20.2 Air filter for pipelines
Pos: 59.190.11 /BA/W artung/Bremsanlage/ Luftfilter/Luftf ilter für Rohrleitu ng Bild CF/CV @ 76\mod_13100 27669344_78.doc x @ 666250 @ @ 1
CP102200
6
1 2 3 4 5 6 7
7
8

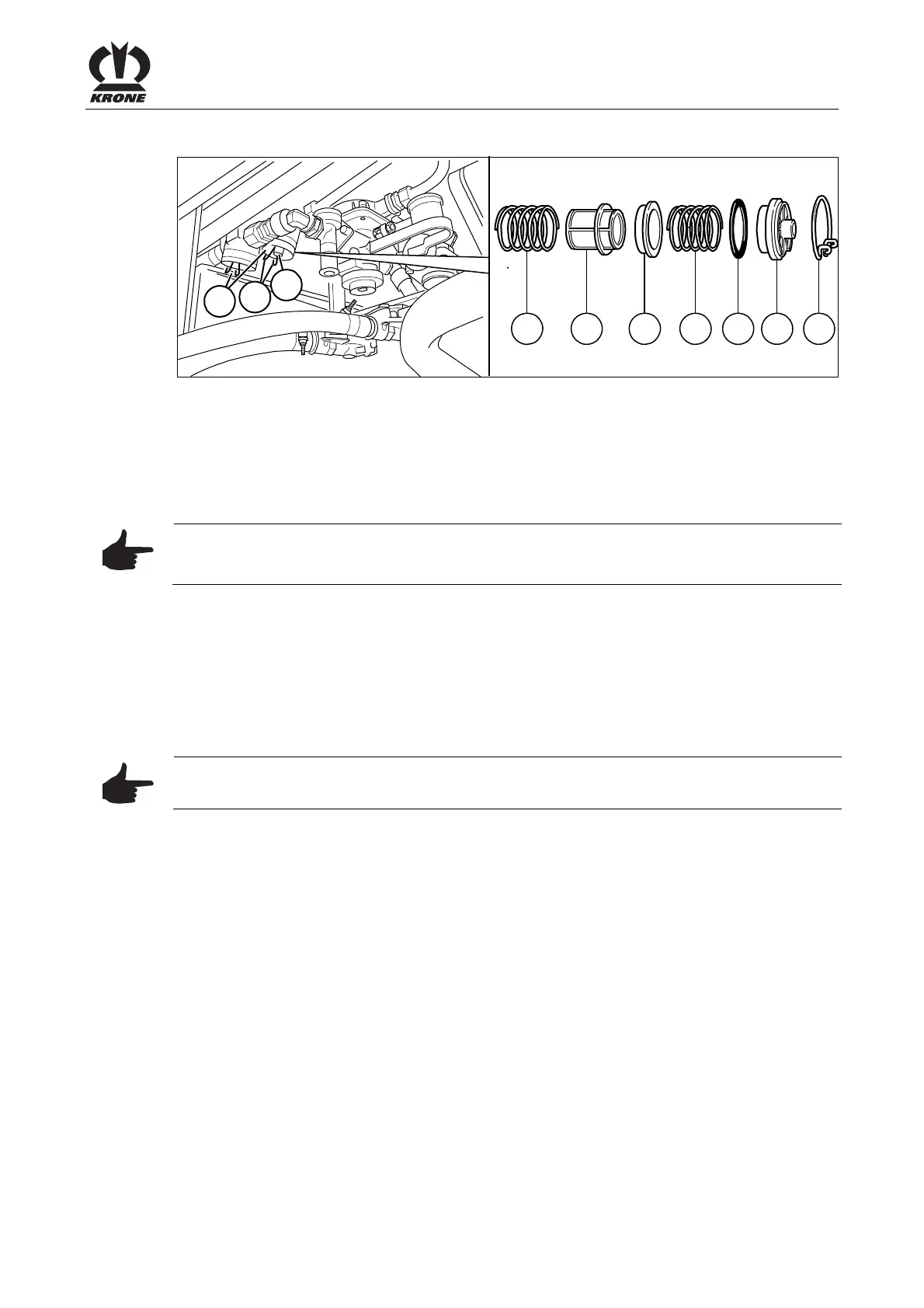

Fig. 258
Pos: 59.190.12 /BA/W artung/Bremsanlage/ Luftfilter/Luftf ilter für Rohrleitu ng Aufzählung @ 6\mod_121 4888028238_78.doc x @ 96691 @ @ 1
(1) Spring (4) Spring (7) Clasp locking ring
(2) Filter (5) Sealing ring
(3) Spacer (6) Cover cap
Pos: 59.190.13 /BA/W artung/Bremsanlage/ Luftfilter/Funkti on Luftfilter f ür Rohrleitung @ 76\mod_1310 028483877_78.doc x @ 666308 @ @ 1
The air filter (8) cleans the compressed air and protects the brake system from malfunctions.
Pos: 59.190.14 /BA/W artung/Bremsanlage/ Luftfilter/Hin weis verstopfter Fi ltereinsatz @ 76\mod_131003 0486256_78.doc x @ 666336 @ @ 1
Note
The brake system is ready for operation even when the filter insert is clogged in both directions
of flow.
Pos: 59.190.15 /BA/W artung/Bremsanlage/ Luftfilter/Aus bau Filtereinsatz ( Prüfen bei anderen Maschi nen) @ 76\mod_13100305606 14_78.docx @ 666364 @ @ 1
Removing the Filter Insert
• Press cover cap (6) and loosen the clasp locking ring (7)
• Remove the filter insert
Maintenance of the Air Filter
Clean the filter insert before the beginning of the season.
Installation of the filter insert
Installation is in reverse order to removal.
Pos: 59.190.16 /BA/W artung/Bremsanlage/ Luftfilter/Hin weis Reihenfolge Filt ereinsatz @ 76\mod_13100 30667908_78.doc x @ 666392 @ @ 1
Note
Observe the correct sequence when assembling the filter insert.
Pos: 59.190.17 /Layout Module /------ ---------Seitenumbruc h---------------- @ 0\mod_1196175311226_0. docx @ 4165 @ @ 1
