Maintenance
306
Pos: 59.121 /Übersc hriften/Überschr iften 4/P-T/Pick- up @ 75\mod_1309440962543_78. docx @ 663572 @ 44 @ 1
13.16.1.3 Pick-up
Pos: 59.122 /BA/Sic herheit/7. Gefahrenhin weise alt/War nung - Quetschgefahr Pic k-up @ 34\mod_1256048391518_ 78.docx @ 325820 @ @ 1
WARNING! – Crush hazard!
Effect: Foot injuries.
Lower pick-up to the ground.
Pos: 59.123 /BA/Sic herheit/8. Vorausset zungen/Handlungsan weisung für alle Maschi nen/Handlungsanweisu ng: Maschine still setzen und sichern @ 274\ mod_1404365253849_78.doc x @ 2065151 @ @ 1
Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 59.124 /BA/W artung/Rundballenpres se/Spannen Ketten Pic k-up CF/CV @ 75\mod_130944086 6033_78.docx @ 663540 @ @ 1
RPN00056_1
a
a
a
3
3
2
4
3
1
4

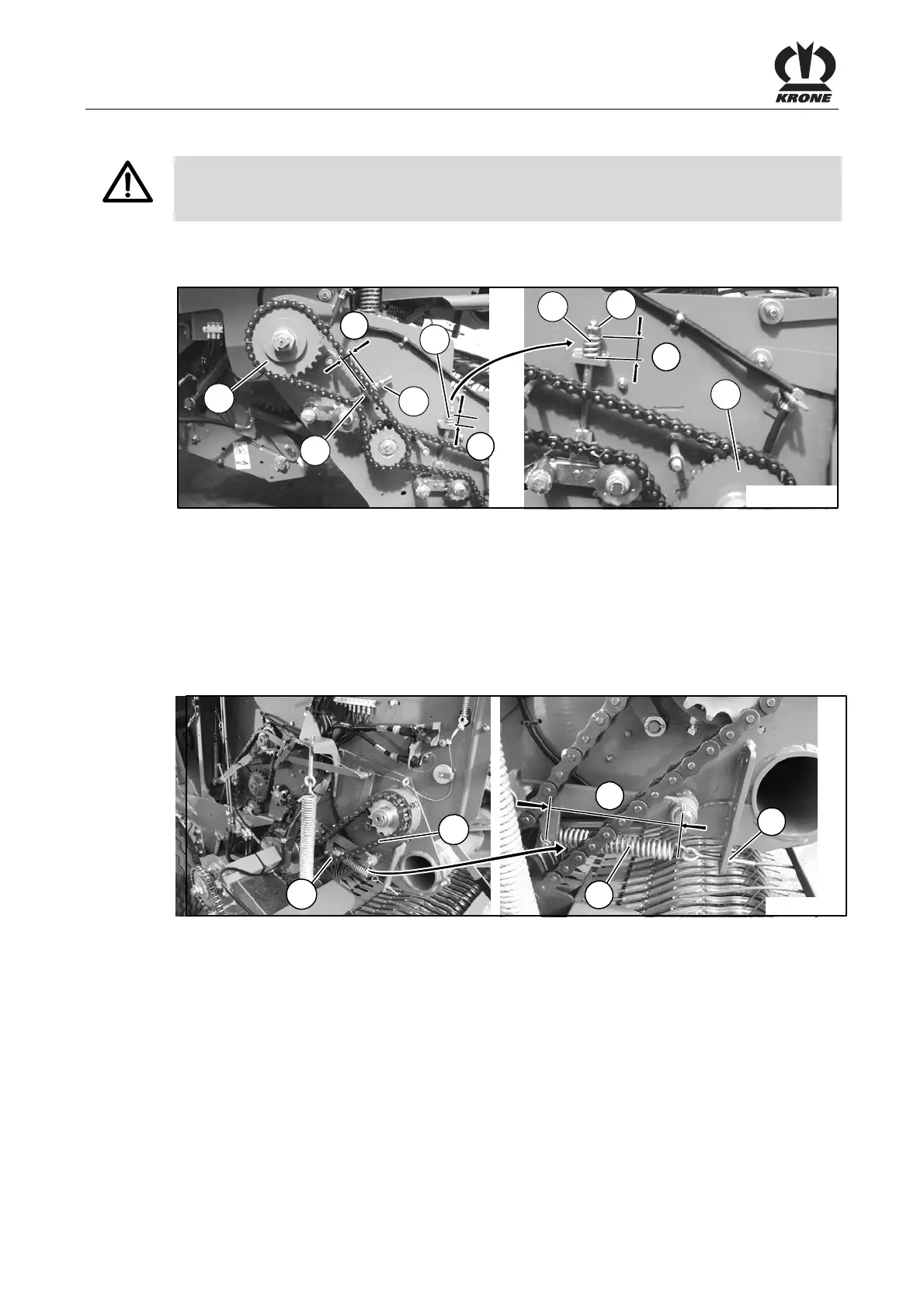

Fig. 240
The main pick-up drive (1) and the pick-up drive (2) are located on the pick-up on the right side
of the machine. The drive chains are tightened with clamping elements (3).
Check the Chain Tension:
The length of the spring when tightened must be a = 30 mm.
Correct the Chain Tension:
Turn the nut (4) to increase or reduce the spring tension of the compression spring (3) until
distance a= approx. 30 mm is set
Pos: 59.125 /BA/W artung/Rundballenpres se/Spannen Ketten Schnei dwalzenantrieb CF/ CV @ 76\mod_1309872904452_ 78.docx @ 664701 @ @ 1
1
RPN00058
2
a
2
3
Fig. 241
The cutting roller drive pick-up (1) is located on the right-hand side of the machine.
Check the Chain Tension:
The length of the spring when tightened must be a = 200 mm.
Correct the Chain Tension:
Turn the nut (3) to increase or reduce the spring tension of the compression spring (2) until
distance a= approx. 200 mm is set
