Operation
228
Pos: 55.89.5 /BA/Ei nstellungen/Schnei dwerk/Schnittlänge ei nstellen/Schni ttlänge CF/CV @ 221\mod_139 1601707157_78.doc x @ 1791248 @ 3 @ 1

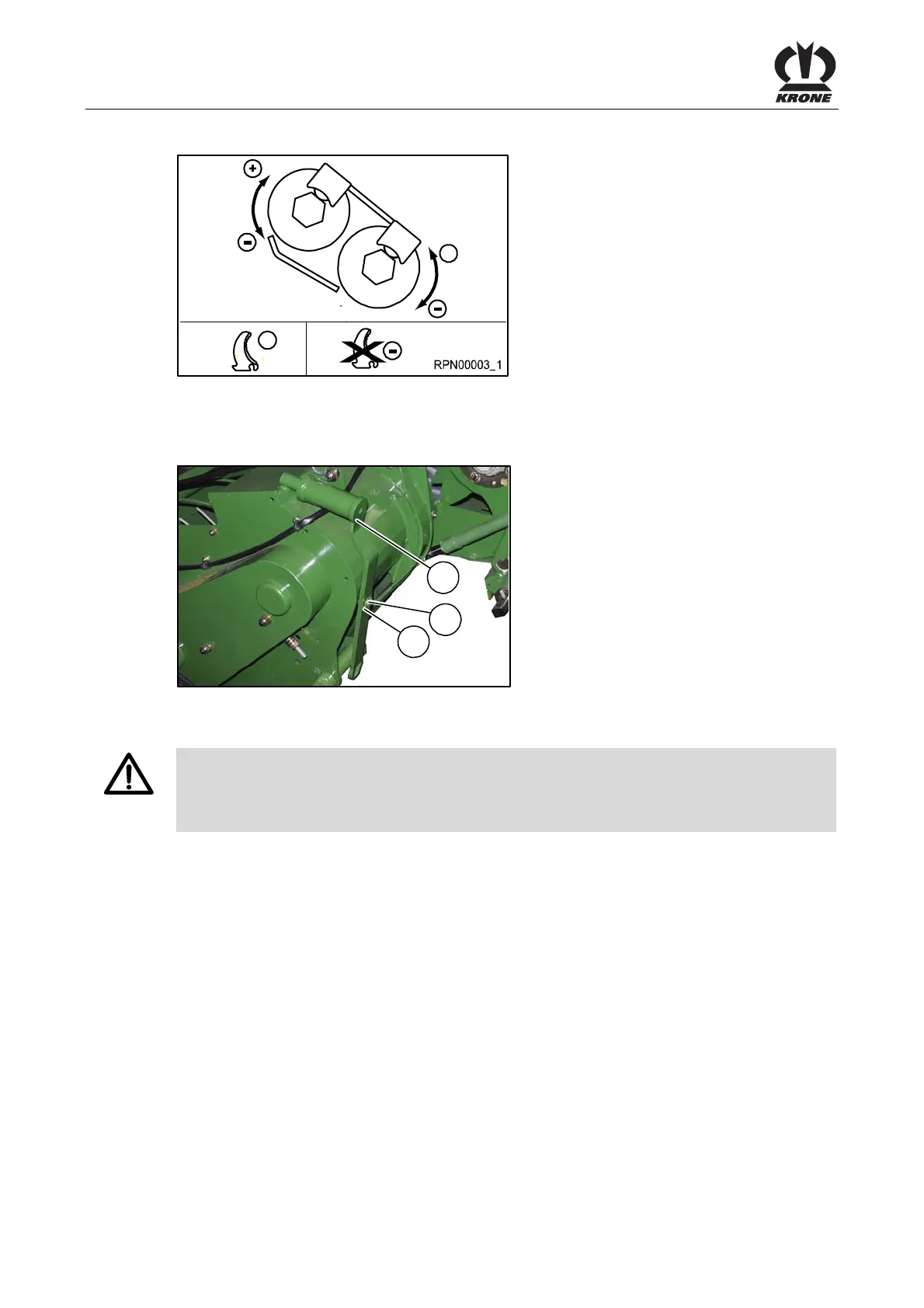

11.11.2 Cutting length
+
+
B
A
Fig. 166
The cutting length is determined by the number of blades.
Use the key supplied to make adjustments.
HDC00012
2
3
1
Fig. 167
The multi-purpose key (1) can be found on the pick-up on the left-hand side of the machine.
CAUTION! - Unexpected movement of multi-purpose key!
The multi-purpose key can move suddenly due to the spring force of the pretensioned blades.
• Particular caution is thus advised when making adjustments to the blade shaft using the
multi-purpose key.
To remove the key:
• Remove the spring cotter pin (2).
• Pull the multi-purpose key (1) off the retaining bolt (3).
After use, push the multi-purpose key (1) back onto the bolt (3) and fix it in place with the spring
cotter pin (2).
