Safety
44
Pos: 38.8 /Überschri ften/Überschri ften 3/P-T/Standbremse / Feststellbremse @ 25\mod_1 242719474426_78. docx @ 253706 @ 33 @ 1
4.7.1 Parking brake
Pos: 38.9 /Überschri ften/Zwischenüber schriften/(Option) @ 295\mod_14119802581 29_78.docx @ 2315566 @ @ 1
(Optional)
Pos: 38.10 /BA/Inbetr iebnahme/Festste llbremse/Warnung - Feststellbremse anzieh en @ 273\mod_140377426613 6_78.docx @ 2056887 @ @ 1
WARNING!
Unexpected movement of the machine!
The machine may move unintentionally if the parking brake is not activated when parking the
machine. Thus there is a risk of serious injuries or death.
• Always apply the parking brake when the tractor is left or the machine is switched off.
Pos: 38.11 /BA/Inbetr iebnahme/Festste llbremse/Festste llbremse Anbringungs ort X-treme @ 230\mod_13933 40387896_78.doc x @ 1844420 @ @ 1

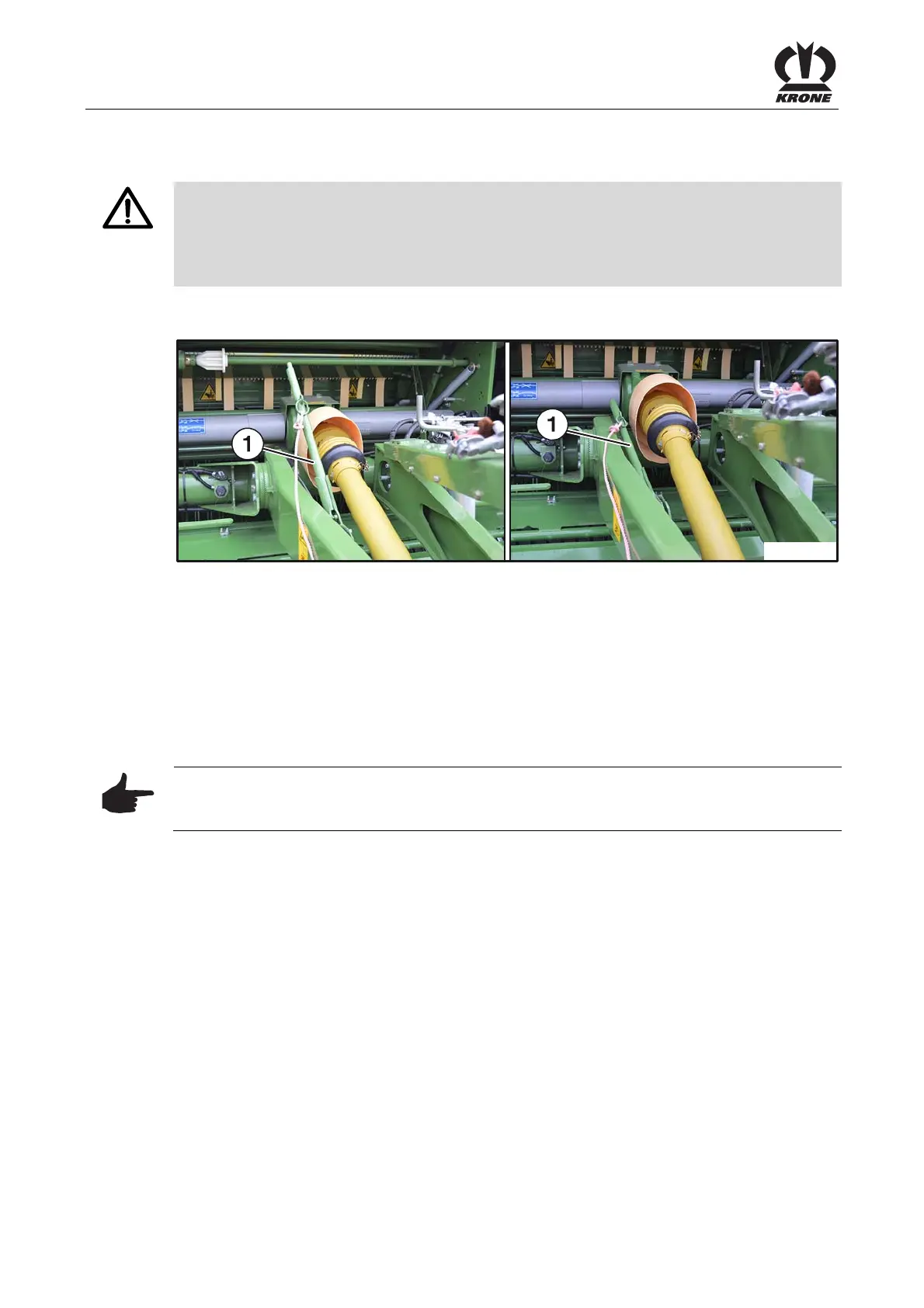

The parking brake (1) is located on the front side of the machine on the drawbar.
Pos: 38.12 /BA/Inbetr iebnahme/Festste llbremse/Bild Festst ellbremse Comprima_F ortima @ 292\mod_14111 17615421_78.docx @ 23039 21 @ @ 1
COM00362
Fig. 11
Pos: 38.13 /BA/Inbetr iebnahme/Festste llbremse/Festste llbremse X-treme @ 230\ mod_1393340686037_78. docx @ 1844664 @ @ 1
a) Parking brake applied b) Parking brake released
The parking brake is used to secure the machine from rolling away accidentally, especially
when the machine is disconnected from the tractor.
To apply the parking brake:
• Press button on the end of the lever and pull lever (1) up as far as it will go.
To release the parking brake:
• Press the button on the end of the lever and push down lever (1) as far as it will go.
Pos: 38.14 /BA/Inbetr iebnahme/Festste llbremse/Hinweis Fes tstellbremse/Un terlegkeile @ 6\mod_121489 9429153_78.doc x @ 96796 @ @ 1
Note
To prevent the machine from rolling away, use the wheel chocks in addition to the parking
brake.
