Operation
239
Pos: 55.114 /Übersc hriften/Überschr iften 2/K-O/Netzbindung @ 33\ mod_12544009023 38_78.docx @ 319495 @ 22 @ 1
11.14 Net Wrapping
Pos: 55.115 /Übersc hriften/Überschr iften 3/A-E/B/B auteile Netzbindung @ 33\mod_1254 401988166_78.doc x @ 319545 @ 33 @ 1
11.14.1 Net wrapping parts
Pos: 55.116 /BA/Bedienu ng /Rundballenpresse/ Netz-Garnbind ung/Bild Bauteile Netz bindung CF/CV @ 74\mod_1308 745050584_78.doc x @ 657651 @ @ 1
RPN00007_6
6
3
9
1
7
2
10
11
4
5
8
14
15
12
13

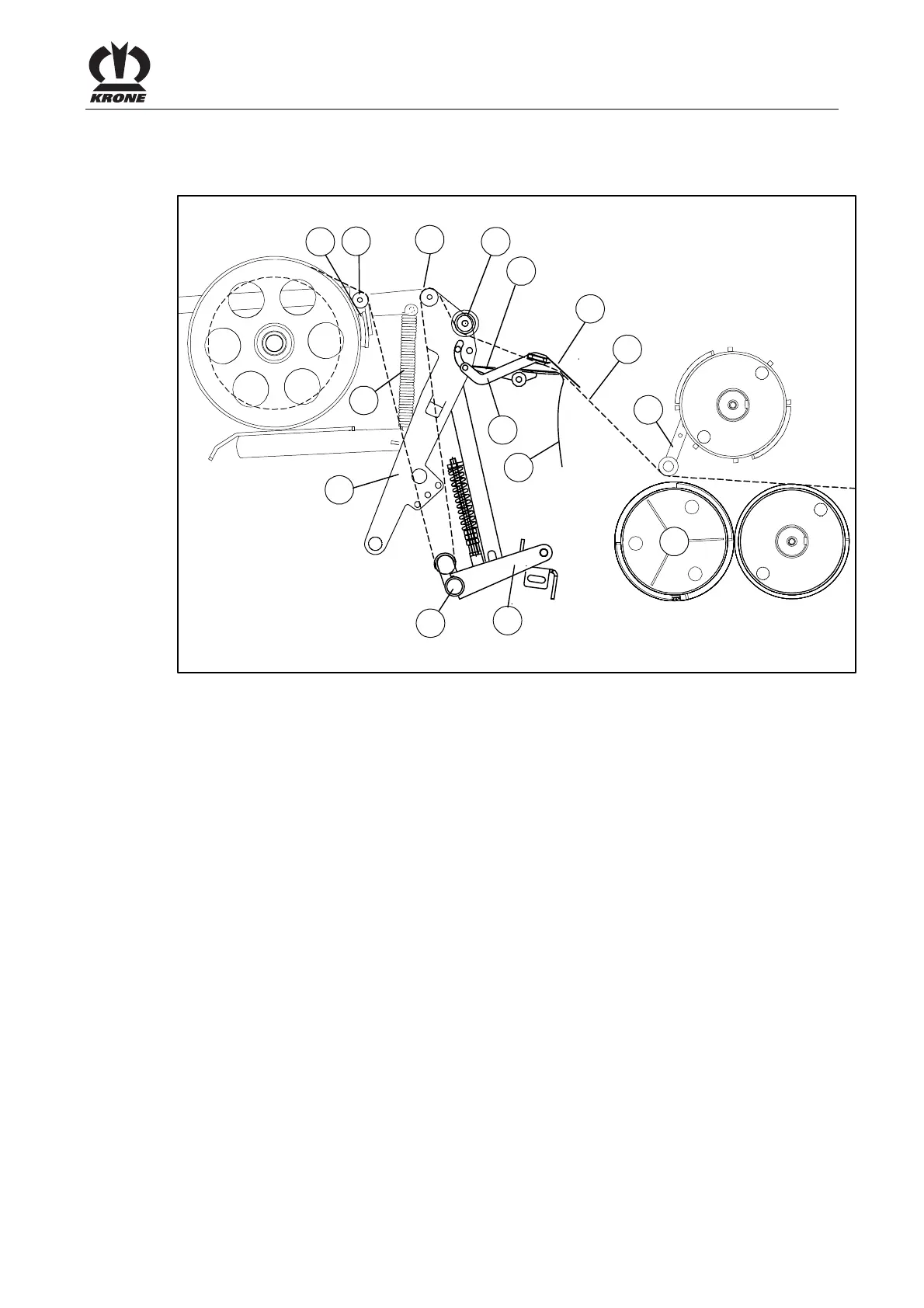

Fig. 180
1 Blade bar
2 Feed roller
3 Net compensation
4 Retaining plate
5 Net brake
6 Net brake spring
7 Net rocker arm
8 Deflection shaft
9 Retaining clip
10 Synthetic cloth
11 Net
12 Spreading bracket
13 Spreading roller
14 Plastic guide
15 Fixed cross tube
Pos: 55.117 /BA/Bedienu ng /Rundballenpresse/ Funktion Netzbind ung CF/CV @ 74\mod_130874 6299827_78.docx @ 65773 5 @ 33 @ 1
11.14.2 Function of the Net Tying
The rocker arm (7) is used to lay the net onto the feed roller (2) and from this roller it is passed
through the compression rollers to the bale. Then it is trailed by the bale. After the wrapping
process is complete, the blade bar (1) is swung and cuts the net.
Pos: 55.118 /Layout Mod ule /---------- -----Seitenumbruc h------------- --- @ 0\mod_1196175311226_ 0.docx @ 4165 @ @ 1
