Krone Comprima CF 155 XC - Adjusting the Sheet Brake

Operation
262
Pos: 55.168.41 /BA/Bedi enung /Rundballenpr esse/Ballenwic kler/Folie in Positio n @ 75\mod_1309333196628 _78.docx @ 661867 @ @ 1
CPN00005
2
1
KR201120
3
2

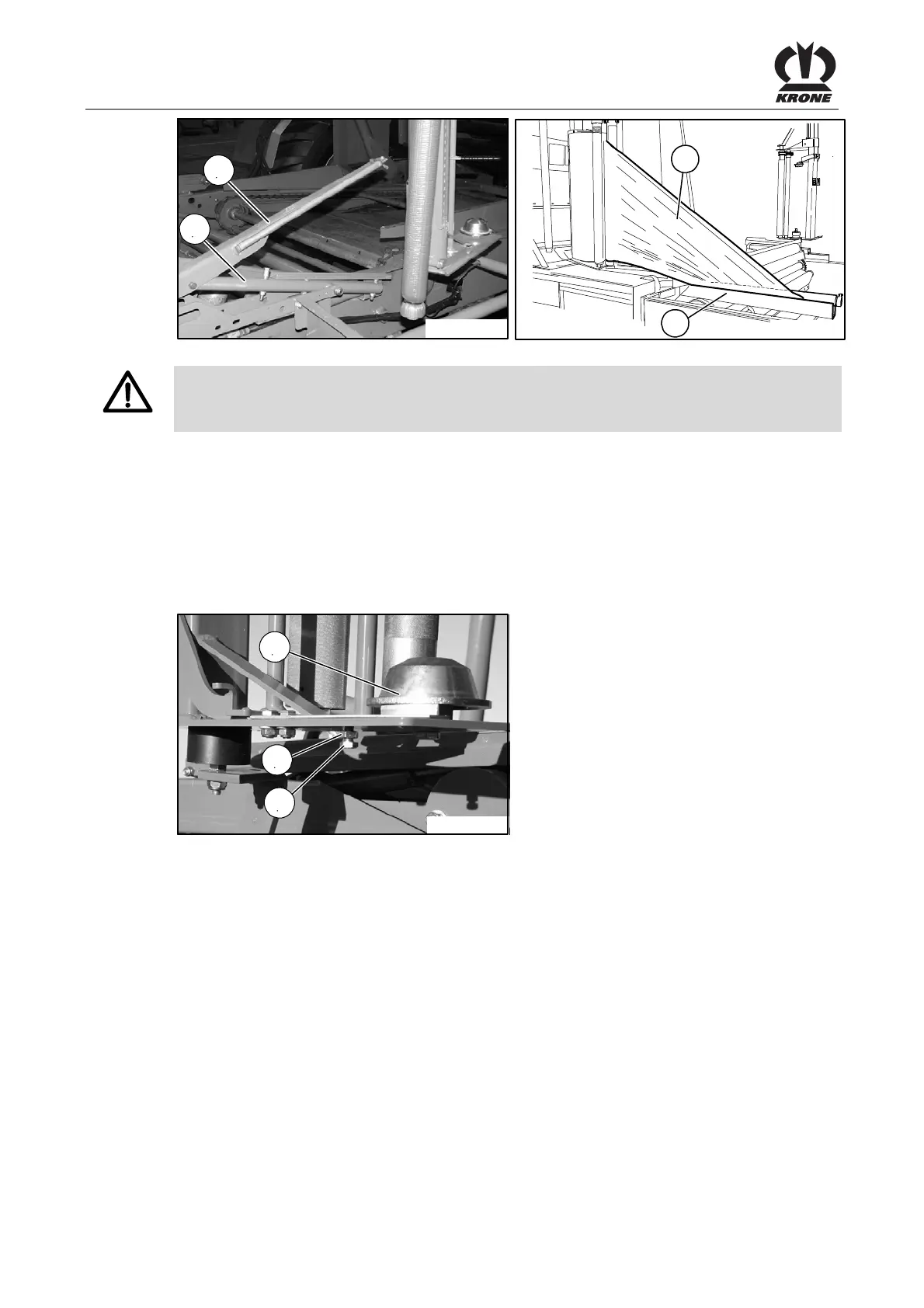

Fig. 202
Warning! – Crushing Hazard in the Sheet Clamping Device!
Effect: Jamming, crushing of fingers
• Do not work on the sheet clamping device (1) as long as parts are moving there
3. Open holding arm (2) (see Open Holding Arms / Close Holding Arms entitled in Chapter
Operation Terminal).
4. Insert the starting end of the sheet in the clamping device.
5. Close the holding arm (2) (see Open / Close Holding Arms in Chapter entitled Operation
Terminal).
After the first bale has been wrapped, the sheet holding arm (2) holds the sheet (3) in position.
Pos: 55.168.42 /Übersc hriften/Übersc hriften 3/A-E/E/ Einstellung Folienbrem se @ 75\mod_130933412791 4_78.docx @ 661909 @ 3 @ 1
11.18.6 Adjusting the Sheet Brake
Pos: 55.168.43 /BA/Bedi enung /Rundballenpr esse/Ballenwic kler/Folienbremse ei nstellen @ 75\mod_13093 34217520_78.doc x @ 661933 @ @ 1
CP400064
7
8
9
Fig. 203
The sheet brake (7) must be readjusted as follows if the sheet roll coasts down:
6. Unscrew the counter nut (8)
7. True up screw (9)
8. Tighten counter nut (8)
