Operation
261
Pos: 55.168.39 /BA/Bedi enung /Rundballenpr esse/Ballenwic kler/Folienrolle vorspannen @ 75\mod_130932 9210994_78.doc x @ 661839 @ @ 1
CP400012_2
1
3
4
3
1
2
2

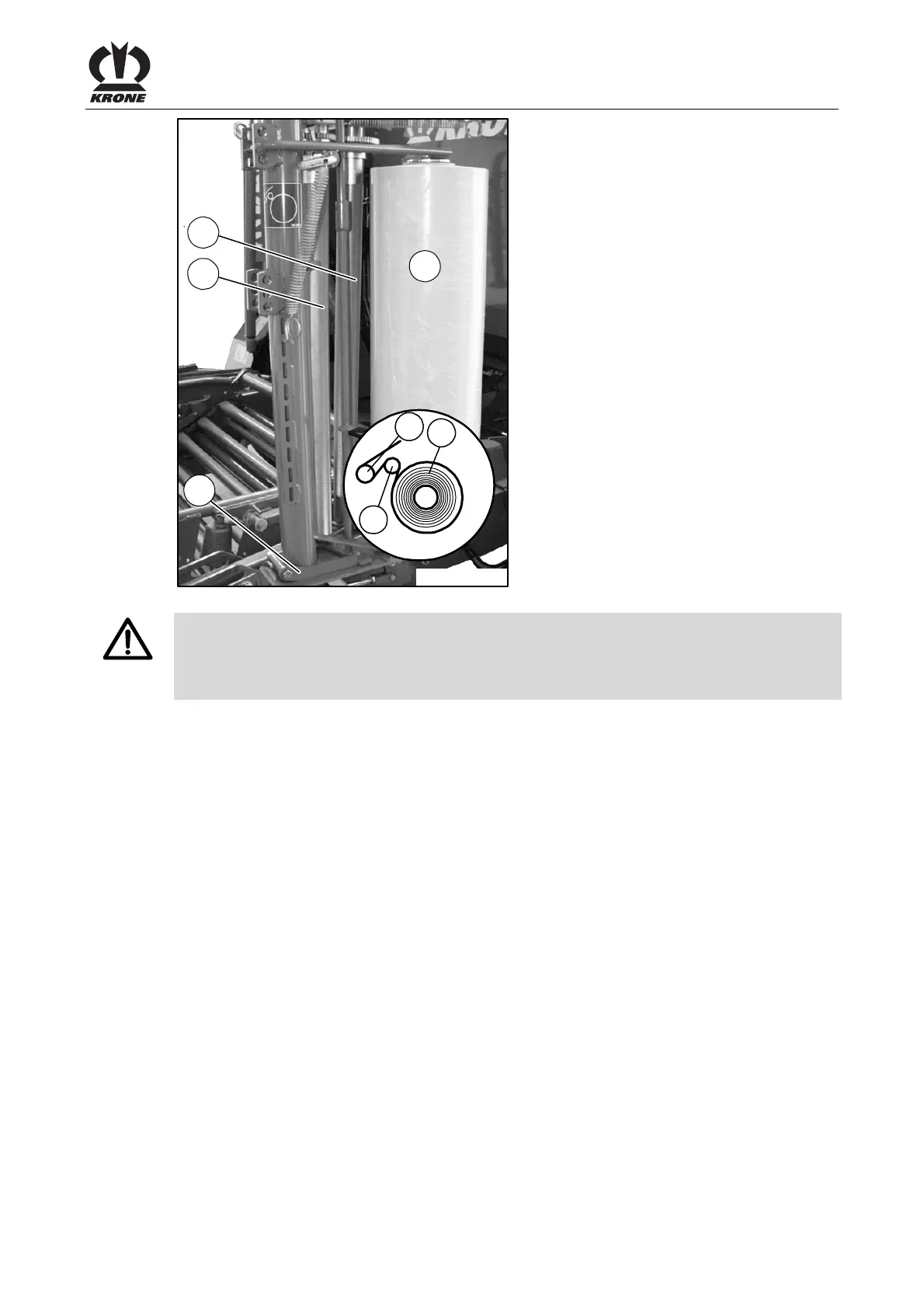

Fig. 201
WARNING! – Fingers Between the Section Rollers!
Effect: Jamming, crushing of fingers
• Do not push the fingers between the section rollers (2,3) as long as parts are moving there
• Do not push the fingers between the section rollers and the section roller mount
The following work steps must be performed on both sheet holders (both sheet holders must
always have the same setting):
1. Guide the sheet of the sheet roll (1) around the forward section roller (2) to the forward
section roller (3).
2. Tension the section rollers again by loosening the locking lever (4).
