11.8 Pick-up
Pos: 55.74 /Übersc hriften/Überschri ften 3/F-J/Grundeins tellung (Einstellen d er Arbeitshöhe) @ 195\ mod_1383656035807_78. docx @ 1652742 @ 33 @ 1
11.8.1 Default Setting (Working Height Setting)
Pos: 55.75 /BA/Einste llungen/Pick- up / Rollenniederhalter /Hinweis Fahren im Vorge wende @ 20\mod_123857849021 3_78.docx @ 221874 @ @ 1
Note
Lift the Pick-up for driving in the headland or when driving backward!
Pos: 55.76 /BA/Sic herheit/8. Voraussetz ungen/Handlungsan weisung für alle Maschi nen/Handlungsan weisung: Maschine stills etzen und sichern @ 274\mod_1404365253849_78.doc x @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 55.77 /BA/Einste llungen/Pick- up / Rollenniederhalter /Pick-up Grundeins tellung Bild CF/CV @ 103\mod_ 1332254711283_78.doc x @ 941870 @ @ 1

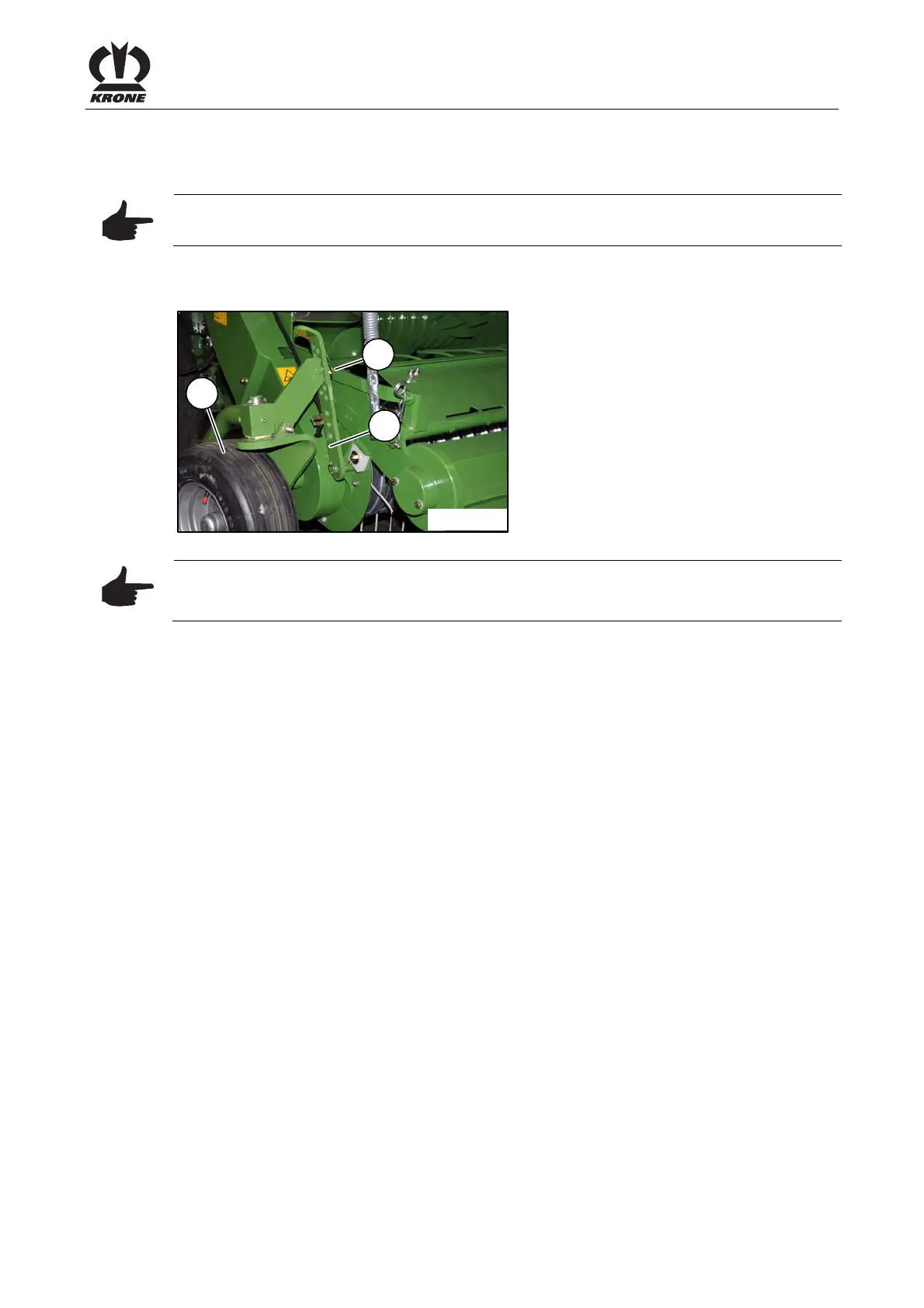

HDC00044
2
1
3
Fig. 162
Pos: 55.78 /BA/Einste llungen/Pick- up / Rollenniederhalter /Pick-up Grundeins tellung VP @ 32\mod_125362355 0687_78.docx @ 315801 @ @ 1
Note
When adjusting the pick-up, the drawbar height of the machine must be adjusted to the tractor
(see chapter "Initial start-up").
The distance from the tines to the ground must be about 20 – 30 mm.
Adjust the pick-up working height according to the prevailing ground conditions.
Default setting (the setting must always be the same on both sides):
• Raise the pick-up (3) hydraulically
• Remove the linch pin (2)
• Set the perforated bar (1) in the required position
• Secure in place using the linch pin (2)
