Maintenance
302
Pos: 59.102.8 /Übersc hriften/Überschr iften 3/U-Z/Umlenkro lle versetzen @ 218\mod_1 390928585702_78.d ocx @ 1769495 @ 3 @ 1
13.14.1 Adjusting the deflection roller
Pos: 59.102.9 /BA/W artung/Rundballenpres se/Umlenkrolle versetzen/Umlenkrol le versetzen_Vorauss etzungen @ 215\mod_1390 811158175_78.doc x @ 1760609 @ @ 1
Prerequisites
The left side protector is raised.
The left plastic protector is detached.
Pos: 59.102.10 /BA/W artung/Rundballenpre sse/Umlenkrol le versetzen/Umlenkr olle versetzen_Bild @ 215\ mod_1390813804816_ 78.docx @ 1761351 @ @ 1
VPN00616
1
2
3
a
b

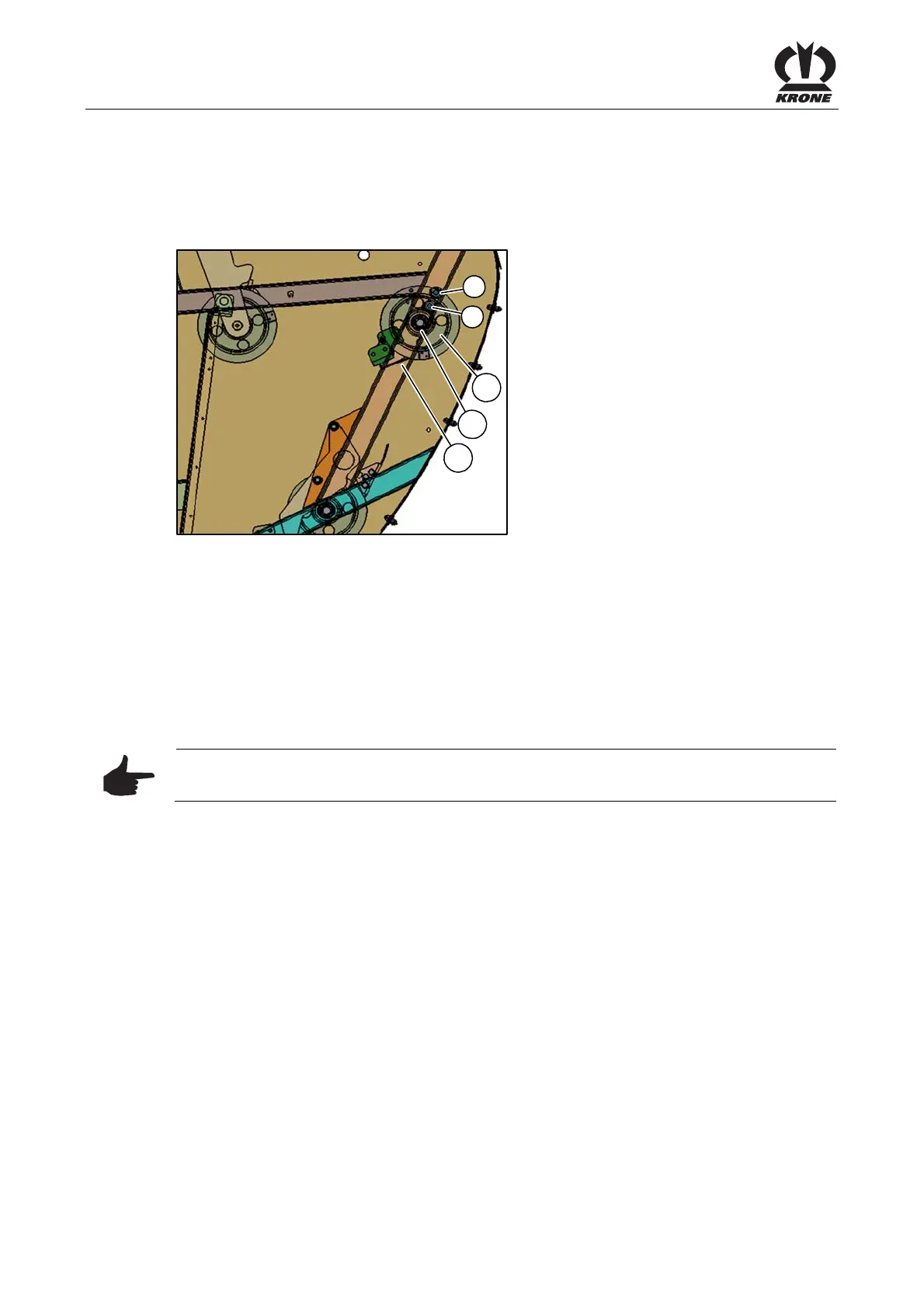

Fig. 236
Pos: 59.102.11 /BA/W artung/Rundballenpre sse/Umlenkrol le versetzen/Umlenkr olle versetzen_Text @ 237\ mod_1394637069965_78. docx @ 1879416 @ @ 1
• Dismount scraper (1).
Remove the threaded pin from the adjusting ring on the deflection pulley (2) and remove the
adjusting ring.
Dismount deflection shaft (2) and mount with deflection shaft (3) in position (a).
Push the adjusting ring onto the deflection shaft (2) and secure with threaded pin.
Mount scraper (1) at a higher position.
Check whether the tensioning rocker still touches the belt (brush marks). Move scraper and
deflection pulley up into hole (b), if necessary.
Pos: 59.102.12 /BA/W artung/Rundballenpre sse/Umlenkrol le versetzen/Hinweis: Umlenkrolle nur 1 Loch höher montieren @ 215\mod_139 0814073967_78.doc x @ 1761437 @ @ 1
Note
Only mount the deflection roller (3) 1 hole higher as otherwise the belt is unnecessary loaded.
