13.14 Checks and maintenance on rear floor conveyor
Pos: 59.102.2 /BA/Si cherheit/8. Vor aussetzungen/Handlungs anweisung für alle Masc hinen/Handlungsan weisung: Maschine stil lsetzen und sicher n @ 274\mod_1404365253849_78. docx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 59.102.3 /Abkürzu ngen /Abkürzungen spr achneutral/Rundba llenpressen/Compr ima CV 150 / CV 210 XC @ 199\mod_13849 39505399_0.doc x @ 1676121 @ @ 1
Comprima CV 150 / CV 210 XC
Pos: 59.102.4 /BA/W artung/Rundballenpres se/Umlenkrolle versetzen/Hinweis: Pr üfung nach ca. 1000 produzi erten Ballen durc hführen @ 215\mod_13908164 03004_78.docx @ 1761845 @ @ 1
Note
Perform the following check after producing around 1000 bales to prevent damage or tearing
of the rear floor conveyor.
Pos: 59.102.5 /BA/W artung/Rundballenpres se/Umlenkrolle versetzen/Abstand zwisc hen den Spannschwingen pr üfen_Bild @ 215\mod_13 90813703411_78.doc x @ 1761322 @ @ 1
a
3
COM00348
1 2
b
Fig. 235
Pos: 59.102.6 /BA/W artung/Rundballenpres se/Umlenkrolle versetzen/Abstand zwisc hen den Spannschwingen pr üfen_Text @ 215\mod_ 1390812253560_78. docx @ 1761294 @ @ 1

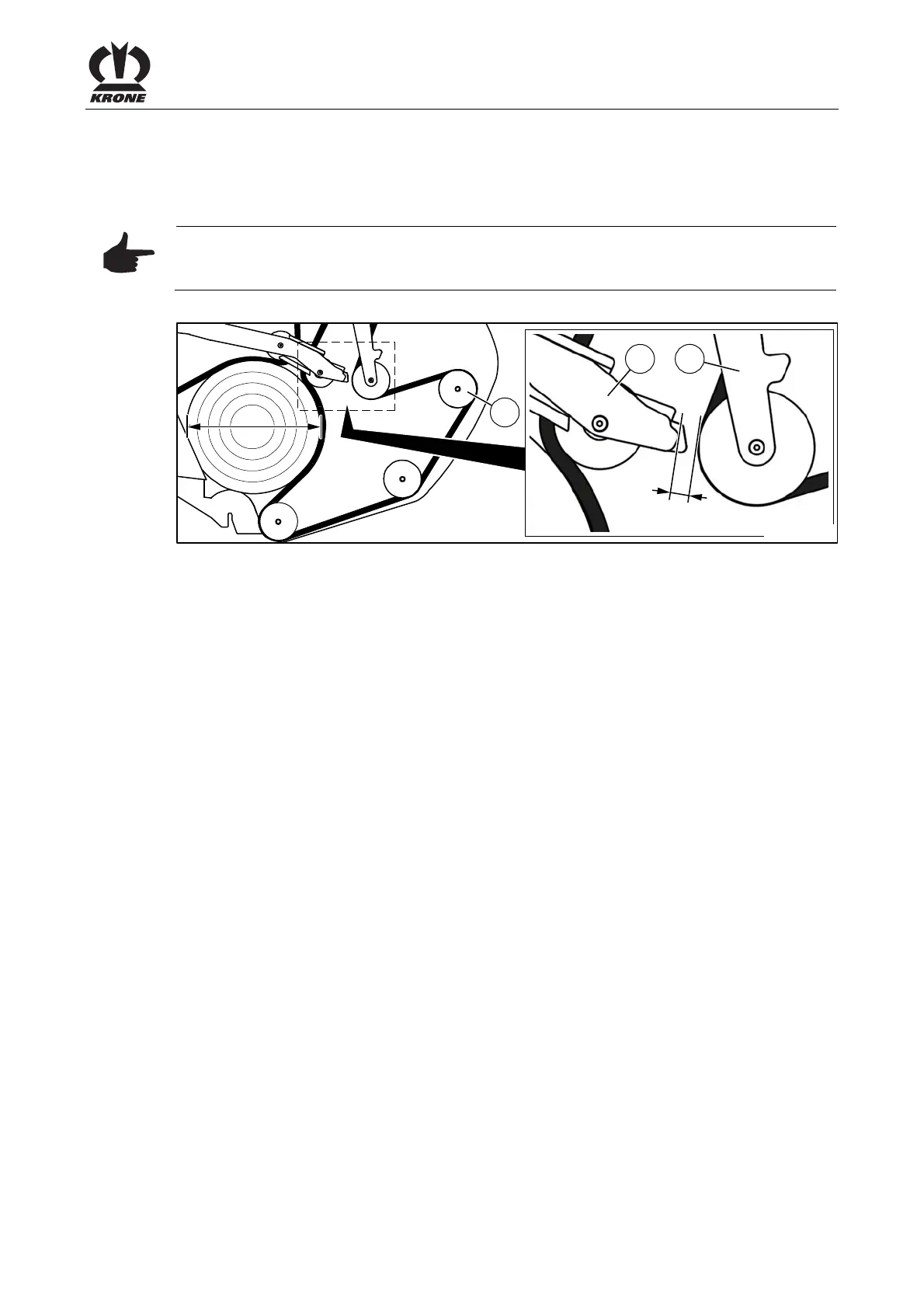

At a bale diameter (a) between 800 and 1000 mm, check whether the distance (b) between the
front tensioning rocker (1) and the rear tensioning rocker (2) is at least 20 mm.
If the distance is at least 20 mm, everything is OK.
If the distance is less than 20 mm, the deflection roller (3) must be adjusted, see "Adjusting the
deflection roller" maintenance chapter.
