Comprima CV 210 XC
Pos: 59.53 /BA/W artung/Bremsanlage/Über tragungseinri chtung einstellen @ 275\mod_1 404392540031_78.d ocx @ 2067618 @ @ 1
After the first few kilometres of driving, the transfer mechanisms and the brake linings of the
brake drum will have adjusted. The play resulting from this must be compensated for.
Pos: 59.54 /Übersc hriften/Überschri ften 3/A-E/E/Einste llung mit hydraulische m Gestängesteller @ 102\ mod_1331027346833_78. docx @ 901577 @ 33 @ 1
13.7.1 Setting of the Brakes with Hydraulic Linkage Setter
Pos: 59.55 /BA/W artung/Rundballenpres se/Bild Tandemachse CF/CV HD @ 101\mod_133095821853 5_78.docx @ 900714 @ @ 1
HDC00036
b
a
1
2

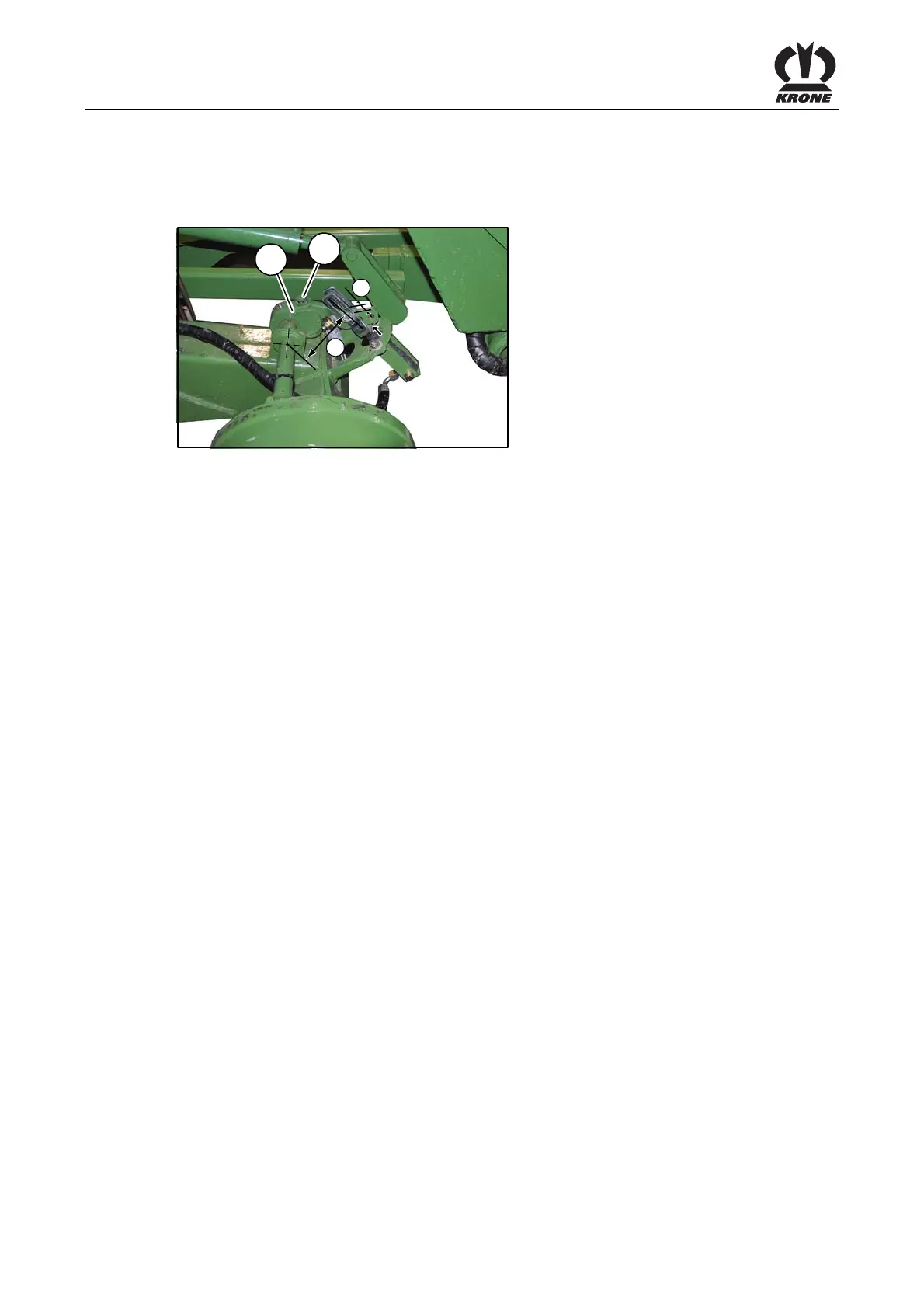

Fig. 227
Pos: 59.56 /BA/W artung/Rundballenpres se/Einstellung Gestän gesteller CF/CV HD @ 101\ mod_1330959400904_78. docx @ 900835 @ @ 1
• Check the linkage setter (1) every 200 operating hours.
• Activate the linkage setter (1) manually in the pressure direction. If the clear path (a) is max.
35mm, the setting of the linkage setter (1) must be modified.
• Readjust the linkage setter (1) by using an adjusting screw (2).
• Set the clear path (a) to 10 - 12 % of the connected brake lever length (b).
Example:
In case of a lever length of b = 125 mm, the clear path must be 12 - 15 mm.
