Safety
47
Pos: 38.29 /Übersc hriften/Überschri ften 3/A-E/A/Abstel lstütze @ 109\mod_13353559 63452_78.docx @ 976541 @ 33 @ 1

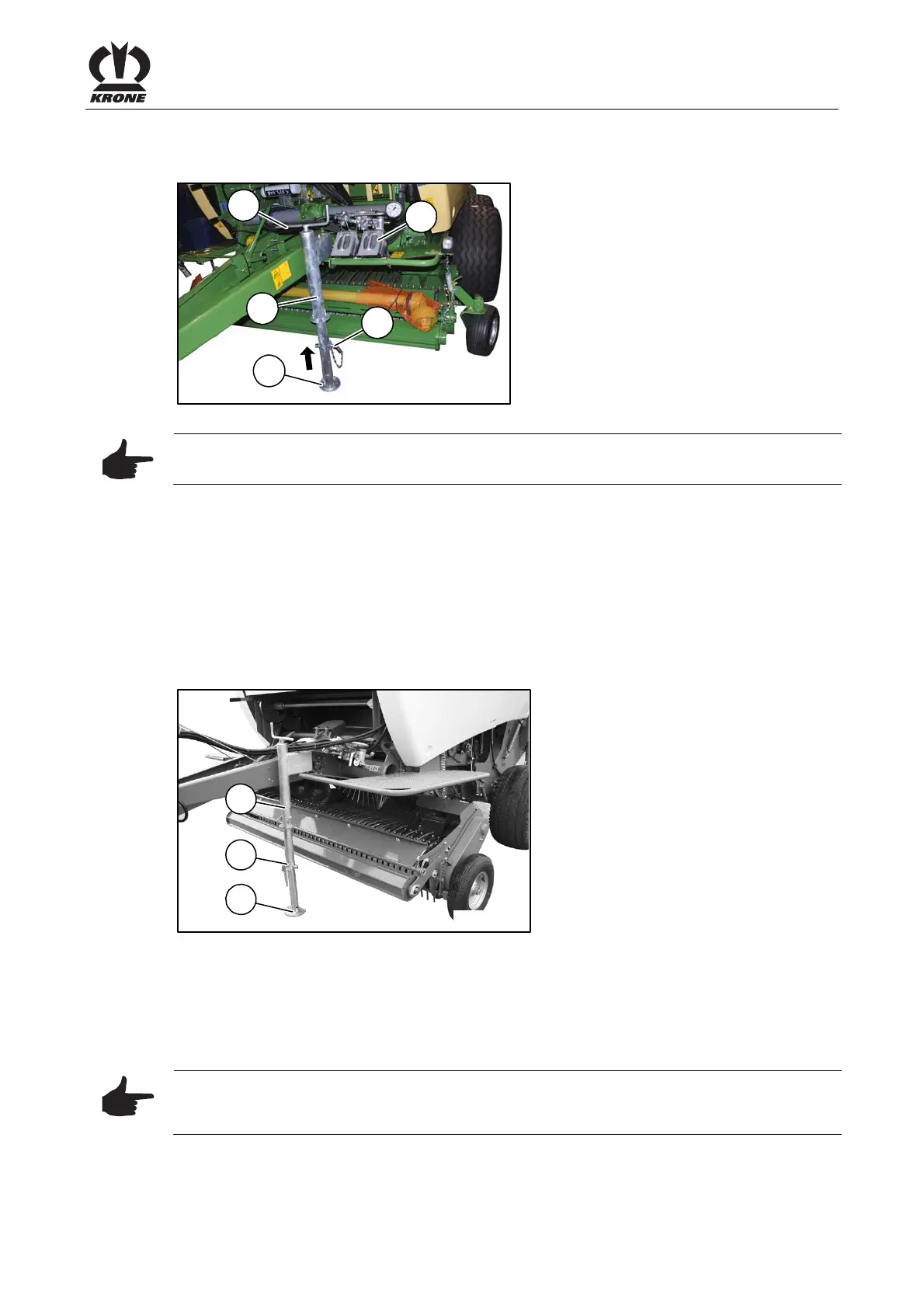

4.7.8 Parking Support
Pos: 38.30 /BA/Sic herheit/Rundballenpr esse/Allgemeiner Text Abstellstütze Ul tima_Comprima_Forti ma @ 307\mod_1416475698656_ 78.docx @ 2386466 @ @ 1
The parking support ensures that the machine is stable when it is not hitched to the tractor.
Pos: 38.31 /BA/Inbetr iebnahme/Rundballe npresse/Bild Abste llstütze hoch CF_CV HD @ 99\mo d_1329916405776_78.doc x @ 885098 @ @ 1
HDC00018
1
2
5
3
4
Fig. 15
Pos: 38.32 /BA/Inbetr iebnahme/Rundballe npresse/Hinweis Abs tellstütze bewegen @ 32\ mod_1253539702220_78. docx @ 314734 @ @ 1
Note
Risk of hands and feet when the parking support is actuated!
Pos: 38.33 /BA/Inbetr iebnahme/Rundballe npresse/Abstell stütze hochdrehen For tima V 1500 MC @ 32\mod_12535407330 33_78.docx @ 314784 @ @ 1
To raise the parking support:
• As soon as the machine is connected to the tractor, turn the crank (1) several revolutions
clockwise until there is no more weight on the parking jack (3).
• Withdraw the locking bolt (5) on the lower part of the parking support (2), push in the
parking support (2) and secure it in position with the locking bolt (5).
• Then crank the parking support (2) up all the way.
• Turn the parking jack (3) so that the flat side is facing the pick-up.
Pos: 38.34 /BA/Fahren und Transport/Rundba llenpresse/Bild Abst ellstütze runter Compr ima @ 66\mod_130217391161 5_78.docx @ 615037 @ 33 @ 1
4.7.9 Lowering the Parking Support
1
2
3
RPN00037
Fig. 16
Pos: 38.35 /BA/Fahren und Transport/Rundba llenpresse/Kurbel gege n Uhrzeigersinn drehe n @ 295\mod_141198255196 4_78.docx @ 2315731 @ @ 1
• Turn the crank on the parking support several rotations anticlockwise.
Pos: 38.36 /BA/Fahren und Transport/Rundba llenpresse/Abstel lstütze positionier en @ 32\mod_125361758407 8_78.docx @ 315512 @ @ 1
• Remove stake bolt (2), bring the support pipe out of the parking support (1) and then secure
again with the stake bolt (2).
• Crank the support plate (3) tightly onto the ground until pressure on the drawbar has been
relieved.
Pos: 38.37 /BA/Er stinbetriebnahme/Großpac kenpressen/Abs tellstütze/Abste llstütze Standfläc he vergrößern_Hinwei s @ 302\mod_14139682819 21_78.docx @ 2353503 @ @ 1
Note
In order to increase the base of the support jack when the ground is soft, use a suitable
support.
