Krone Comprima CF 155 XC User Manual

KRONE ISOBUS Terminal
107
Pos: 48.13 /Übersc hriften/Überschri ften 3/K-O/Multifunk tionshebel an CCI Termin al anschließen (Traktor ohne ISOBUS System) @ 150\m od_1361884898237_78.doc x @ 1341095 @ 3 @ 1
8.2.2 Connecting the Multi-Function Lever to the CCI Terminal (on tractors without ISOBUS
system)
Pos: 48.14 /BA/Inf o-Center/CCI-I SOBUS-Terminal/Multif unktionshebel an CCI Terminal anschließen ( Traktor ohne ISOBUS Syste m) Bild @ 150\mod_1361884200 857_78.docx @ 1341002 @ @ 1
CC000546
5
1
2
9
3
4
7
8
6

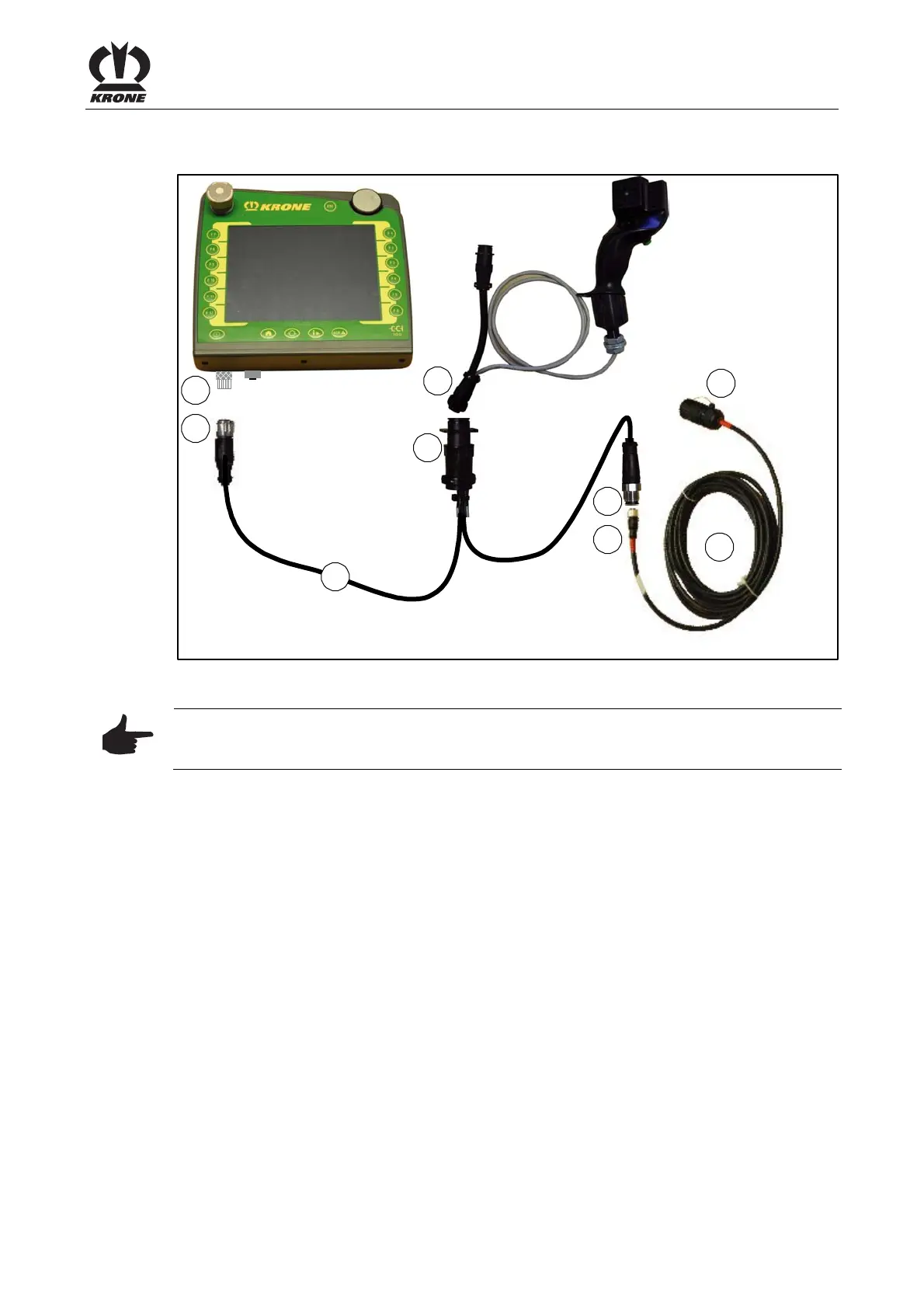

Fig. 75
Pos: 48.15 /BA/Inf o-Center/CCI-I SOBUS-Terminal/Multif unktionshebel an CCI Terminal anschließen ( Traktor ohne ISOBUS Syste m) Hinweis @ 150\mod_1361884 381393_78.doc x @ 1341031 @ @ 1
Note
The terminal is connected to the multi-function lever via a special cable set (9) which can be
ordered by stating the Krone product no. 20 081 676 0.
Pos: 48.16 /BA/Inf o-Center/CCI-I SOBUS-Terminal/Multif unktionshebel an CCI Terminal anschließen ( Traktor ohne ISOBUS Syste m) Text @ 150\mod_1361884014 200_78.docx @ 1340973 @ @ 1
• Connect plug (2) of cable set (9) with the socket (1) (CAN1-IN) of the terminal
• Connect socket (3) of cable set (9) with the plug (4) of the cable set (5)
• Connect ISO plug (8) (9-pole) of cable set (9) with the ISO socket (7) (9-pole) of the multi-
function lever
• Connect plug (6) (7-pole) of cable set (5) with the socket (7) (7-pole) of the machine
Pos: 48.17 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0. docx @ 4165 @ @ 1
