Krone Comprima CF 155 XC - 13.16.1.4 Conveyor Auger Drive; 13.16.1.5 Roller Drive

Maintenance
308
Pos: 59.129 /Übersc hriften/Überschr iften 4/F-J/Förder schneckenantrieb @ 75\mod_1 309442602928_78.d ocx @ 663600 @ 44 @ 1
13.16.1.4 Conveyor Auger Drive
Pos: 59.130 /BA/Sic herheit/8. Vorausset zungen/Handlungsan weisung für alle Maschi nen/Handlungsanweisu ng: Maschine still setzen und sichern @ 274\ mod_1404365253849_78.doc x @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 59.131 /BA/W artung/Rundballenpres se/Spannen Ketten Förder schnecke CF/CV @ 75\mod_1 309442690939_78.doc x @ 663624 @ @ 1
1
RPN00057_1
2
a
3

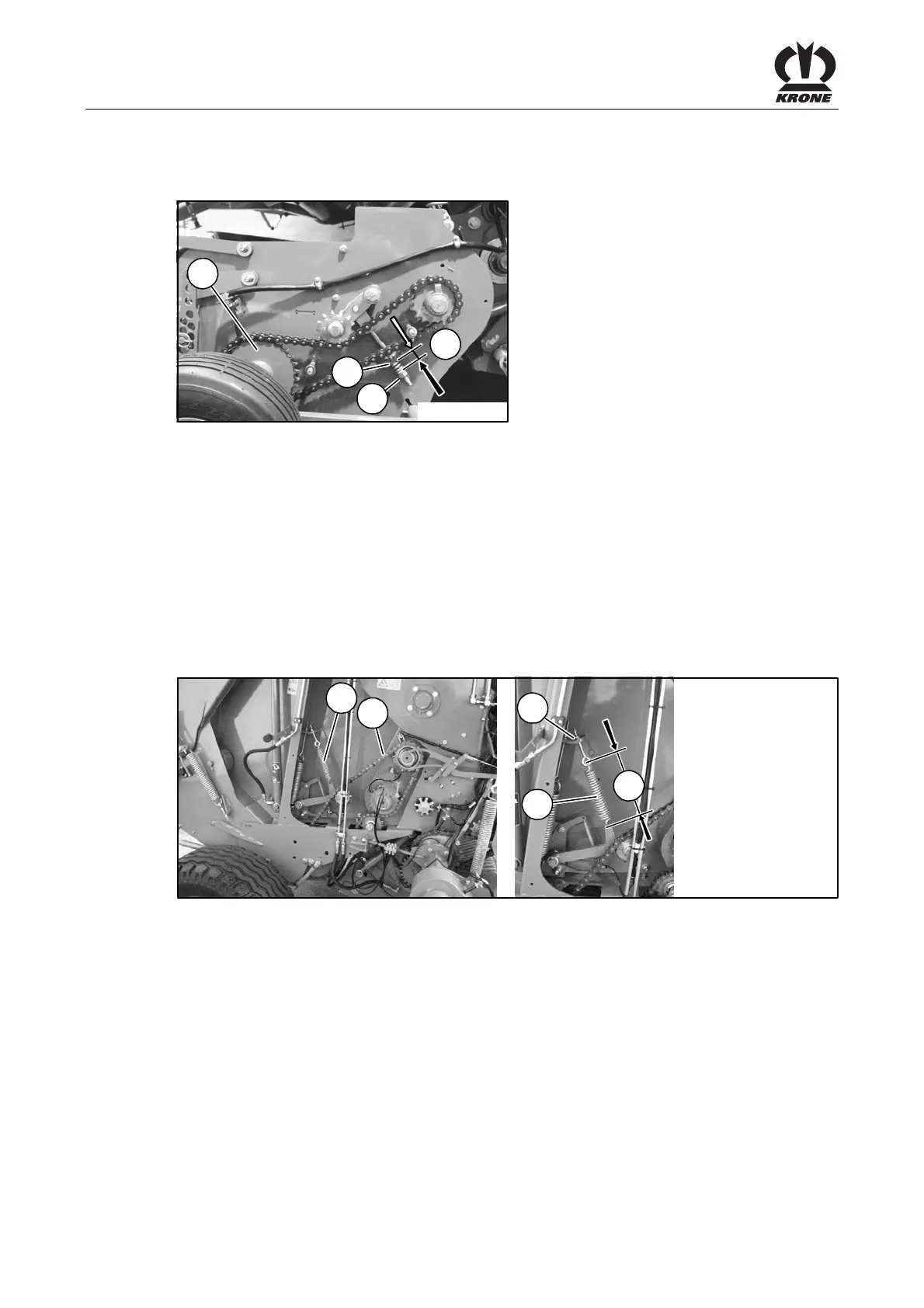

Fig. 243
The auger conveyor drive (1) is located on the pick-up on the left-hand side of the machine.
The drive chain is tensioned by the clamping element (2).
Check the Chain Tension:
The length of the spring when tightened must be a = 30 mm.
Correct the Chain Tension:
• Turn the nut (3) to increase or reduce the spring tension of the compression spring (2) until
distance a= approx. 30 mm is set
Pos: 59.132 /Übersc hriften/Überschr iften 4/U-Z/Walzenan trieb @ 75\mod_1309443286 065_78.docx @ 663656 @ 44 @ 1
13.16.1.5 Roller Drive
Pos: 59.133 /BA/Sic herheit/8. Vorausset zungen/Handlungsan weisung für alle Maschi nen/Handlungsanweisu ng: Maschine still setzen und sichern @ 274\ mod_1404365253849_78.doc x @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 59.134 /BA/W artung/Rundballenpres se/Spannen Ketten Walzen antrieb CF/CV @ 75\mod_1 309443380216_78.doc x @ 663680 @ @ 1
1
RPN00055
2
a
2
3
Fig. 244
The roller drive (1) is located on the right side of the machine.
Check the Chain Tension:
The length of the spring when tightened must be a = 220 mm.
Correct the Chain Tension:
• Turn the nut (3) to increase or reduce the spring tension of the compression spring (2) until
distance a= approx. 90 mm is set
