6.11 Using the bale cloth
Pos: 44.53.2 /BA/I nbetriebnahme/Rundbal lenpresse/Ballen tuch/Ballentuch ver wenden @ 192\mod_138201 0307551_78.docx @ 1636 055 @ @ 1
The bale cloth protects the film on the wrapped bale from damage when the bale is put down on
the ground.
Pos: 44.53.3 /BA/S icherheit/8. Vor aussetzungen/Handlungsa nweisung für alle Maschi nen/Handlungsan weisung: Maschine sti llsetzen und sic hern @ 274\mod_140436525384 9_78.docx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 44.53.4 /BA/I nbetriebnahme/Rundbal lenpresse/Ballen tuch/Ballentuch dem ontieren/montieren _Bild @ 192\mod_138201 3181998_78.doc x @ 1636286 @ @ 1
COM00343
1
5
8
7
1
7
6
5
3
2
4
4

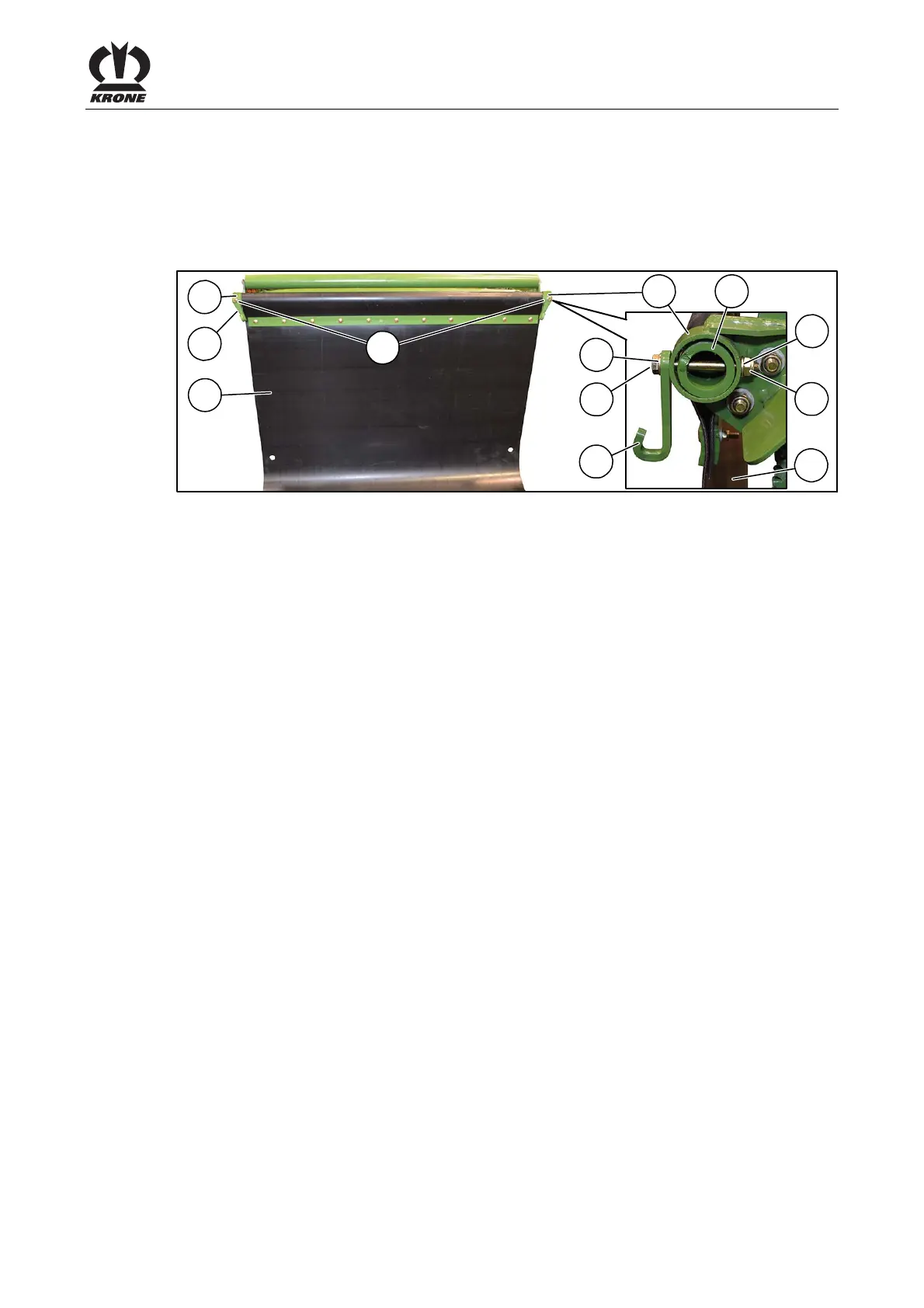

Fig. 53
Pos: 44.53.5 /BA/I nbetriebnahme/Rundbal lenpresse/Ballen tuch/Ballentuch dem ontieren/montieren _Text @ 192\mod_1382013 164777_78.docx @ 1636257 @ @ 1
Removing the bale cloth (1) when used without film wrapper:
• Remove the screw connections (2) on the right and left.
• Pull the support tube (3) out of the holders (4) and bale cloth.
• Store the support tube and bale cloth in a dry and clean location.
Fitting the bale cloth (1) when used with film wrapper:
• Guide the support tube (3) through the holders (4) and bale cloth.
• Attach the support tube and the hooks (5) on the right and left with hexagonal head screw
(6), washers (7) and locknut (8).
