Start-up
79
Pos: 44.25 /Übersc hriften/Überschri ften 2/A-E/Druc kluftanschlüsse bei Druc kluftbremse @ 0\mod_12011613 04258_78.docx @ 51103 @ 22 @ 1
6.5 Compressed Air Connections for the Compressed Air Brake
Pos: 44.26 /BA/Sic herheit/2. Vorangeste llte Warnhinweise/W arnung - Versagen der Dr uckluftbremsanlage @ 273\ mod_1403777396384_7 8.docx @ 2056965 @ @ 1
WARNING!
Danger to life due to failure of the brake system or unexpected movement of the
machine.
Pneumatic lines that become detached or worn through pneumatic lines will cause the brake
system to fail. Thus there is a risk of serious injuries or death.
• Lay the pneumatic lines so that they do not rub or tension. Furthermore they should not be
jammed or touch other parts (e.g. tractor tyres).
The machine may move unintentionally if the order of the pneumatic lines is interchanged when
connecting them. Thus there is a risk of serious injuries or death.
• Connect the yellow coupling head first.
• Then connect the red coupling head.
• After having connected the quick couplings, check that they fit perfectly.
Pos: 44.27 /BA/Inbetr iebnahme/Druc kluftbremse/Sonderausr üstung Druckluftbr emse @ 32\mod_12536017073 12_78.docx @ 314936 @ @ 1
The machine can optionally be equipped with a dual-line compressed air braking system.
The coupling heads are connected to the machine for attachment of the reservoir (red) and
brake line (yellow) of the tractor.
Pos: 44.28 /BA/Sicherheit/Module Achtung/ WARNUNG - Druckluftbremse Straßenfahrt Fortima V 1500 MC @ 311\ mod_1418810904684_78. docx @ 2408485 @ @ 1
WARNING!
Risk of accident due to insufficient brake force.
• For road travel, driving is permitted in position (2) “Full load” only.
• In the “Half load” or “Zero load” position, the braking effect can be adapted (reduced), e.g.
when working on wet meadows.
Pos: 44.29 /BA/Sic herheit/8. Voraussetz ungen/Handlungsan weisung für alle Maschi nen/Handlungsan weisung: Maschine stills etzen und sichern @ 274\mod_1404365253849_78.doc x @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 44.30 /BA/Inbetr iebnahme/Druc kluftbremse/Druckluf tanschlüsse Druckluf tbremse Fortima V 1500 MC @ 32\ mod_1253601964687_7 8.docx @ 314965 @ @ 1
1
1
2
CP102220

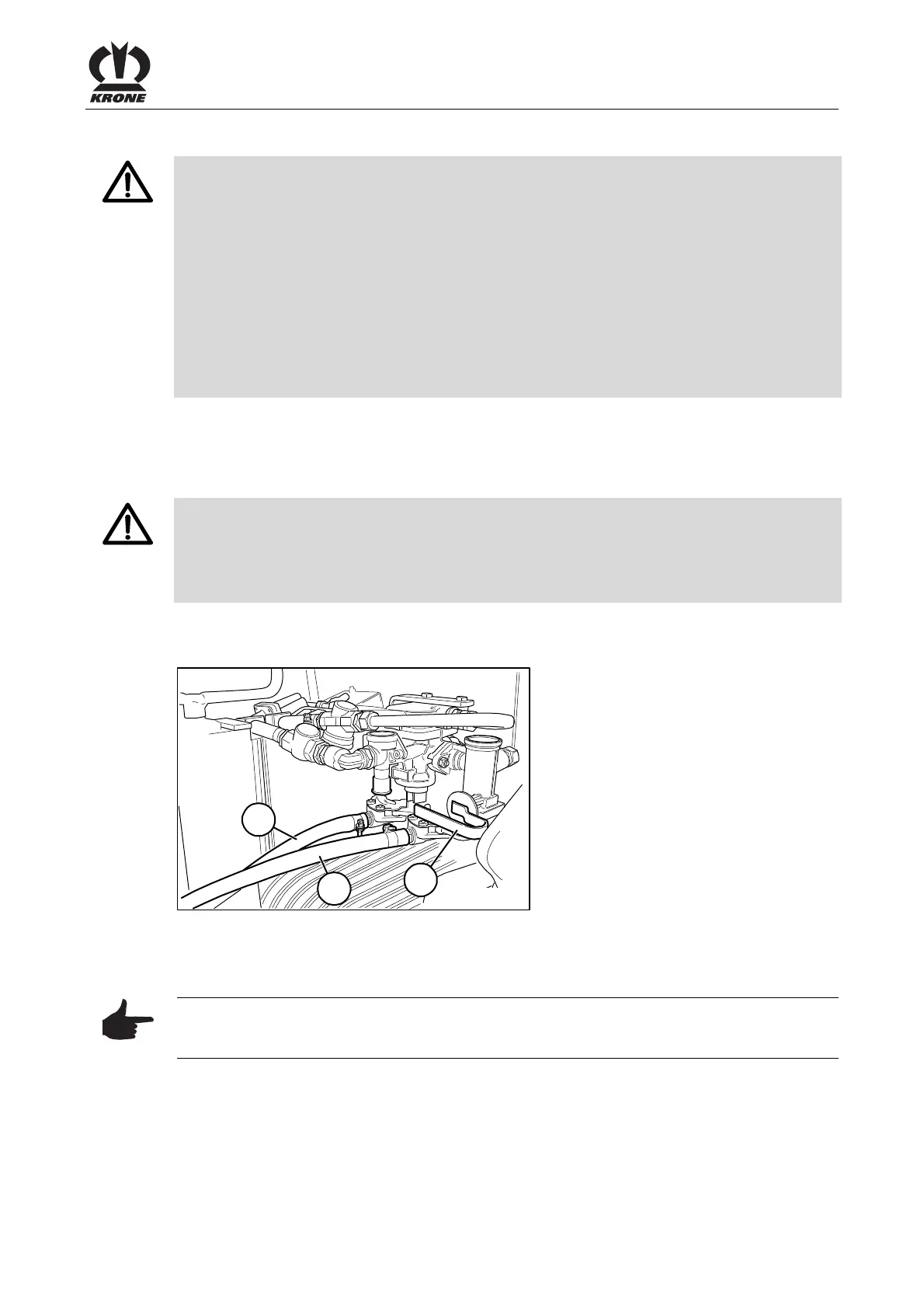

Fig. 45
• Insert the coloured compressed air hose couplings (1) into the correspondingly coloured
couplings on the tractor.
Note
Always connect the yellow coupling head first, then the red one. Detach the couplings in
reverse order.
