Start-up
78
KR-1-080
2
1

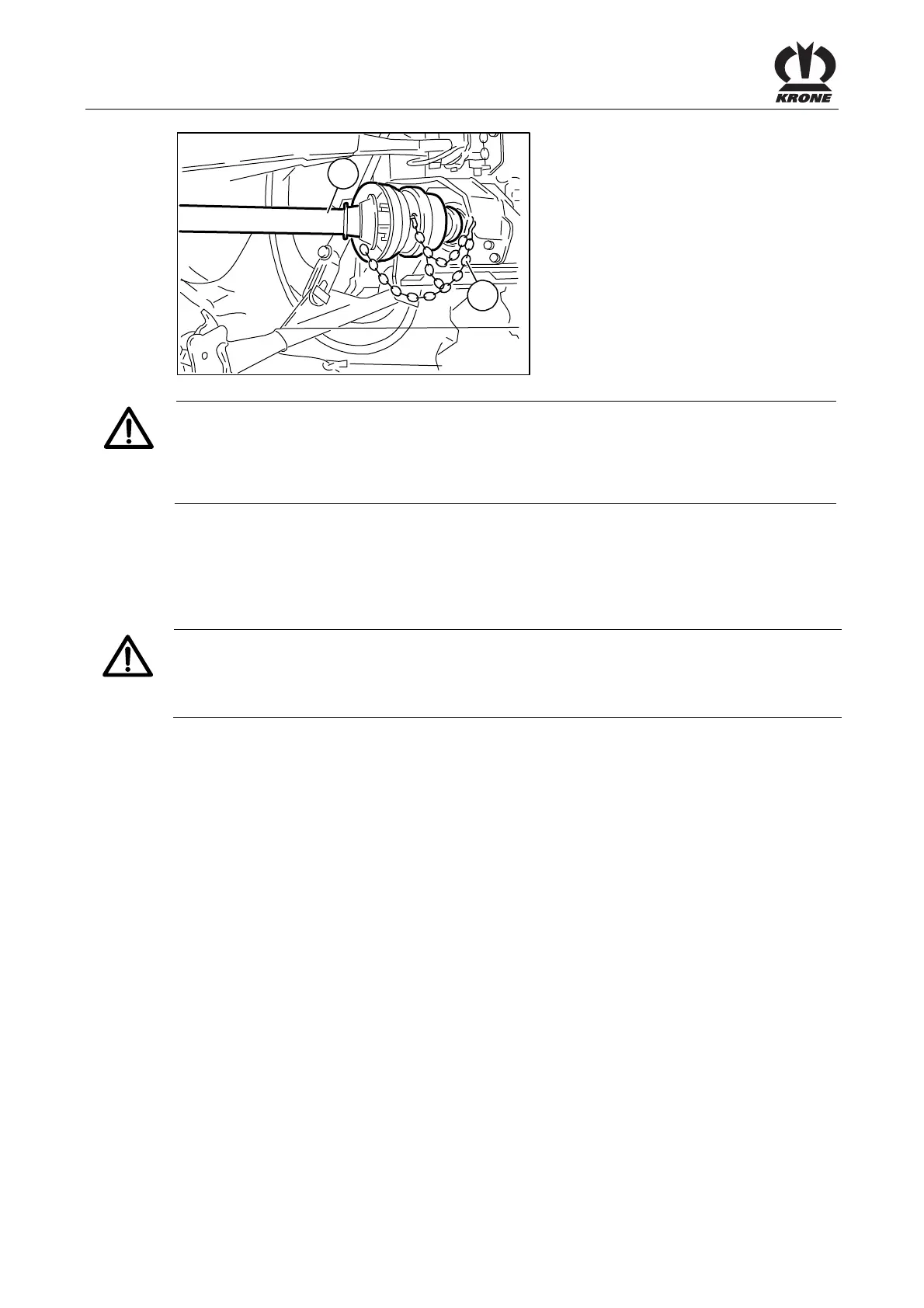

Fig. 44
CAUTION!
Contact with parts of the tractor or the machine may result in damages to the machine or to
the universal shaft
• Make certain there is sufficient free space in the swivel range of the PTO shaft in all
operating states.
Tractor Side:
• Slide universal shaft (1) on the tractor PTO shaft and secure it
• To prevent the PTO shaft from turning, guide the safety chain (2) under the universal shaft
guard and insert it onto the tractor
Pos: 44.23 /BA/Sic herheit/Gelenkwelle/A chtung - Gelenkwelle ni cht richtig aufgestec kt ohne Schwungrad @ 159\ mod_1365508875524_78 .docx @ 1410510 @ @ 1
ATTENTION! - Universal shaft not correctly attached.
Effect: Damage to the universal shaft or to the machine
• Ensure that the safety device of the universal shaft is locked into place after installation.
• Use only the universal shaft supplied by the factory.
