Setting of Spring for Front Floor Conveyor Tension
The dimensions X and Z on the right-hand and left-hand side of the machine must be set to the
following values:

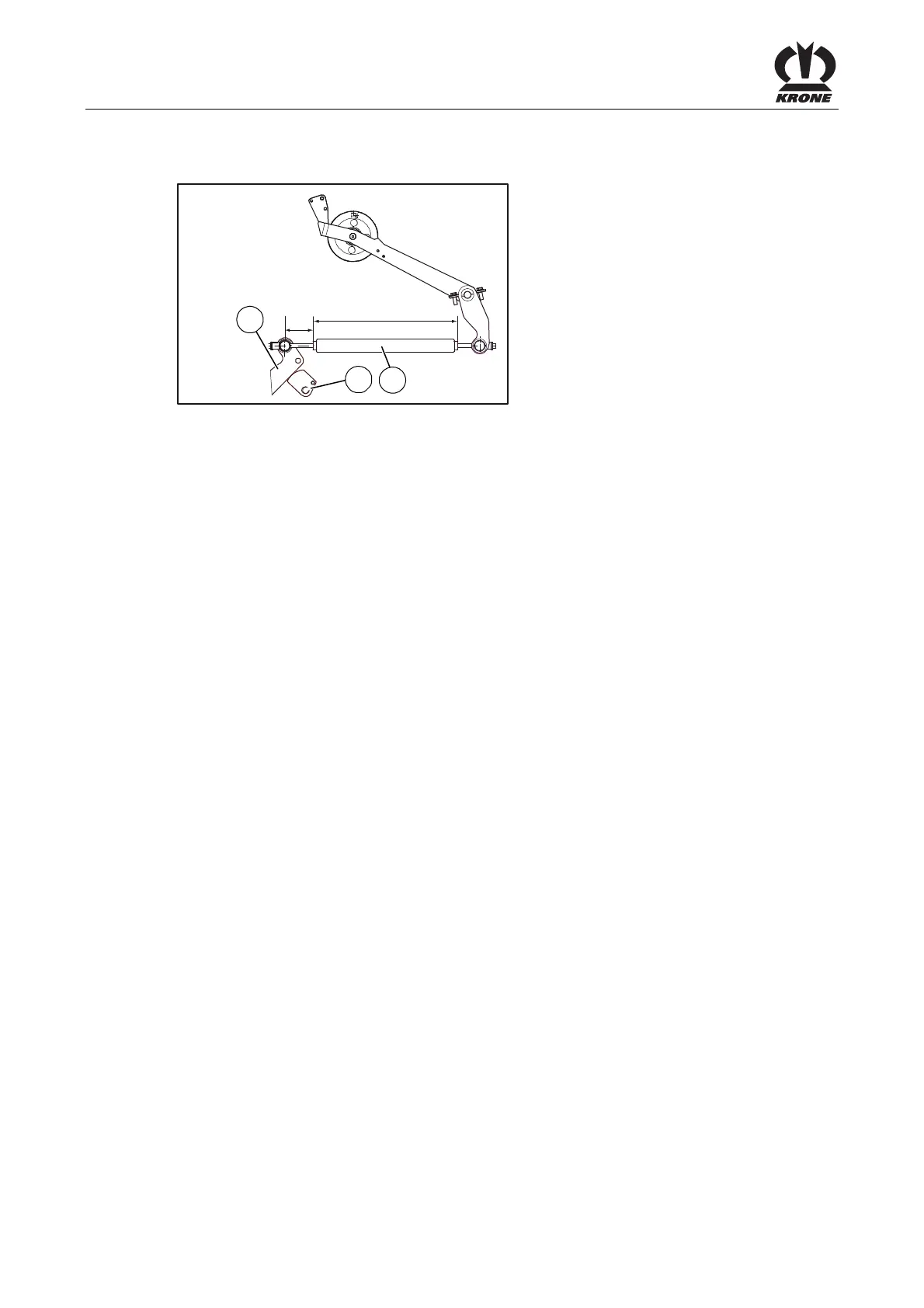

Pos: 55.151 /BA/Bedienu ng /Rundballenpresse/ Bild Rollbodenvor spannung @ 137\mod_1353 407640178_78.doc x @ 1216679 @ @ 1
COM00211_1
2
X
3
1
Z
Fig. 190
Pos: 55.152 /Abkürzu ngen /Abkürzungen sprac hneutral/Rundbal lenpressen/Compri ma CV 150 XC (fett) @ 83\mod_1317 819279881_78.doc x @ 731653 @ @ 1
Comprima CV 150 XC
Pos: 55.153 /BA/Bedienu ng /Rundballenpresse/ Einstellung Feder Rollbodenspannung_C V 150 XC @ 199\mod_1384929368 384_0.docx @ 1675495 @ @ 1
X = 130 mm
Z = 690 mm
Pos: 55.154 /Abkürzu ngen /Abkürzungen sprac hneutral/Rundbal lenpressen/Compri ma CV 210 XC @ 140\mod_1355302382 014_0.docx @ 1248291 @ @ 1
Comprima CV 210 XC
Pos: 55.155 /BA/Bedienu ng /Rundballenpresse/ Einstellung Feder Rollbodenspannung_C V 210 XC @ 199\mod_1384929571 373_0.docx @ 1675553 @ @ 1
X = 115 mm
Z = 540 mm
