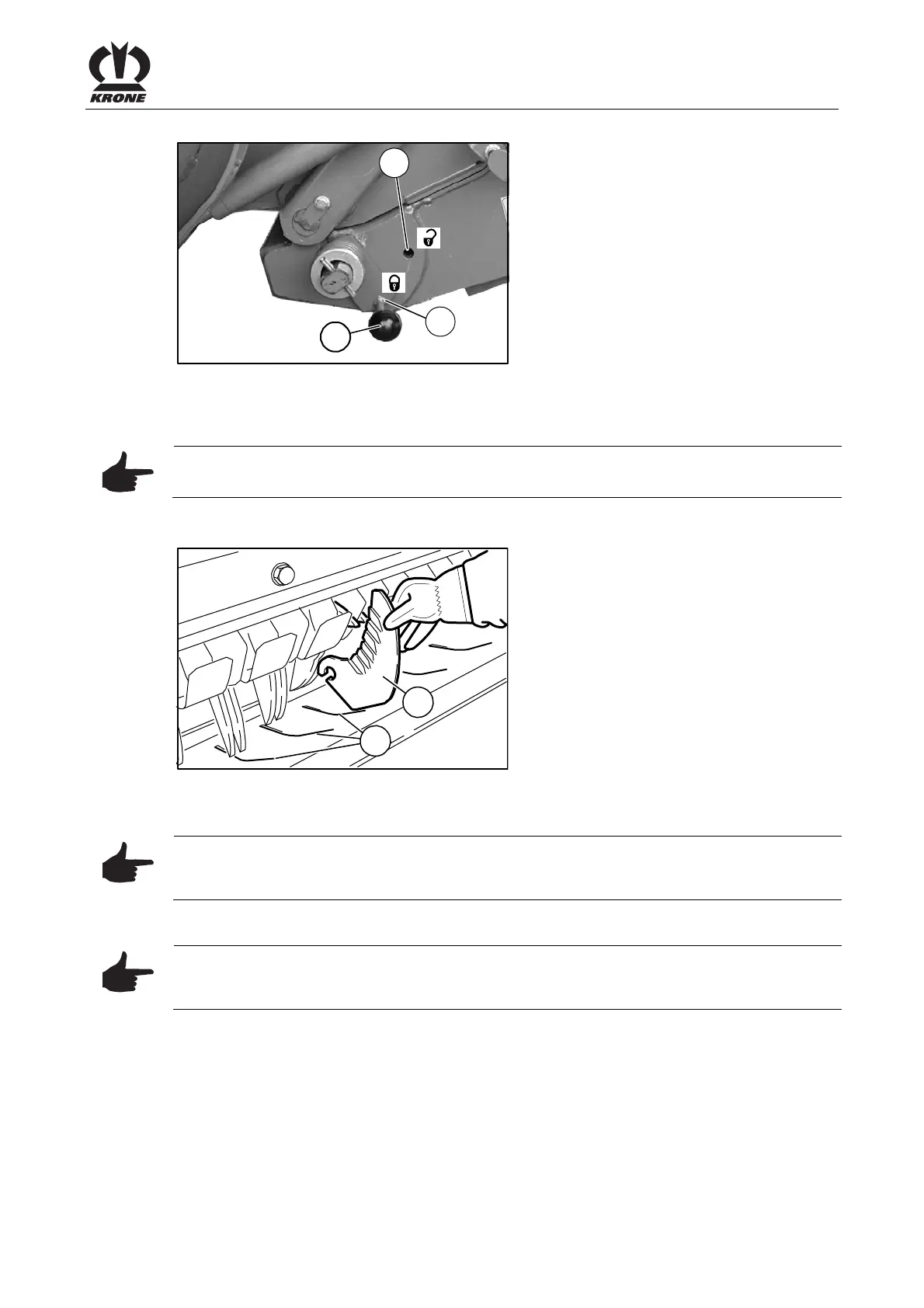

Unlocking the Blade Shaft
1
b
a
RPN00015_1
Abb. 172
• Unlock blade shaft:
Pull the locking bolt (1) out of position (a) and allow it to engage in position (b)
Note
The supplied key can also be used for locking/ unlocking the blade shaft.
Pos: 55.89.25 /BA/Ei nstellungen/Schnei dwerk/Messer wechse ln CF/CV @ 231\mod_1393413 681197_78.docx @ 184780 6 @ @ 1
Changing Blades
KRS-1-015_1
1
2
Abb. 173
• Remove the blades (1)
Note
When inserting the blades (1), ensure that they are located correctly on the blade shaft and
centred in the slot (2).
• Insert a new or a ground blade (1)
Note
Before the cutter base is raised, check if all blades (1) form a straight line and if they are thus
correctly installed.
