M01 Net setting motor

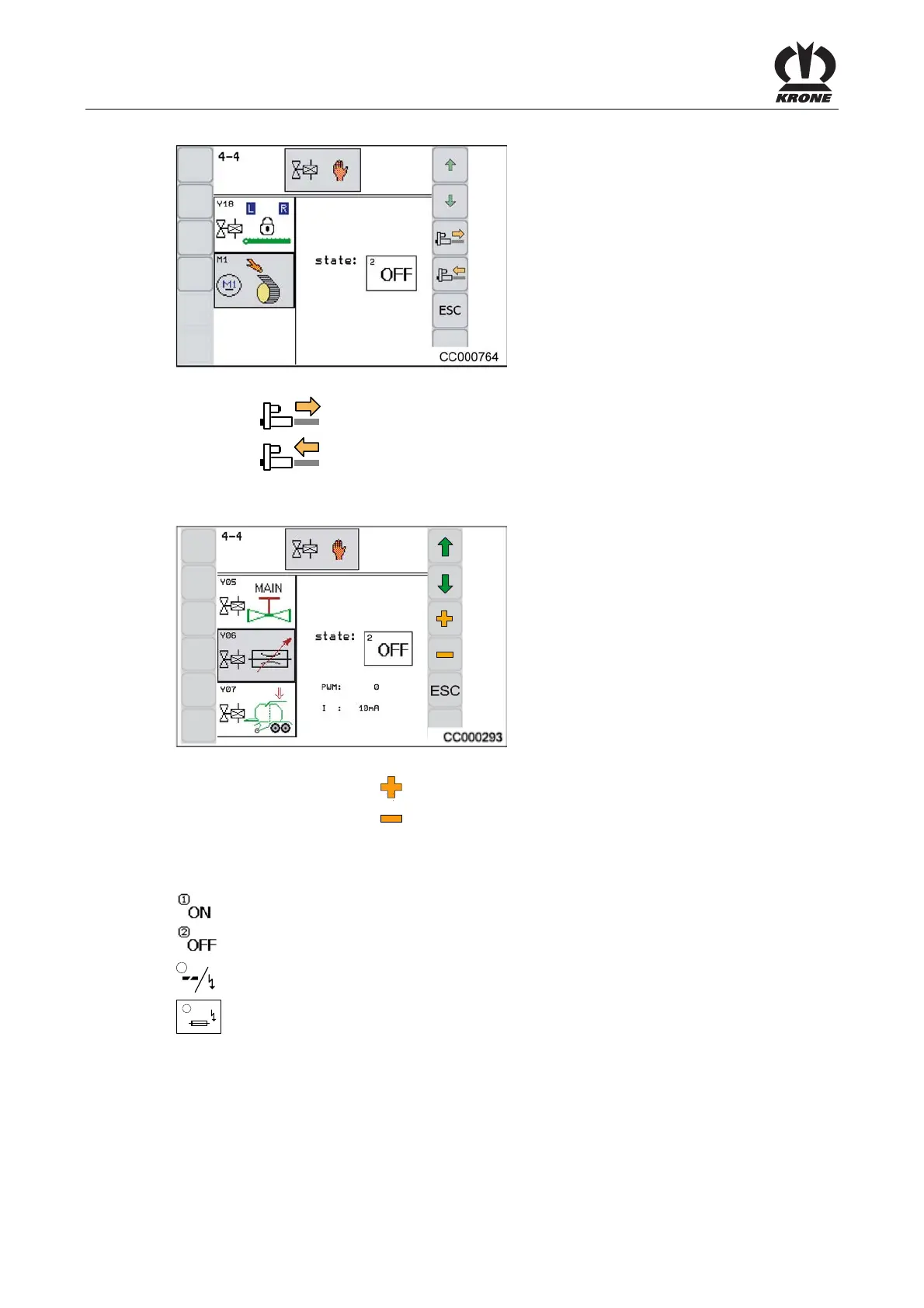

Fig. 129
• Softkey
moves the engine out. The function is contact only.
• Softkey
moves the engine in. The function is contact only.
Pos: 48.172 /BA/Inf o-Center/CCI-I SOBUS-Terminal/CCI- Press-Wickelvorric htung/Hauptmenüs/ Hauptmenü 4 Service/Regel ventil Wickelar m @ 166\mod_1367245893328_78. docx @ 1443166 @ @ 1
Y06 Wrapping arm control valve
Fig. 130
• Press the function button
to activate the control valve so that the flow rate increases.
• Press the function button
to activate the control valve so that the flow rate reduces.
The current electrical current is shown under the status display (if measured).
Pos: 48.173 /BA/Inf o-Center/Sensoren/S tatusanzeigen/St atusanzeigen digita le Aktoren Version (1, 2,3,4) @ 53\mod_128998776 1437_78.docx @ 507785 @ @ 1
State:
Actuator on
Actuator off
3
General actuator error
4
FUSE
No power supply; fuse is probably defective
