Maintenance
282
Pos: 59.27 /Übersc hriften/hintere Masc hinenseite @ 75\mod_13093 52339714_78.doc x @ 662529 @ @ 1
Rear Side of Machine
Pos: 59.28 /BA/W artung/Rundballenpres se/Lage der Sensoren hin ten CF/CV @ 200\mod_13854544 60445_78.docx @ 1683201 @ @ 1
CPN00014_2
23
7
8
6
1
5
4

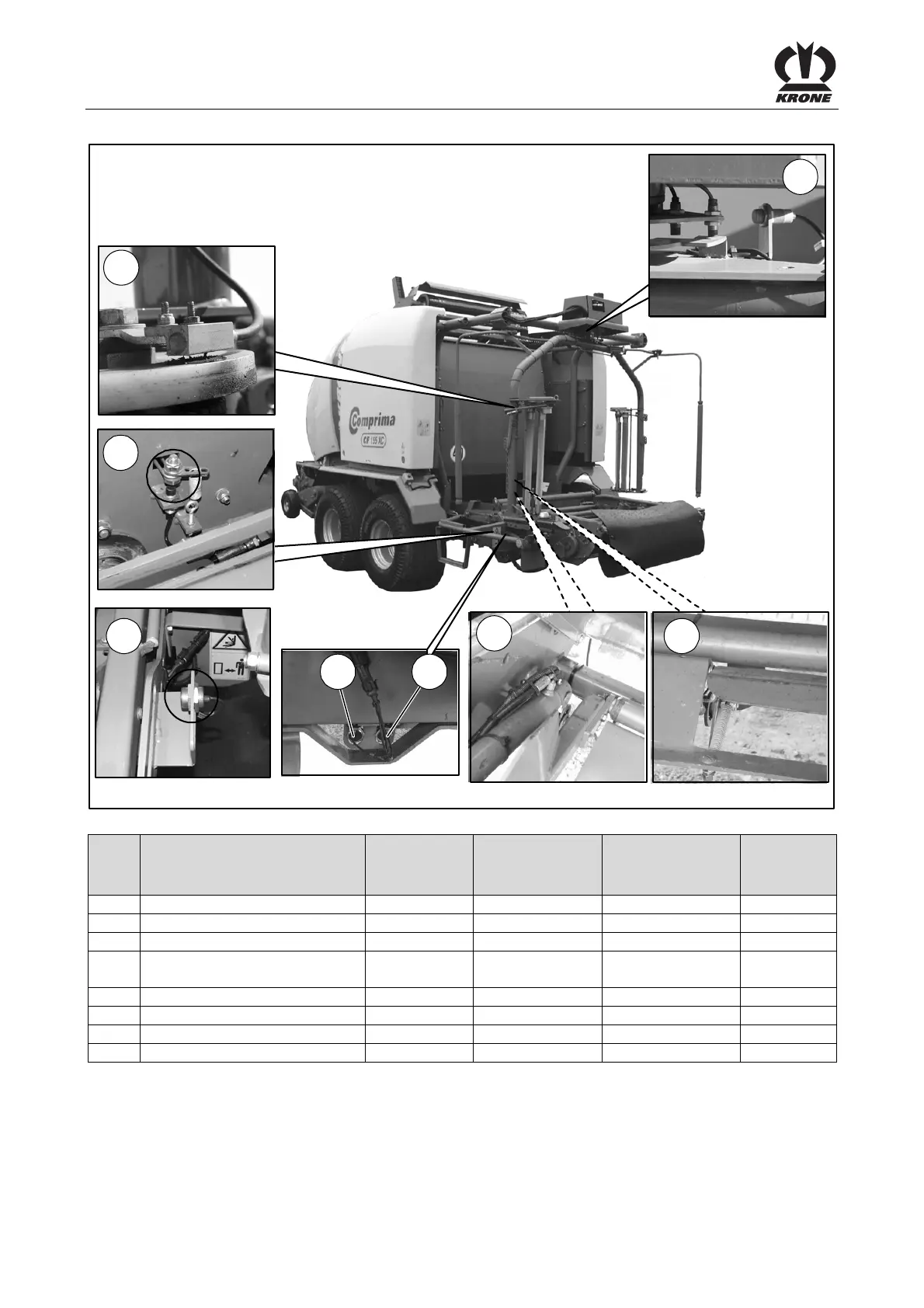

Fig. 220
Pos. Sensor designation
Distance
Transmitter-
Sensor
Operating
terminal
CCI
Sensor type
Tightening
torque
1 Bale on swivel table left (B16) 2 mm X Namur 10 Nm
2 Swivel table centre (B18) 4 mm X Namur 10 Nm
3 Swivel table front (B19) 4 mm X Namur 10 Nm
4 Position of the wrapping arm /
zero position (B21/B20)
2 mm X Namur 10 Nm
5a Holding arm left (B22) 4 mm X Namur 10 Nm
6 Sheet tear control (B24)
7 Lifter front (CF155 XC) 4 mm X Namur 10 Nm
8 Bale on lifter (CF155 XC) 4 mm X Namur 10 Nm
