REV 0, June 2005 Page 163
Operation Manual SUPREMA
6. Startup
Digital Outputs
In this listing, the possible LOGICAL outputs (0–511) are assigned to the – by MGO cards
inserted – PHYSICAL outputs (1–512). Basically, the assignment in this map can be arbitrary.
We recommend the standard assignment
(see figure 6-2 Digital output map listing) to avoid
problems on system configuration/test.
Channel Number
In this column, the numbers of possible physical outputs (0519) are listed. Up to 13 MGO cards
each with 40 outputs (13 x 40 = 520) can be connected to the system (Rack 1 to Rack 8). The
outputs 1–512 (Numbering 0–511 in the listing) can be used for configuration.
Digital Output Number
The “logical” numbers are entered which are selected as “Digital Output” on the parameter
setting. The output numbers may be assigned freely. . We recommend the standard assignment
(see figure 6-2 Digital output map listing) to avoid problems on configuration. The number of
digital outputs depends on the components of the MGO-10 modules and must always correspond
(40 outputs/MGO max.).
Example:
SUPREMA System with a MGO-10 module has to be configured with 24 outputs.

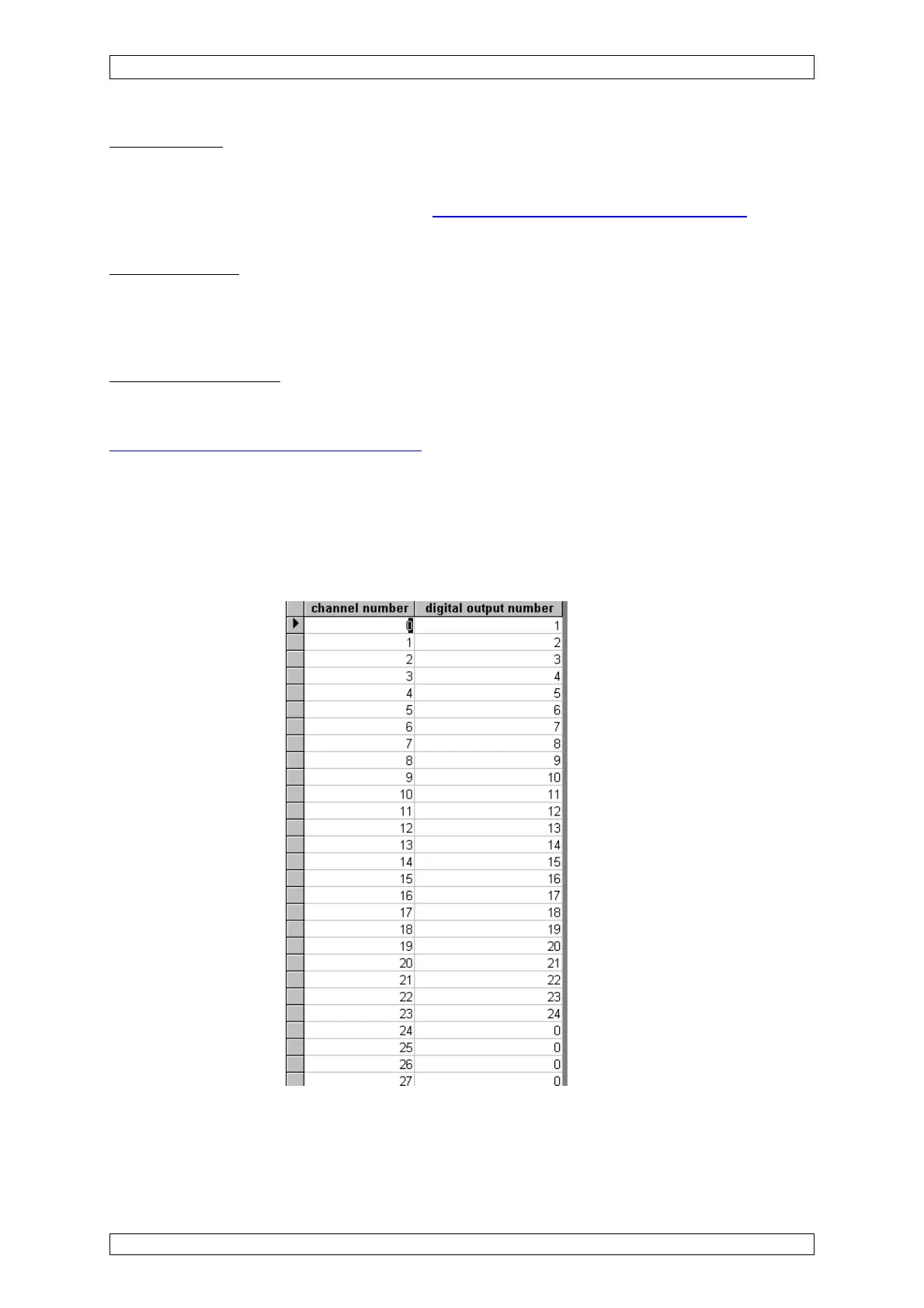

View of the“digital output map” listing:
Figure 6-2: “Digital output map” listing
All digital outputs which are not needed are set to “0” (Zero) in the field “Digital Output Number”.
