REV 0, June 2005Page 72
Operation Manual SUPREMA
4. Operation of the System

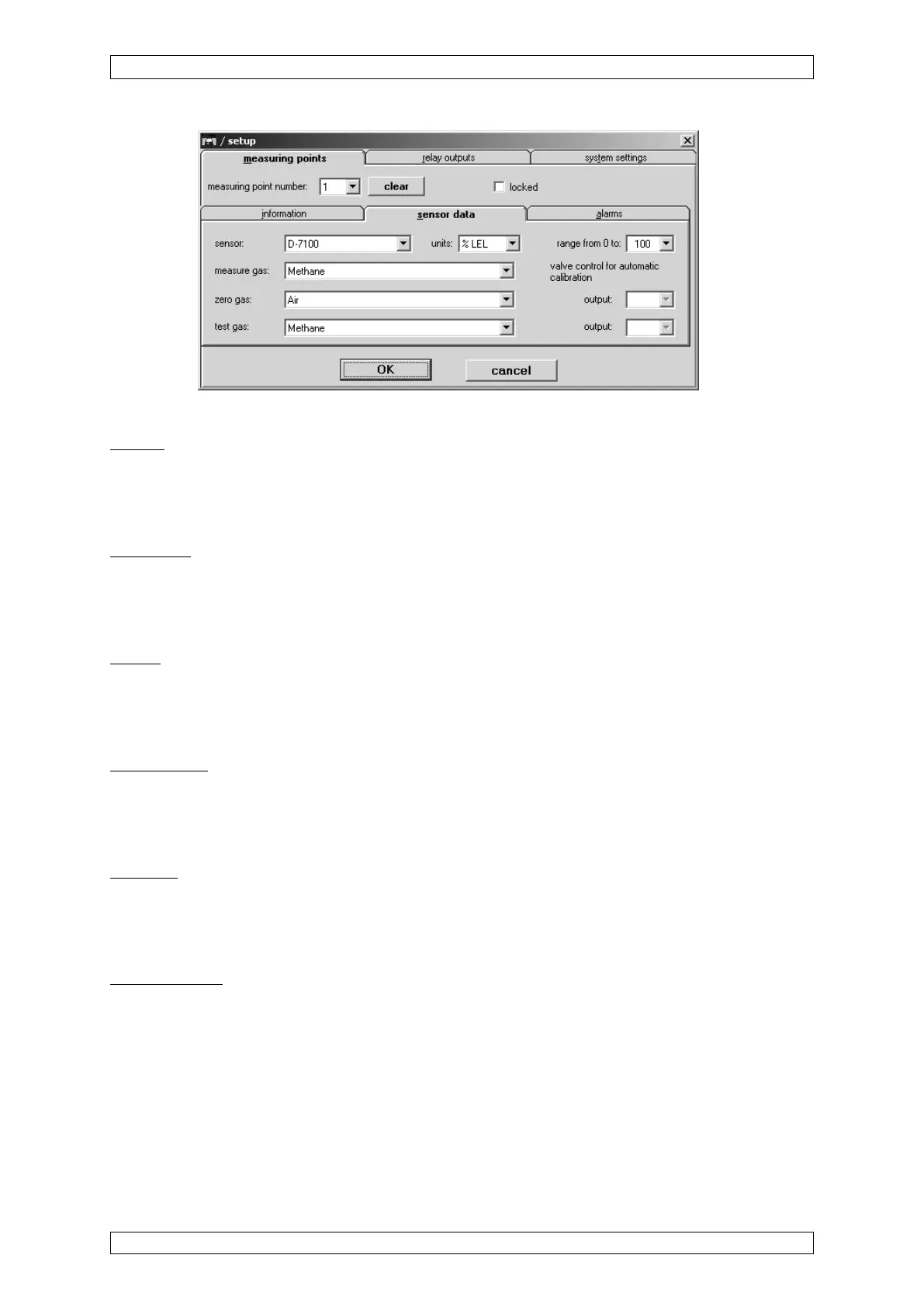

Figure 4-24: “Sensor data” submenu
Sensor
Field type: Selection
The field contains a list of recognized sensor types. Set the type of sensor used for the selected
input.
Dimension
Field type: Selection
The field contains a list of units in which gases can be measured. Set the unit of measurement
at the selected input.
Range
Field type: Selection
The field contains a list if measurement ranges appropriate for the sensors. Set the measurement
range that applies to the sensor for the selected input.
Measure gas
Field type: Selection
The field contains a list of gases that can be measured with the recognised sensors. Set the
measure gas that will be measured with the sensor at the selected input.
Zero gas
Field type: Selection
The field contains a list of ‘Zero gases’ that are used to calibrate sensors. Set the zero gas that
will be used to calibrate the sensor at the selected input.
Reference gas
Field type: Selection
The field contains a list of ‘Reference gases’ used to calibrate sensors. Set the reference gas
that will be used to calibrate the sensor at the selected input.
“Alarms” submenu
In the “Alarms” submenu, parameters can be set for up to four alarm levels for the selected
input. A limit value can be set for each alarm to trigger either on a rising or falling input signal. In
addition, relay outputs can be selected to operate if an alarm occurs.
