REV 0, June 2005 Page 213
Operation Manual SUPREMA
9. Connection of Peripherals
9.2 Protocol Printer
For the continuous recording of events, a protocol printer can be connected to the RS 232-B
port on the MST module. The MST module is mounted on the rear of the rack, to the right on
the outside.

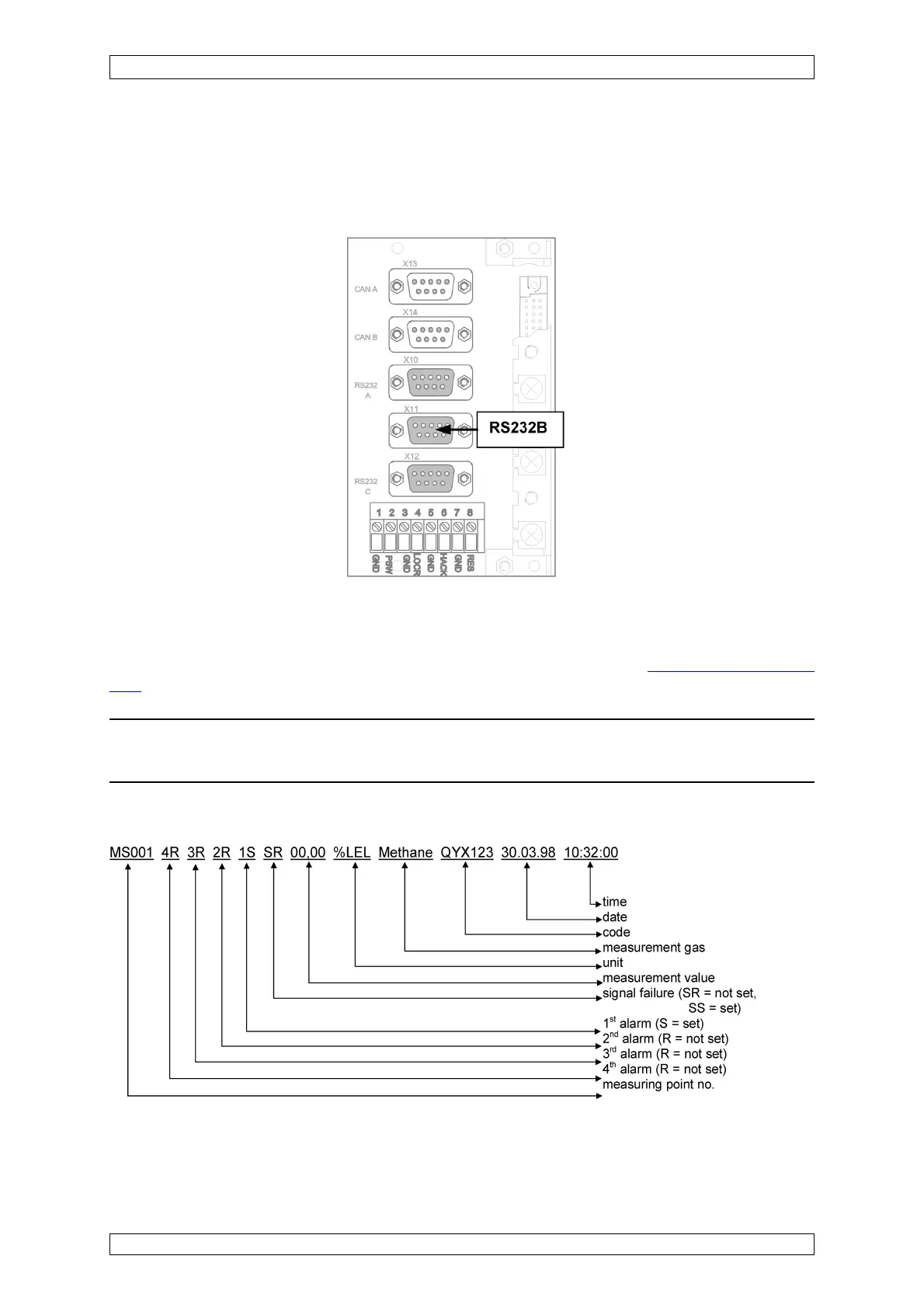

Figure 9-3: MST module, RS 232-B port
The terminal assignment of the RS232-B connection is described in section 5.10.3 Printer
Port.
Connecting cable: RS 232 extension (no null modem cable)
RS 232 configuration: 19200 baud, 8 data bits, 1 stop bit, no parity
When a signal event occurs (alarm, error), the following single line of information is sent via
this port to the connected printer:
Figure 9-4: Protocol printer, Data Structure
