REV 0, June 2005Page 326
Operation Manual SUPREMA
12. Sensor Data Sheets

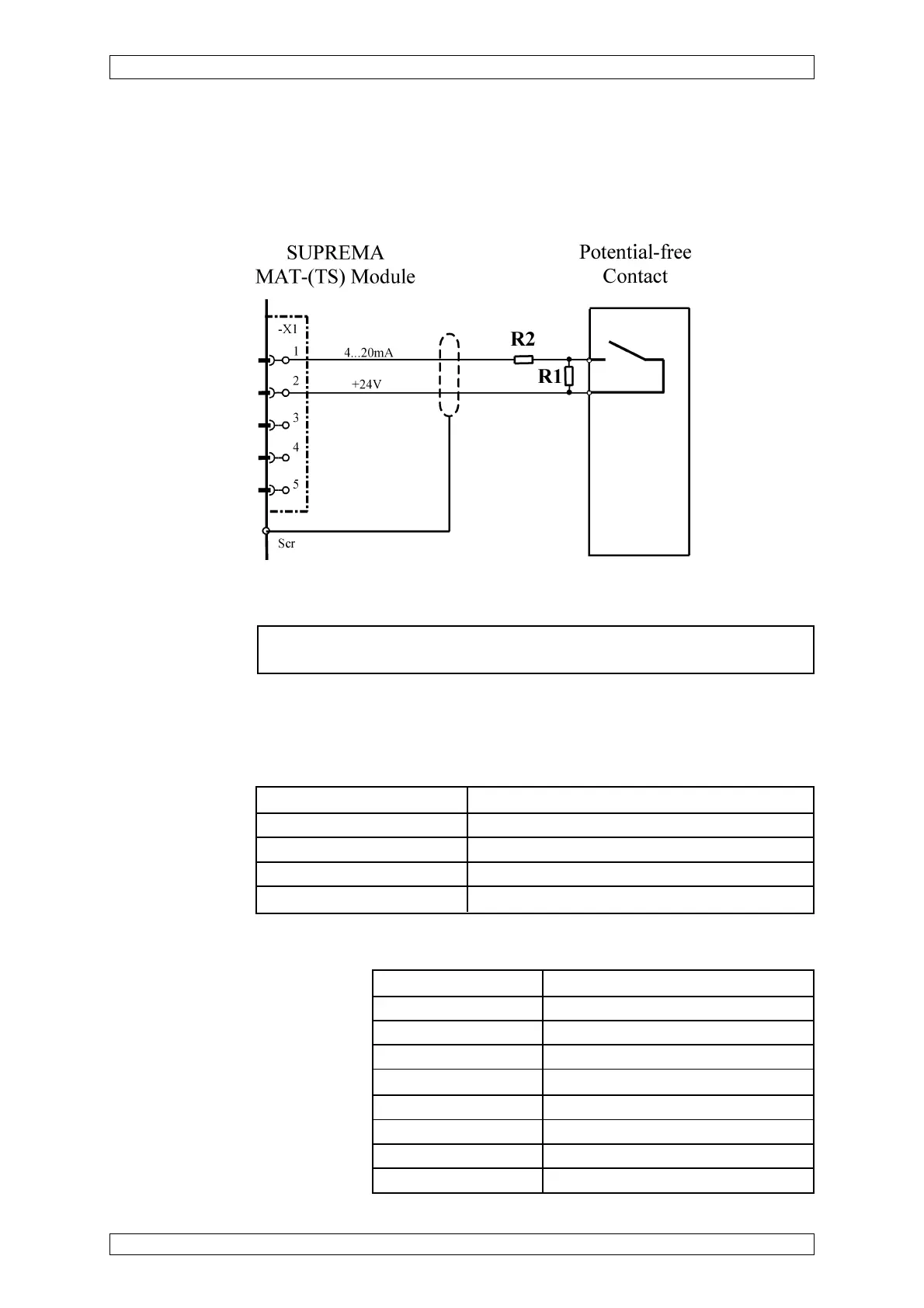

12.39 SUPREMA Sensor Data Sheet Contact
Connection: potential-free contact
Connection module: MCI 10 (BR101 and BR102 open) Standard configuration
(passive/2-wire/4 ... 20 mA/current supply)
Sensor
simulation module: 4 ... 20 mA (Order No.: 10030262)
Ohms resistors to generate an input current: R1 = 2.7 kΩ (0.5 W)
R2 = 1.8 kΩ (0.5 W)
Connection data: Cable type 2-core, 80 % screened
Maximum cable length 1000 m (at 1.5 mm
2
cross section per wire)
Cable diameter 8 ... 12 mm
Cross section per wire allowed 0.75 ... 2.5 mm
2
Min. contact closure time 2 seconds
Configuration Menu:
Settings/Measuring points/Sensor data Sensor Pressure button
Measuring range 0 ... 100
Unity Units any
Settings/Measuring points/Alarms 1
th
alarm/level 30.00
Above alarm level Alarm contact is shut
Below alarm level Alarm contact is opened
Latching Alarm latching
2
nd
to 4
th
alarm deactivated
2
nd
to 4
th
level deactivated
