MSA SUPREMA - Configuration of the MSI Module; Figure 5-19: View of the MSI Module

REV 0, June 2005 Page 113
Operation Manual SUPREMA
5. Installation
5.3.19 Configuration of the MSI Module
S101 Code Switch
Configuration in the SUPREMA menu
Settings/Measure points/Sensor data
Settings/Measure points/Alarms

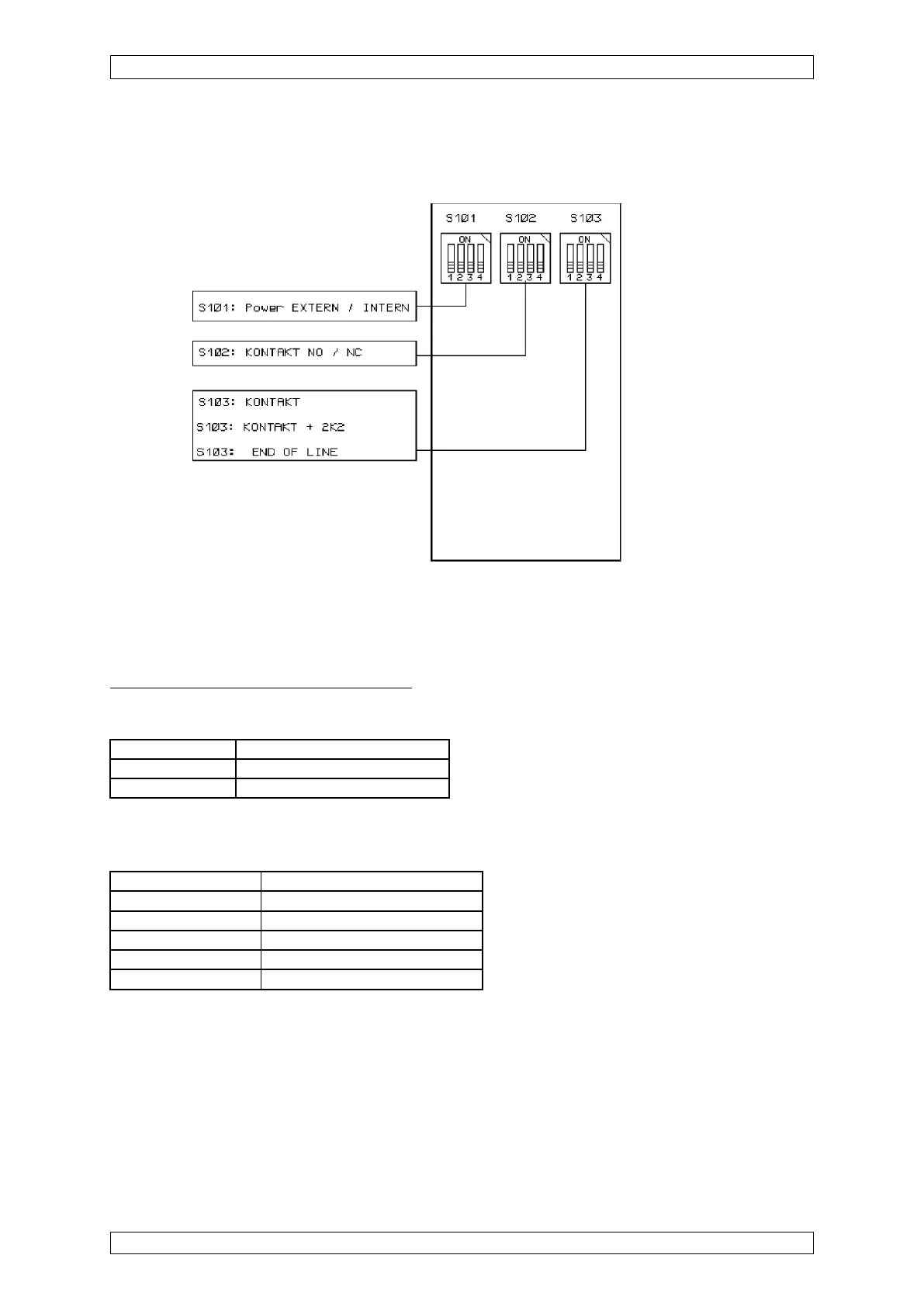

Figure 5-19: View of the MSI Module
1st alarm/level 30.00
Above alarm level Alarm contact shut
Below alarm level Alarm contact open
Latching Alarm latching
2nd to 4th alarm de-activated
2nd to 4th level de-activated
Sensor MSI
Measuring range 0 ... 100
Units any
